SunGold Power 12KW 48V All-in-one Hybrid Solar Inverter | Whole Home Backup (200A)

SunGold Power 12KW 48V All-in-One Hybrid Solar Inverter Delivers Whole-Home Backup Power for True Energy Independence

Power outages are more than an inconvenience they're a wake-up call. Whether it's a storm knocking out the grid for days, rising utility rates eating into your budget, or simply the desire to stop depending on an infrastructure you can't control, the answer is the same: you need a smarter, more capable energy system. The SunGold Power 12KW 48V All-in-One Hybrid Solar Inverter (SGS-12K18MAX) is that system a single, integrated unit that combines solar input, battery storage, and grid or generator power into one compact, intelligently managed package.

This isn't a starter inverter for a shed or a camper van. This is a serious, whole-home-grade hybrid inverter designed for homeowners, farms, small businesses, and off-grid properties with high energy demands. It handles the heavy hitters HVAC systems, refrigerators, water pumps, power tools, and sensitive electronics without breaking a sweat. And because it's built on an all-in-one platform with a built-in MPPT solar charge controller, battery charger, and transfer switch, you get everything you need in one elegant package instead of a tangle of separate components and mismatched wiring. If you've been comparing your options and wondering whether a 12kW hybrid inverter is the right investment, the honest answer is this: if you want real whole-home backup and serious solar performance, it's hard to argue with a system that covers every base this thoroughly.

At Outbound Power, we specialize in portable and backup power solutions for homeowners, RVers, off-grid adventurers, and mobile businesses and we've seen firsthand what a difference the right inverter makes. The SunGold Power 12KW 48V All-in-One Hybrid Solar Inverter is one of the most capable, well-certified, and comprehensively featured systems available at its price point, and it's the kind of long-term investment that pays for itself in energy savings, reliability, and peace of mind for years to come.



SunGold Power 12KW 48V Features

One Unit Does the Job of Three Separate Devices

This inverter combines a solar charge controller, battery charger, and transfer switch into one box. No extra wiring, no mismatched parts just a clean, simple setup that saves you time, money, and a lot of headaches.

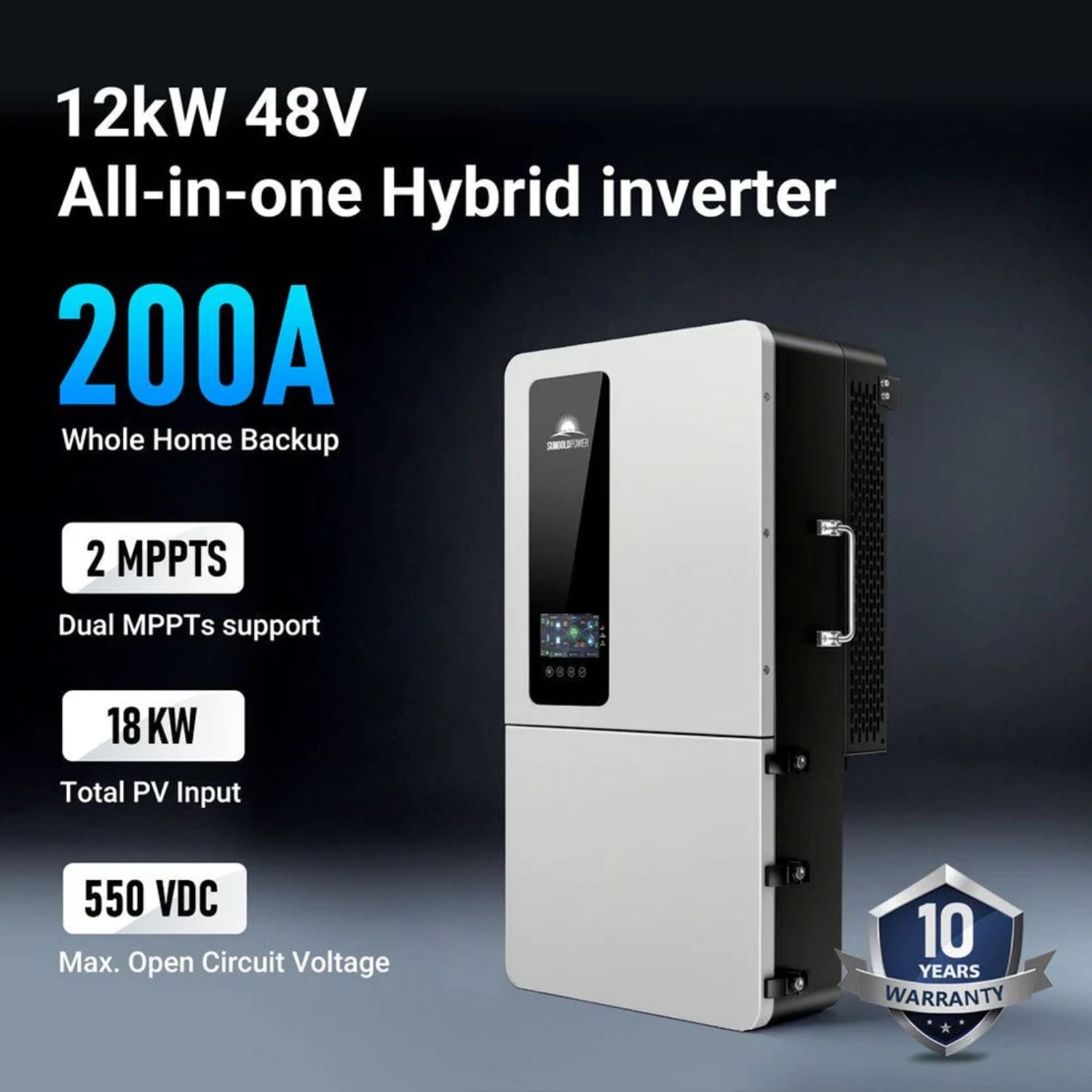

Your Whole Home Stays On When the Grid Goes Down

With a 200A pass-through, every circuit in your home keeps running during a power outage not just a few. Lights, fridge, AC, and appliances all stay powered without you lifting a finger.

It Pulls in More Solar Power Than Most Systems Can Handle

Each unit accepts up to 18kW of solar input through dual MPPT controllers. That means faster battery charging, more energy harvested daily, and fewer cloudy days that actually hurt your production numbers.

Clean Power Protects Every Device Plugged Into Your Home

The pure sine wave output delivers stable, grid-quality electricity. Sensitive electronics, medical equipment, and inverter-driven appliances all run safely without risk of damage from dirty or unstable power waves.

Add More Units Later as Your Energy Needs Grow

Stack up to six units in parallel for a combined 72kW of power. Whether you're expanding a home, running a farm, or scaling a business, your system grows with you — no starting over.

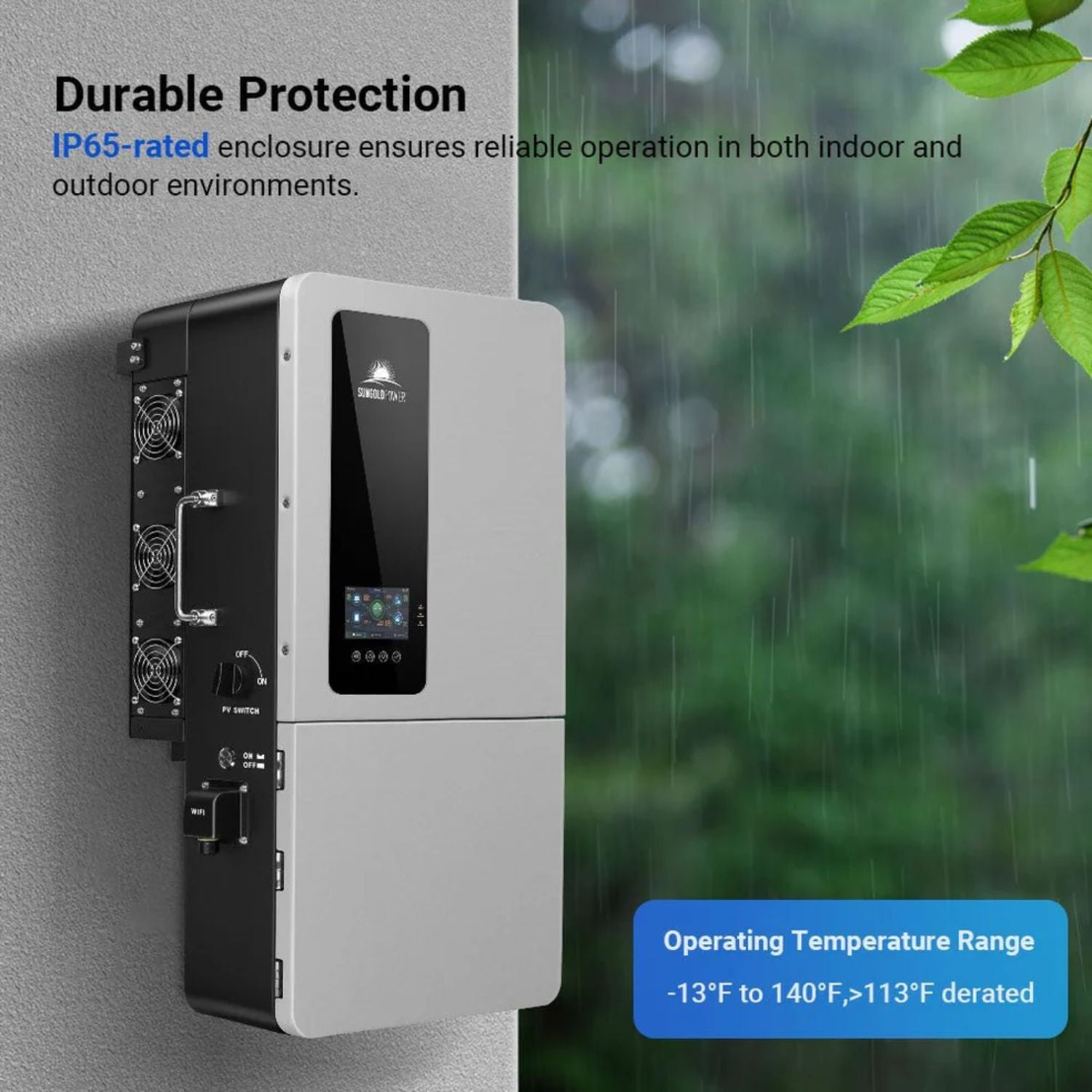

Works Outside Without Worry Thanks to Weatherproof Design

The IP65 rating means rain, dust, and humidity won't damage the unit. Install it indoors or outdoors, in a garage, shed, or mounted on an exterior wall it handles real-world conditions.

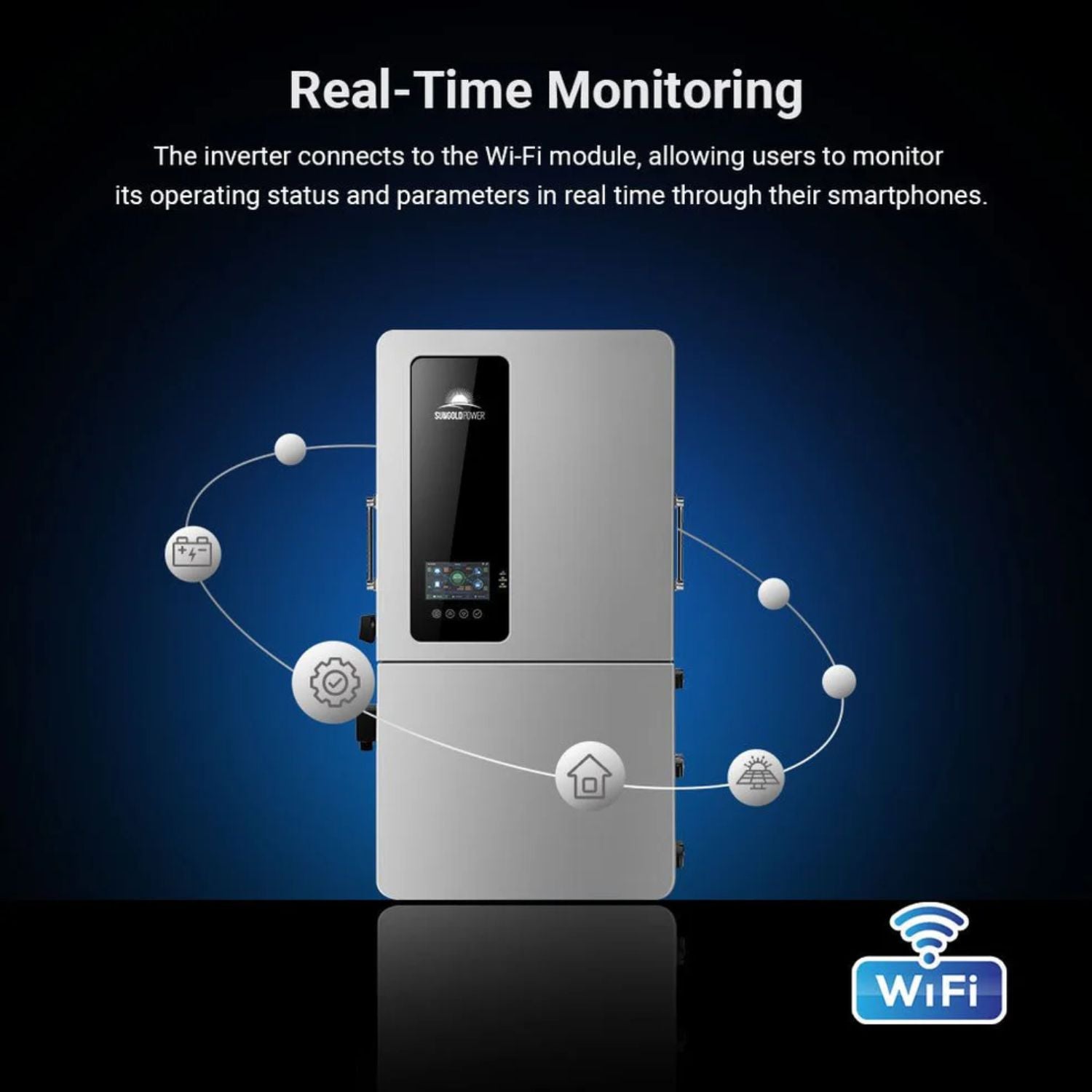

Check Your Energy System From Anywhere Using Your Phone

Built-in Wi-Fi and GPRS let you monitor solar production, battery levels, and system status remotely. No need to check the unit in person everything you need is right on your screen.



SunGold Power 12KW 48V Warranty

SunGold provides a limited warranty policy, ensuring the absence of defects in materials, workmanship, and performance during the warranty period.

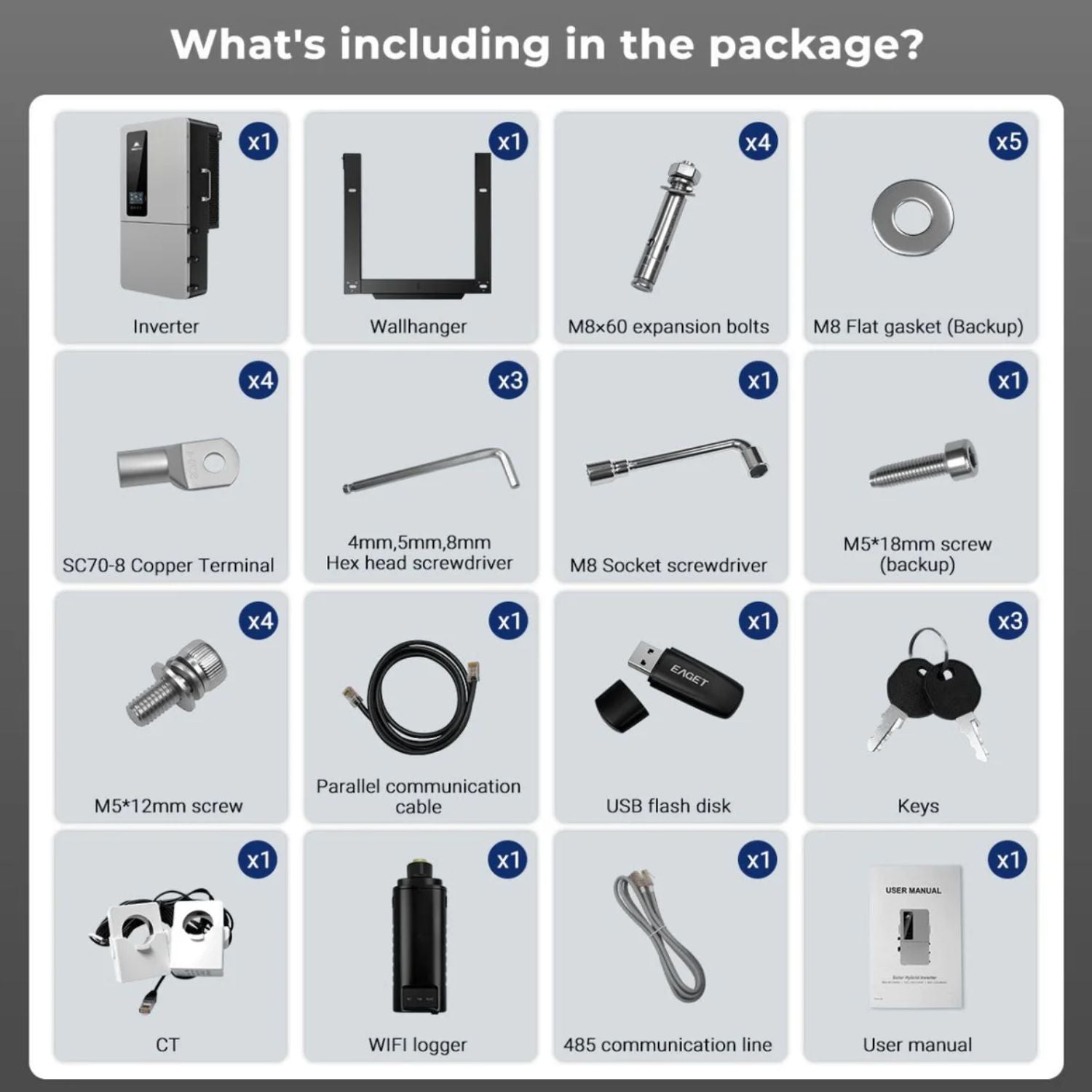

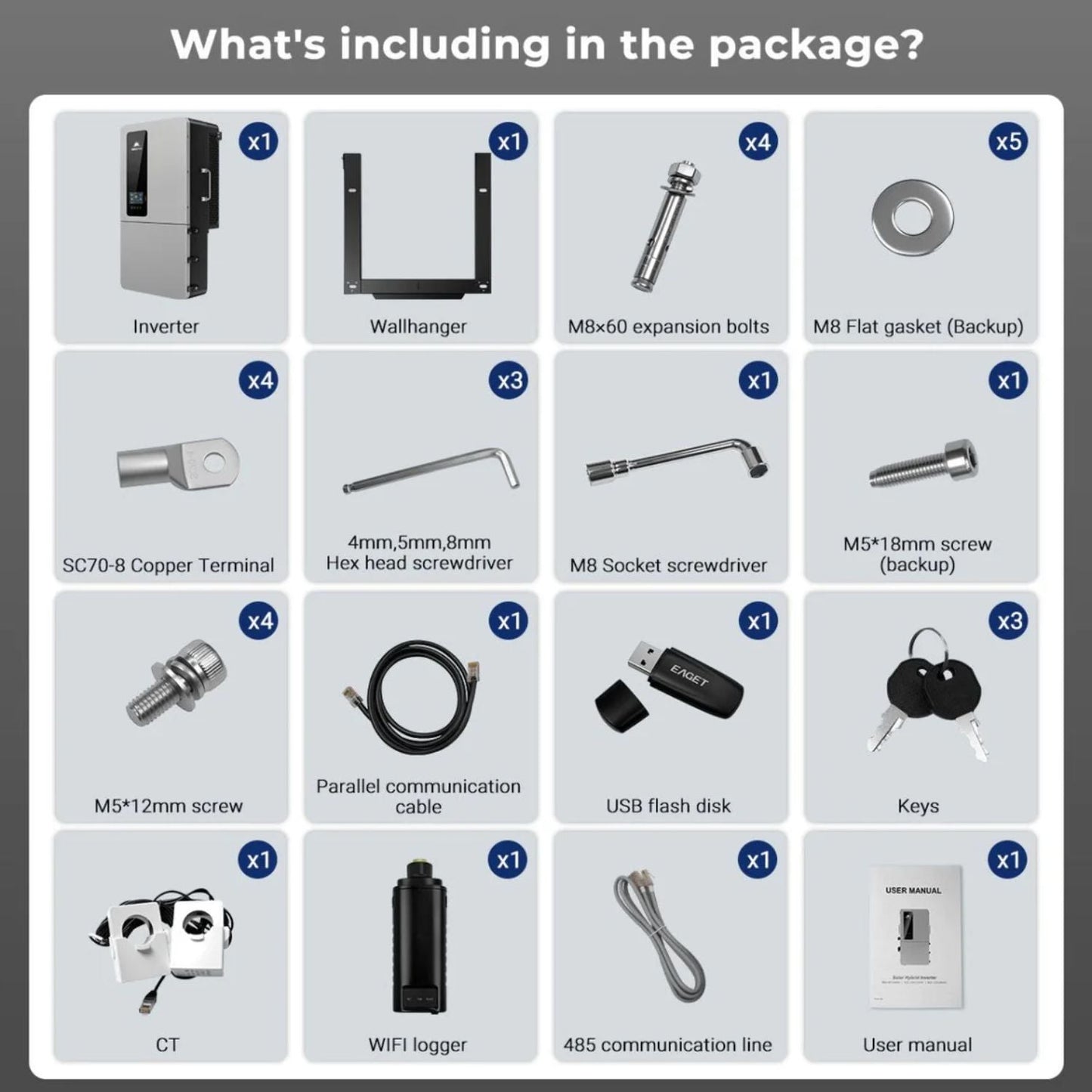

What's Included

• 1 x SunGold Power 12KW 48V All-in-one Hybrid Solar inverter
• 1 x Wall Hanger
• 4 x m8x60 expansion bolts
• 5 x M8 Flat Gasket (Back up)
• 4 x SC70-8 Copper Terminal
• 3 x 4mm,5mm,8mm Hex Head Screwdriver
• 1 x M8 Socket ScrewDriver
• 1 x M5*18mm screw(backup)
• 4 x M5*12mm screw
• 1 x Parallel Communication Cable
• 1 x USB Flash Disk
• 3 x Keys
• 1 x CT
• 1 x WIFI Logger
• 1 x 485 Communication Line
• 1 x User Manual

SunGold Power 12KW 48V Specifications
Product Model	SGS-12K18MAX
Output
Rated Output Power	12,000W @240V / 10,400W @208V
Max Peak Power	1.5× rated power (10s)
Rated Output Voltage	120/240VAC (Split-phase), 120/208VAC (Three-phase)
Output Voltage Error	50A
Load Motor Capacity	6HP
Rated AC Frequency	50 / 60Hz
Waveform	Pure Sine Wave
Parallel Capacity	Up to 6 units
Battery

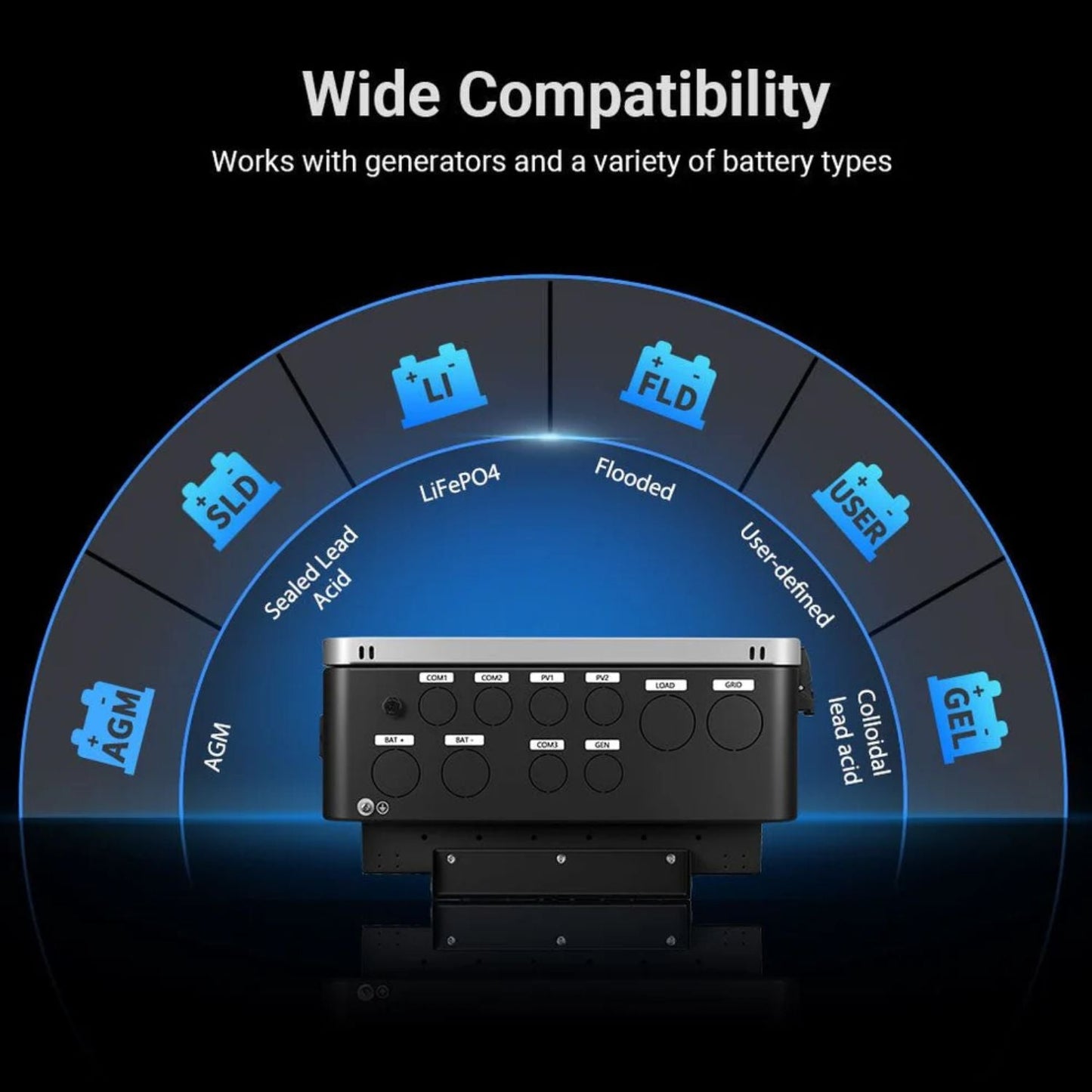

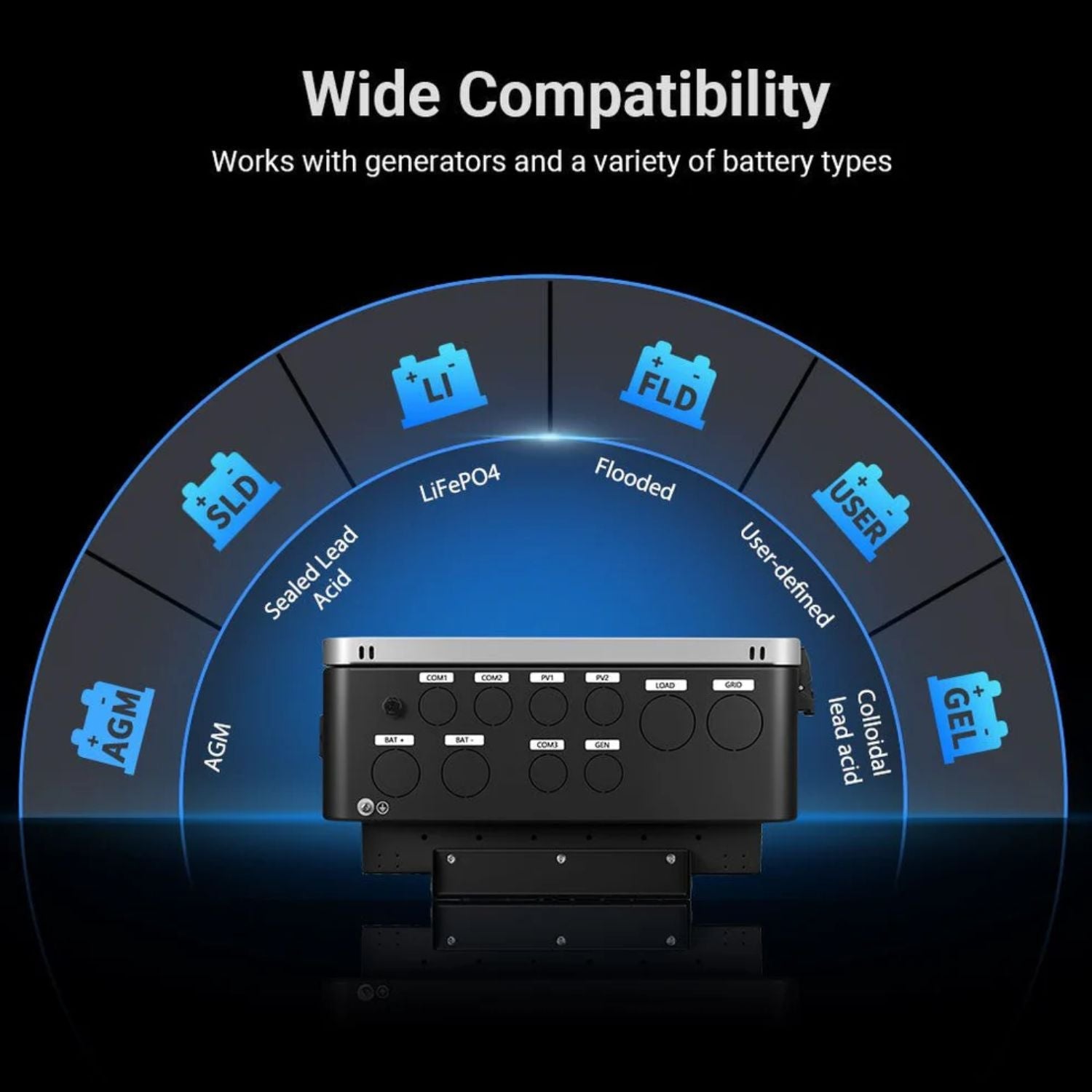

Battery Type	Li-ion / Lead-Acid / User Defined
Rated Battery Voltage	48V DC
Voltage Range	40–60V DC
Max Grid Charging Current	200A
Max Generator Charging Current	200A
Max Hybrid Charging Current	240A
PV Input
Number of MPPT Trackers	2
Max PV Array Power	9000W / 9000W
Max Input Current	32A / 32A
Short Circuit Current (Isc)	40A / 40A
Max Open Circuit Voltage	550V DC / 550V DC
MPPT Voltage Range	125–450V DC / 125–450V DC
MPPT Tracking Efficiency	99.9%
Grid / Generator Input
Input Voltage Range	90–140VAC
Frequency Range	50 / 60Hz
Continuous Grid Passthrough Current	200A
Protection
Protection Features	Reverse polarity protection, DC switch rating per MPPT, Output over-voltage protection
Safety Systems	Varistor, Overcurrent protection, Ground fault monitoring, Grid monitoring
Advanced Protection	Pole-sensitive leakage monitoring, AFCI, RSD
Interface
Communication Port	RS485 / CAN / USB / Dry Contact
External Modules (Optional)	Wi-Fi / GPRS
General Data

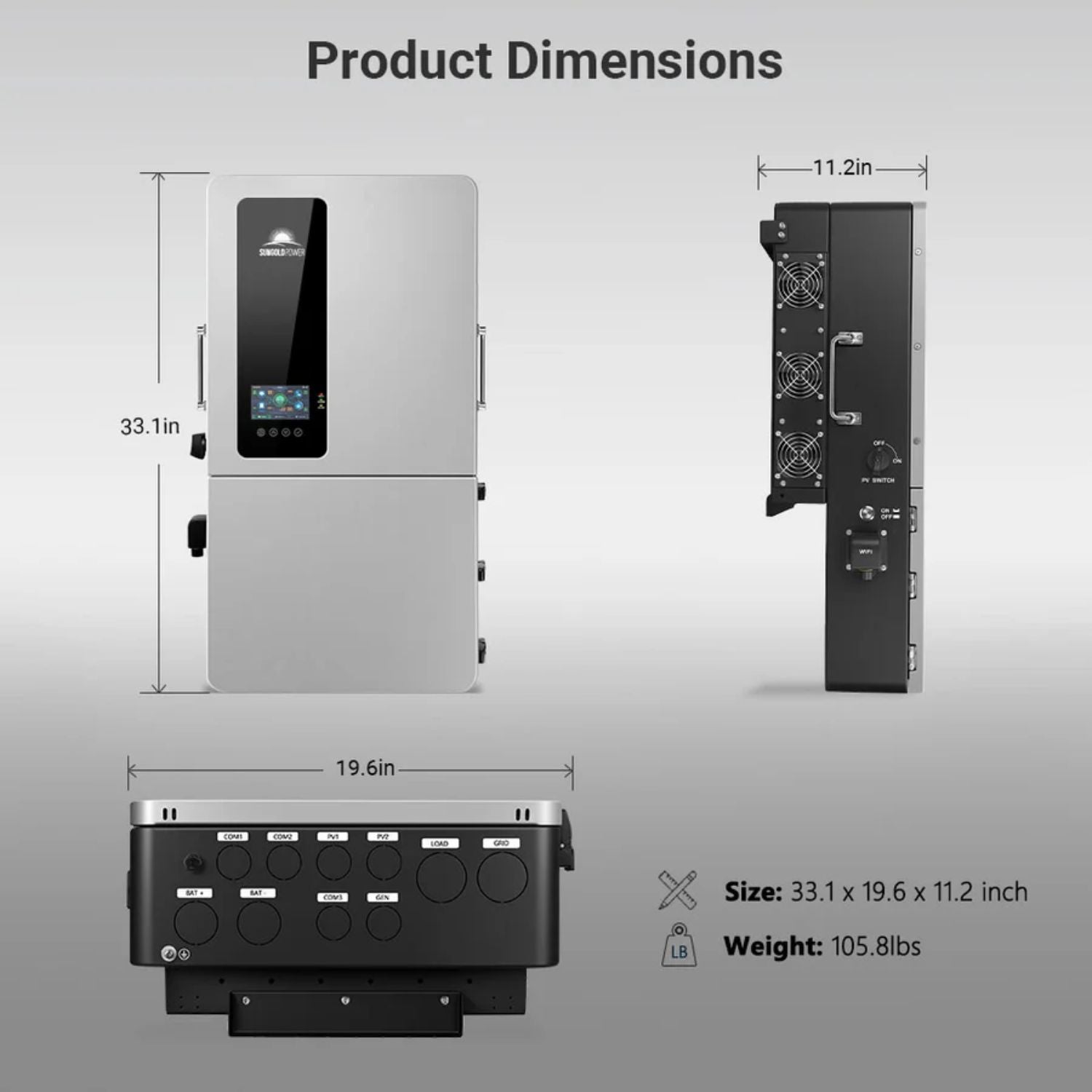

Dimensions	33.07 × 17.32 × 10.24 in (840 × 440 × 260 mm)
Weight	105.82 lbs (48 kg)
Protection Degree	IP65
Operating Temperature	-25°C to 60°C (derating above 45°C)
Noise Level	<60 dB
Self-Consumption	<100W
Cooling Method	Heat sink + intelligent fan cooling
Certifications
Safety Standards	UL1741, IEEE1547.1-2020, CEC, Rule 21, HECO (CEC Listed)
EMC	FCC Part 15 Class B
RoHS Compliance	Yes
