Product Details
RUiXU Lithi2-16 Lithium Battery + EG4 Inverter Bundle
The RUiXU Lithi2-16 pairs perfectly with a range of EG4 inverter options, giving you the flexibility to build a power solution tailored to your specific needs. Whether you’re looking for a compact off-grid system or a robust hybrid setup with grid-tie capability, these bundles deliver dependable energy storage and conversion for residential and light commercial use.
Choose from five inverter options: the EG4 6000XP Off-Grid Inverter for smaller off-grid systems, the EG4 12000XP Off-Grid Inverter for higher-capacity off-grid setups, or one of three hybrid options—FlexBOSS18, FlexBOSS21, or 18kPV—that provide advanced grid-tied operation, battery backup, and scalable power management. Each inverter has unique strengths, allowing you to match your budget and application while maximizing the performance of the RUiXU Lithi2-16. With these bundles, you get a complete, ready-to-integrate solution designed to ensure reliable power and peace of mind.
RUiXU Lithi2-16 Specs
- Nominal voltage: 51.2V
- Nominal capacity @ 0.2C: 314 Ah
- Min. capacity @ 0.2C: 314 Ah
- Nominal energy: 16.07kWh
- Dimesion w/ Wheels: (HxWxD) 36.3" x 21.3" x 10"
- Weight: ~320lb
- Cycle life @ 80% DOD: ≥9500 cycles
- Operating Voltage Range: 44.8V~56.0V
- Charge voltage: 56.8V
- Recommended Charge Current: 140A
- Max Charge Current: 200A
- Recommended Discharge Current: 100A
- Max Discharge Current: 200A
- Communication: RS485/CAN
EG4 Inverter Features

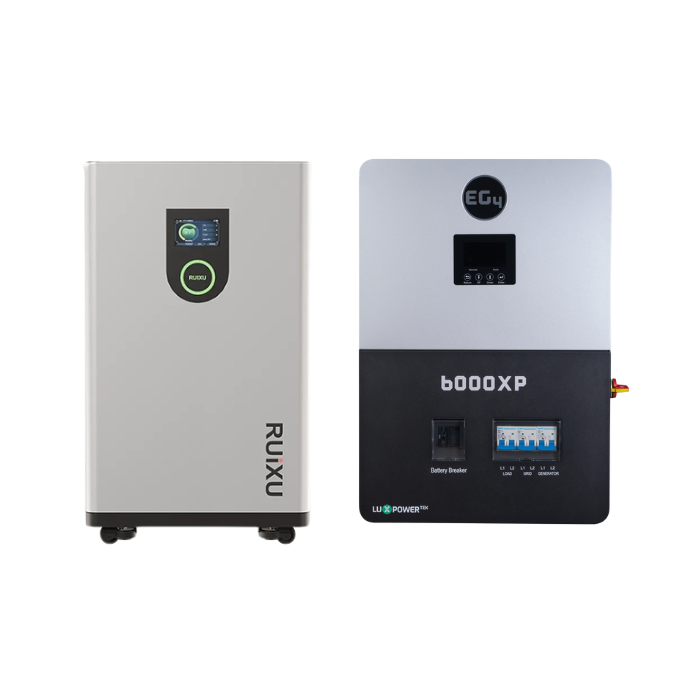

EG4 6000XP Off-Grid Inverter
- 6,000W continuous output
- 48V DC input, 120/240V split-phase output
- Pure sine wave, off-grid ready
- WiFi-enabled monitoring

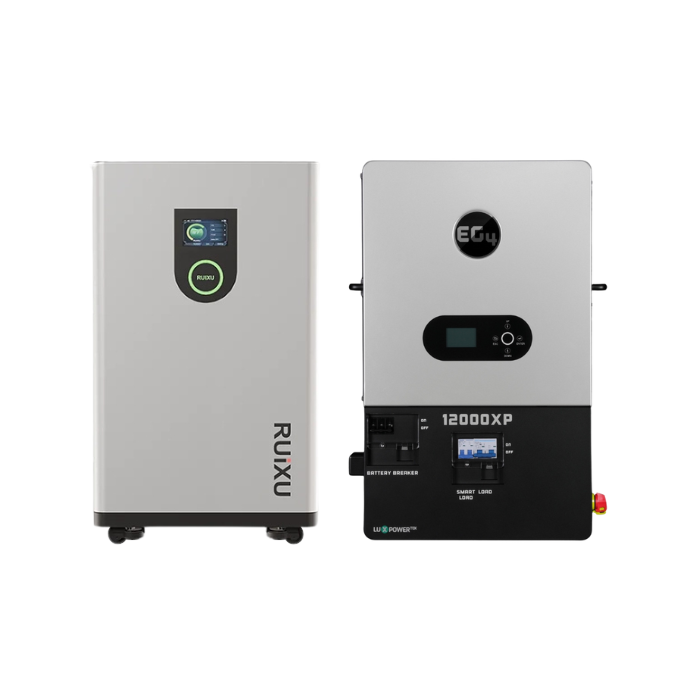

EG4 12000XP Off-Grid Inverter
- 12,000W continuous output
- 48V DC input, 120/240V split-phase output
- High-capacity for large off-grid homes or cabins
- Stackable for system expansion

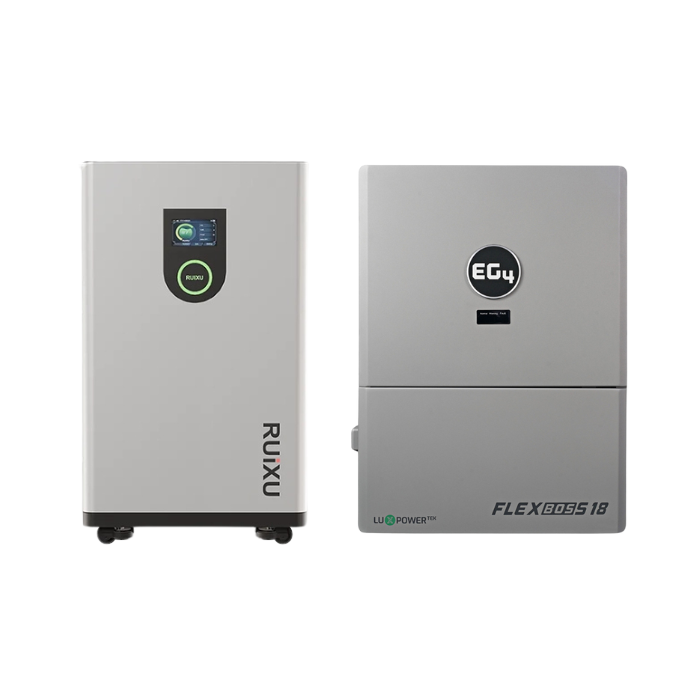

EG4 FlexBOSS18 Hybrid Inverter
- 18,000W output (hybrid/grid-tie/off-grid modes)
- 48V DC input, 120/240V split-phase output
- Battery backup + solar + grid integration
- Advanced monitoring & load management

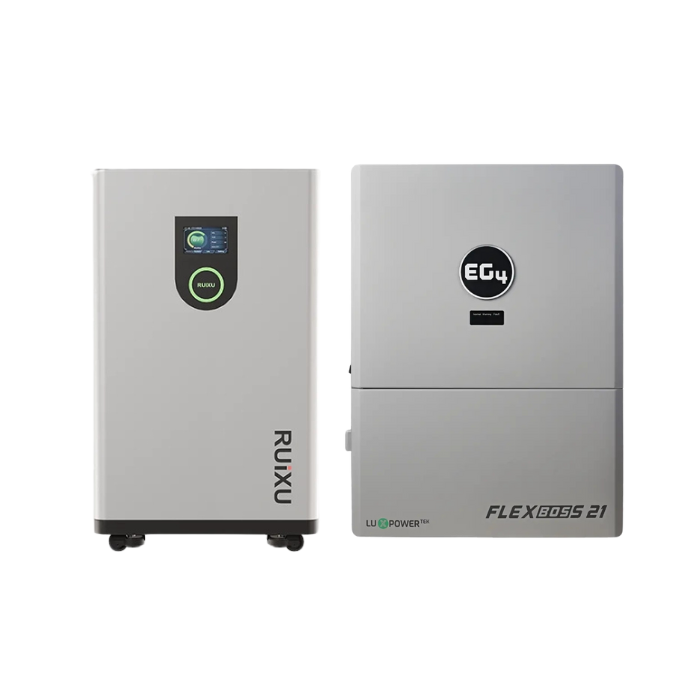

EG4 FlexBOSS21 Hybrid Inverter
- 21,000W output for larger homes or businesses
- Flexible hybrid modes (grid-tie, backup, off-grid)
- Robust surge capacity
- Remote monitoring & smart controls

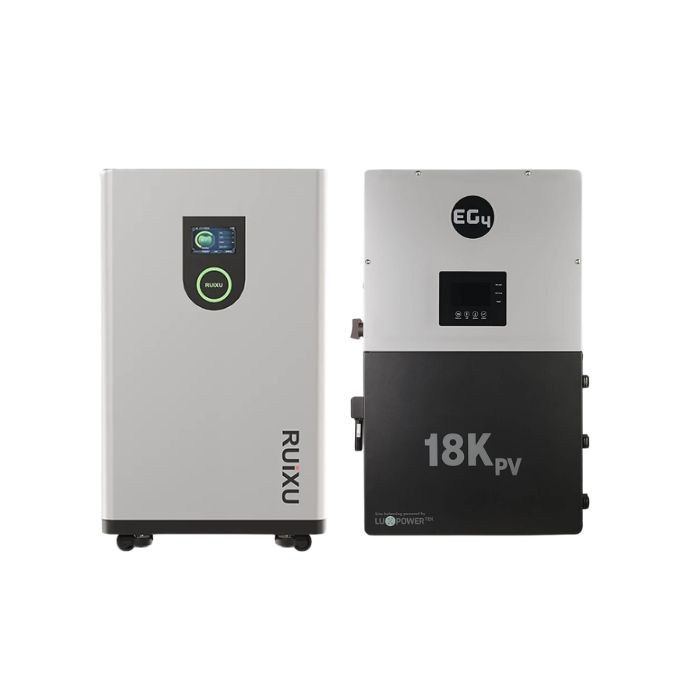

EG4 18kPV Hybrid Inverter
- 18,000W output, solar + battery + grid integration
- High solar PV input capacity
- Ideal for whole-home or large-scale systems
- Grid-tied with backup functionality
Bundles Include
- All Bundles Include: 1 x RUiXU Lithi2-16, 1 x RJ45/CAT5e Patch Cable, 1 x Ground Cable, 1 x Set of parallel 1/0 AWG OP140 or PP140 cable
- EG4 6000XP Includes: 1 x 6000XP Inverter, 6 x Expansion Screws and Tubes, 1 x Wi-Fi Module, 1 x Inverter to Batter Comm. Cable (78in), 1 x Inverter to Inverter Comm. Cable (78in), Hardware, and User Manual
- EG4 12000XP Includes: 1 x 12000XP Inverter, 6 x Expansion Bolts, 1 x Wi-Fi Module, 6 x Hex Head Wood Lag Screws, 1 x Parallel Communication Cable L=2m, 1 x Battery Communication Cable L=2m x 1, 4 x Phillips Hex Head Bolt M5, 1 x Wall Mounting Bracket, 2 x L Brackets, 4 x Phillips Hex Head Bolt, 8 x Phillips Hex Head Bolt M6
- EG4 18kPV Includes: 1 x 18kPV Inverter, 1 x Keys, 2 x 1″ CT, 2 x L Bracket, 1 x Wi-Fi Dongle, 1 x Paper Board, 1 x Mounting Bracket, 4 x Cross Head Screw M3×10, 4 x RJ45 Terminals, 4 x Cross Head Screw M5×10, 6 x Tapping Screws, 6 x Expansion Bolts, 1 x Battery Communication Cable L = 2m × 1, 1 x Parallel Communication Cable L = 2m × 1
- EG4 FlexBOSS18 Includes: 1 x FlexBOSS18 Inverter, 1 x Wi-Fi Dongle, 1 x Wall Mount Template, 2 x 1" CT, 2 x L Bracket, 4 x RJ485 Terminals, 1 x Mounting Bracket, 4 x Phillips Head Screw M5×10, 4 x Phillips Head Screw M3×10, 1 x User Manual, 1 x Battery Communication Cable L=2m (orange), 1 x Parallel Communication Cable L=2m (grey), 6 x Sheet Metal/Wood Screw, 6 x Expansion Bolts.
- EG4 FlexBOSS21 Includes: 1 x FlexBOSS21 Inverter, 1 x Wi-Fi Dongle, 1 x Wall Mount Template, 2 x 1" CT, 2 x L Bracket, 4 x RJ45 Terminals, 1 x Mounting Bracket, 4 x Phillips Head Screw M5×10, 4 x Phillips Head Screw M3×10, 1 x User Manual, 1 x Battery Communication Cable L=2m (Orange), 1 x Parallel Communication Cable L=2m (Grey), 6 x Self-Tapping Screws, 6 x Expansion Bolts.
