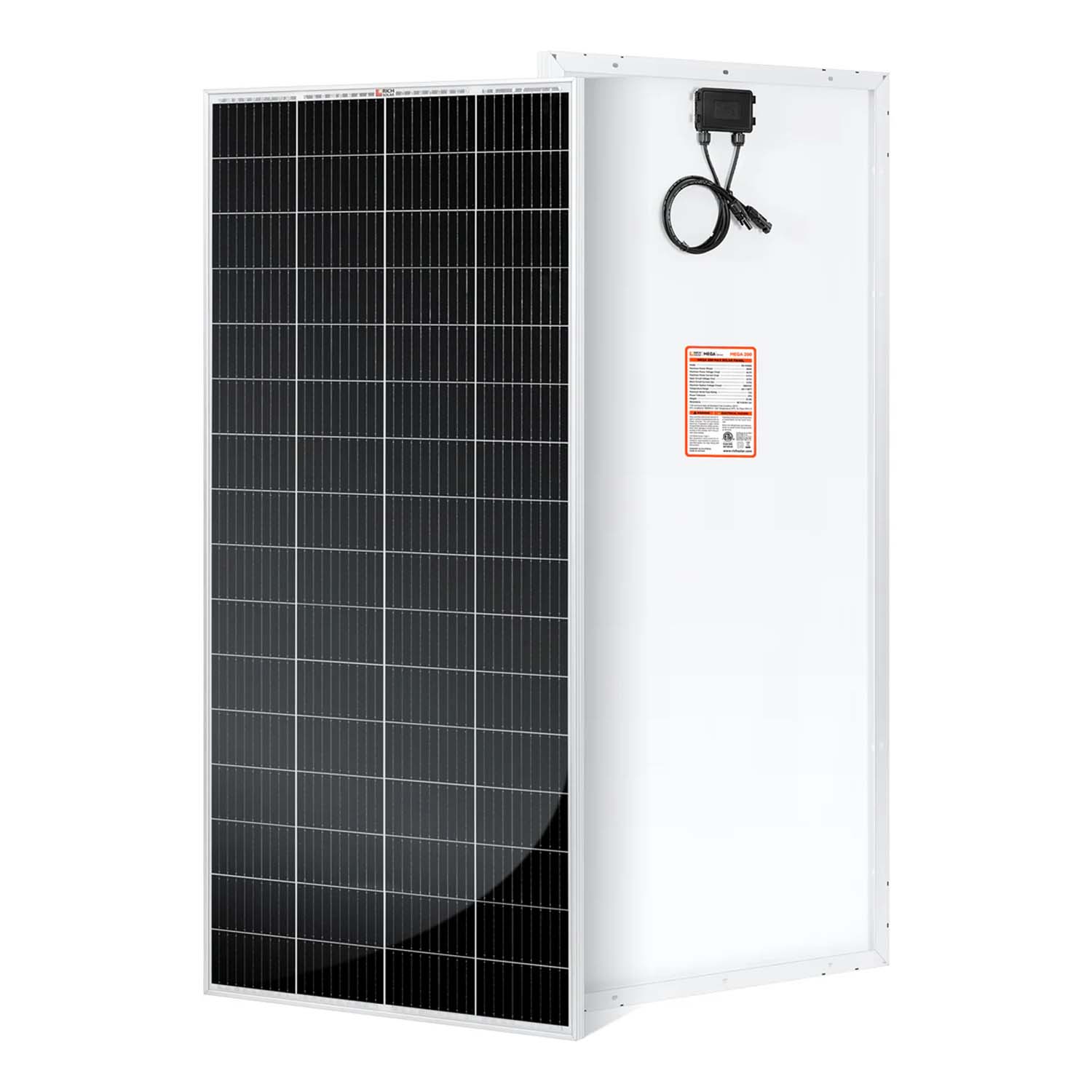

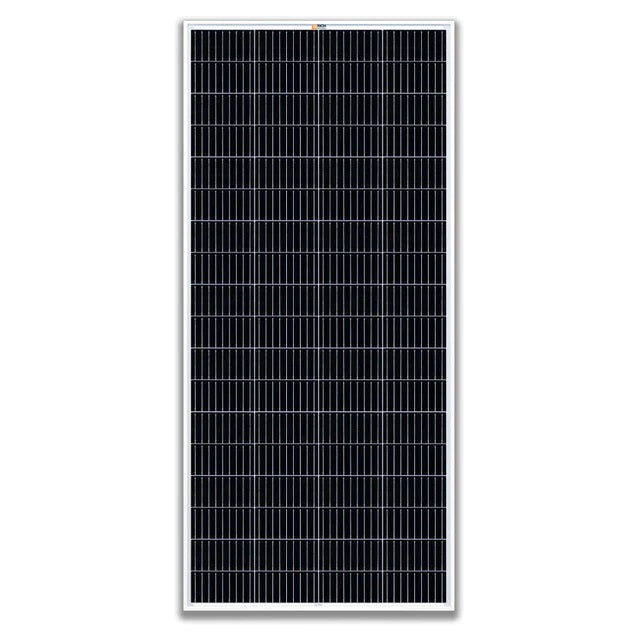

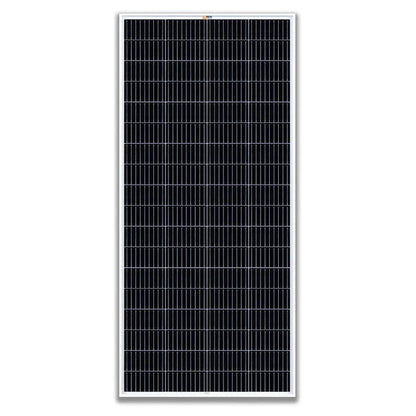

Rich Solar MEGA 200 MAX 200 Watt 24V Monocrystalline Solar Panel

Rich Solar MEGA 200 MAX Solar Panel: Empower Your Off-Grid Dream With Powerful Efficiency

Supercharge your off-grid dreams with the Rich Solar MEGA 200 Watt Monocrystalline 24V Solar Panel. This top-of-the-line panel delivers exceptional efficiency, durability, and versatility, making it a perfect choice for powering RVs, boats, cabins, tiny homes, and other off-grid applications.

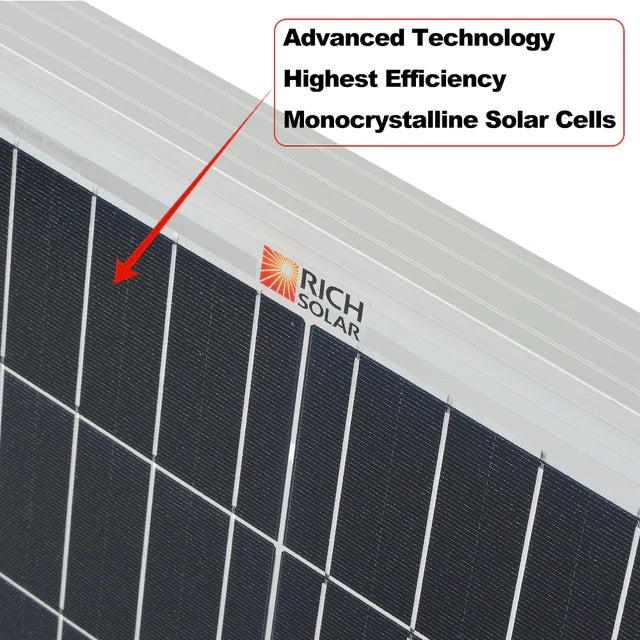

This high-performance panel is crafted from premium monocrystalline silicon cells, renowned for their exceptional conversion efficiency of up to 21.24%, ensuring you maximize your energy harvest even in low-light conditions.

Rich Solar MEGA 200 Watt 24V Solar Panel Features

• 9 buss bar solar cell configuration
• Mono PERC Technology

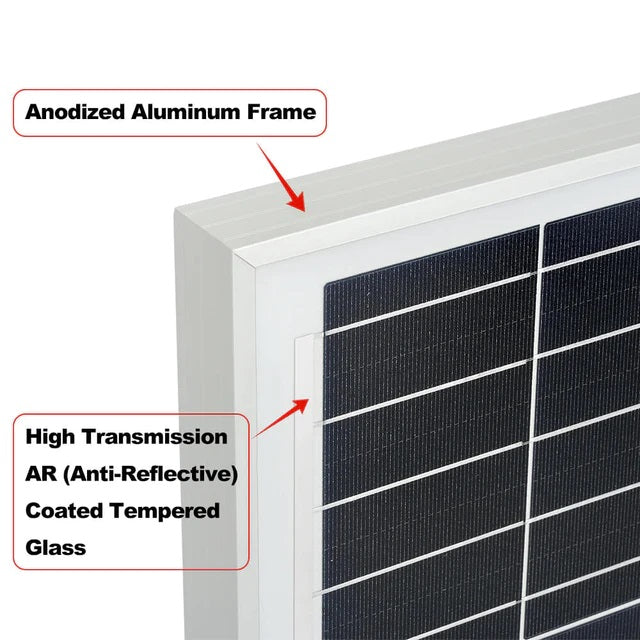

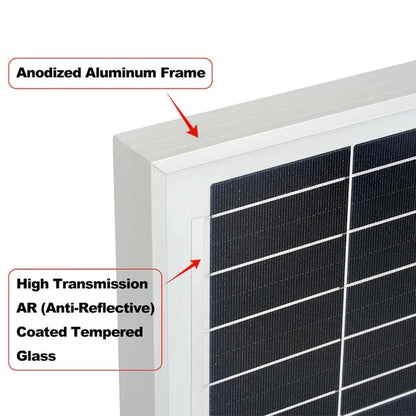

• Lightweight anodized aluminum frame
• High Transmission, AR (anti-reflective) Coated Tempered Glass
• Plug and play junction box
• Excellent low light performance on cloudy days, mornings and evenings

Ultra Compact

• Fits Offgrid DIY solar projects, Offgrid Tiny Homes, Offgrid VanLife
• Smallest Size Offgrid Solar Panel with Best Performing Efficiency
• 20% Smaller than previous models
• Industry standard quick connect cables work in series or in parallel

What's In The Box

• 1 x RICH SOLAR 200 watt monocrystalline solar panel
• Panel leads (pair): 3 feet each

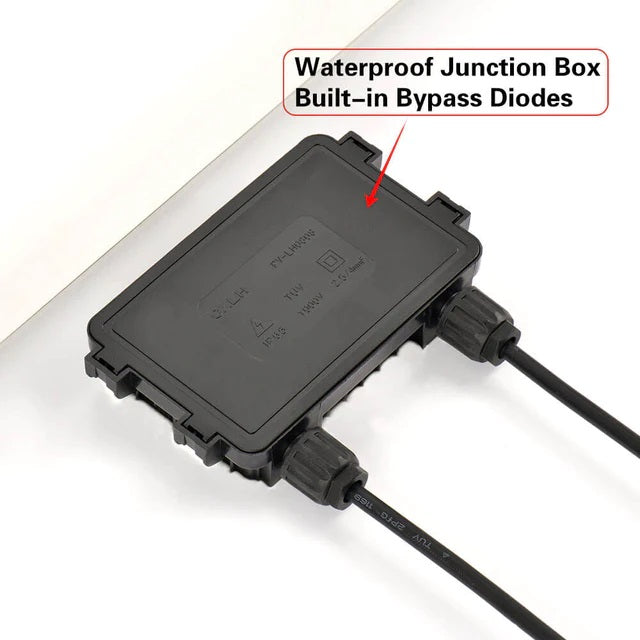

• IP65 rated waterproof junction box

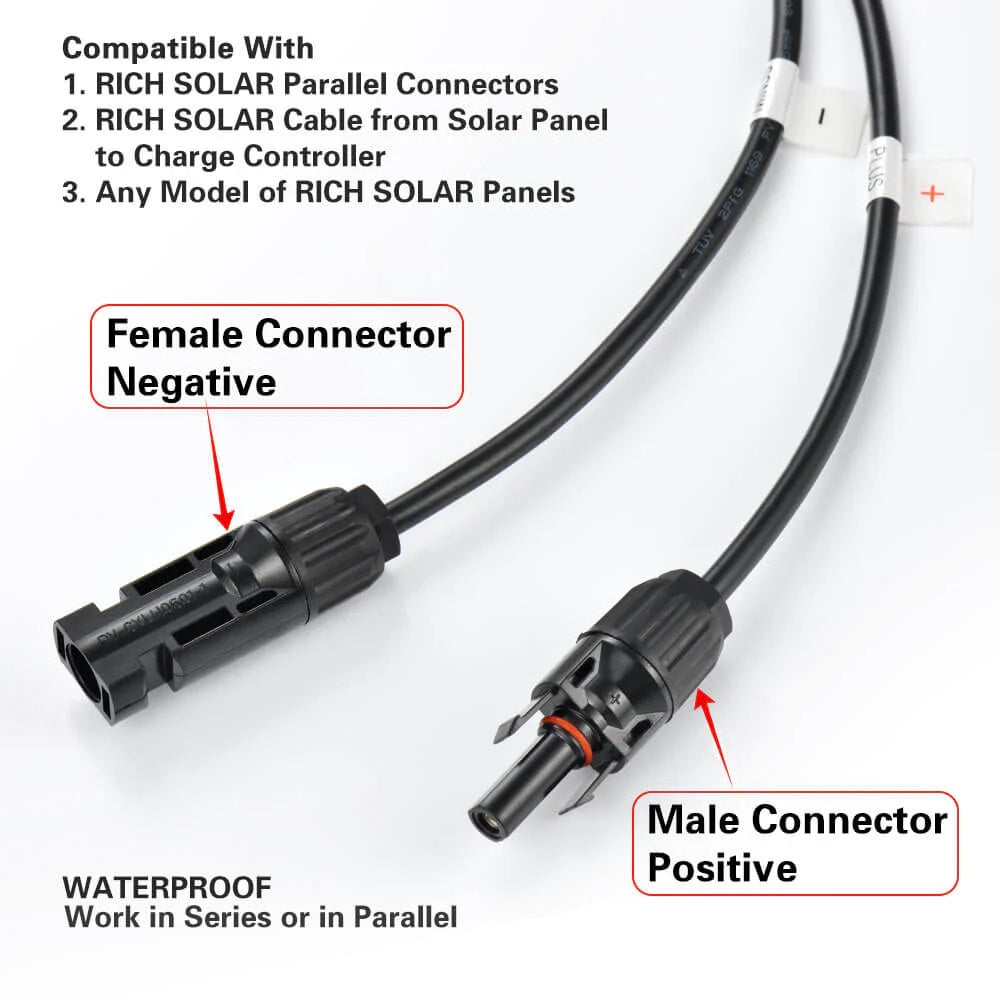

• IP67 rated waterproof solar connectors
• Bypass diodes built-in the junction box

25-Year Warranty

• Rich Solar provides a 25-year output warranty for this solar panel.

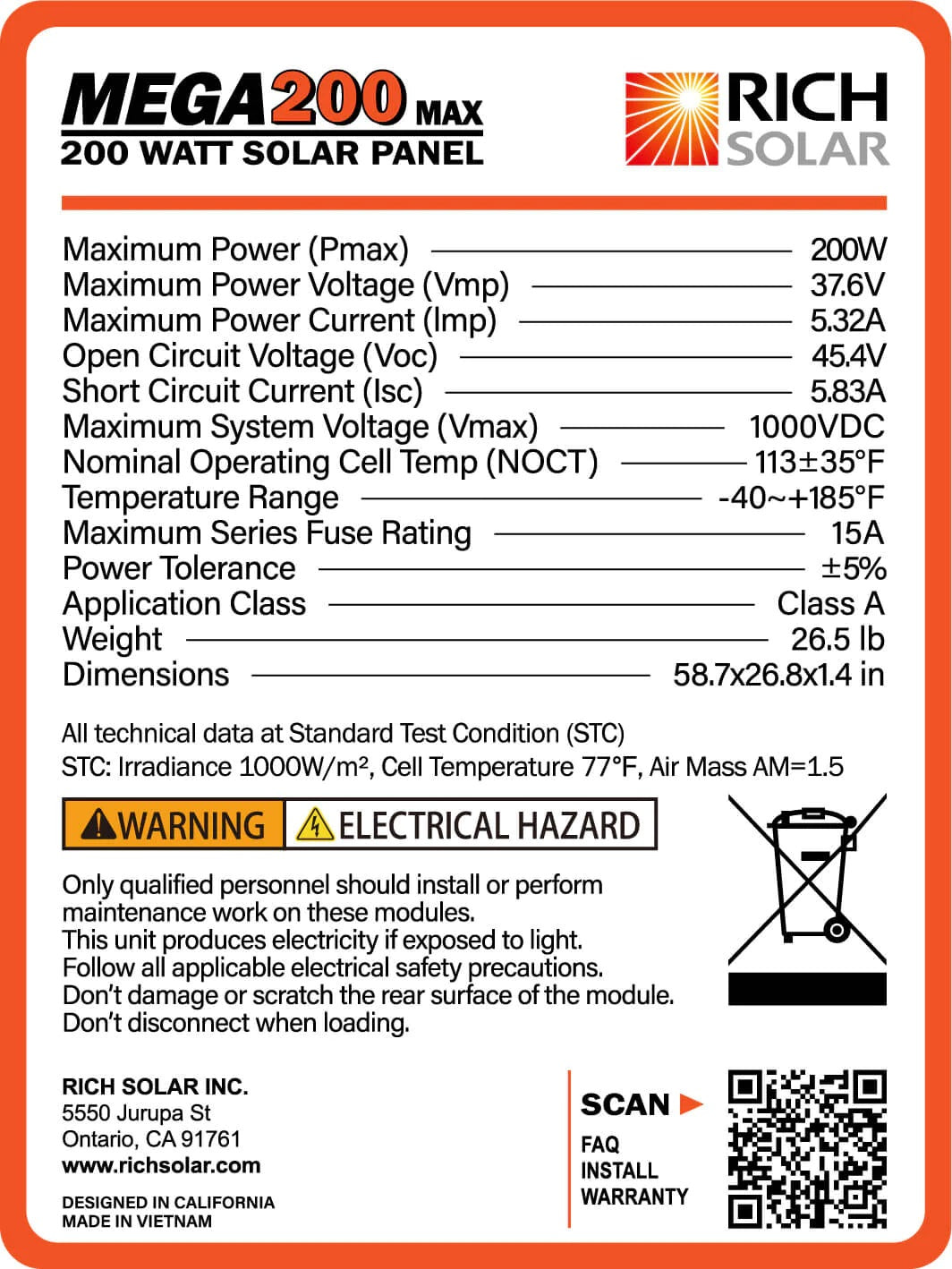

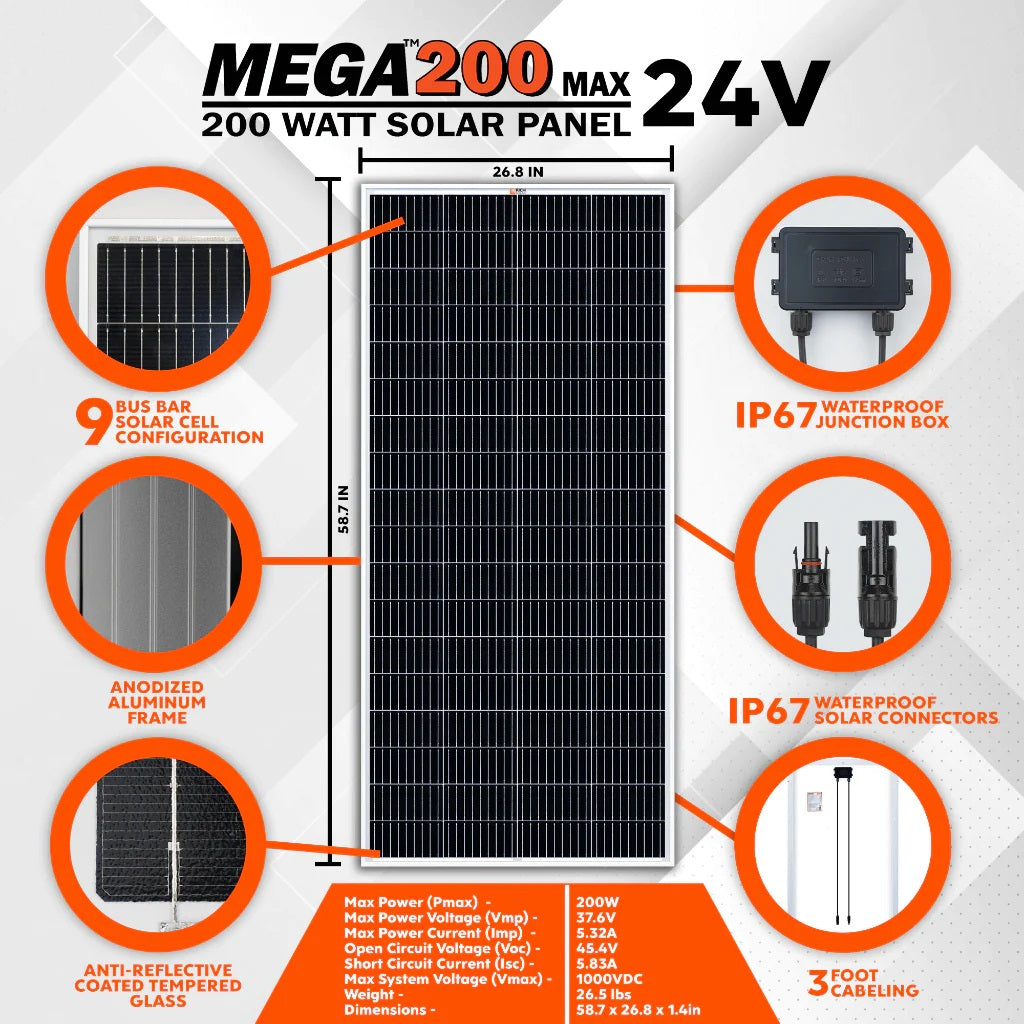

Rich Solar MEGA 200 Watt 24V Solar Panel Specifications

• Maximum Power(Pmax): 200W
• Maximum Power Voltage(Vmp): 37.6V
• Maximum Power Current(Imp): 5.32A
• Open Circuit Voltage(Voc): 45.4V
• Short Circuit Current(Isc): 5.83A
• Maximum System Voltage(Vmax): 1000VDC
• Temperature Range: -40°C ~ 90°C
• Max Series Fuse Rating: 15A
• Weight: 26.5 lbs
• Dimensions: 58.7 x 26.8 x 1.4 in

Rich Solar MEGA 200 Watt 24V Solar Panel Installation

• Easy installation and handling for various applications (high-end off-grid and mobile applications)

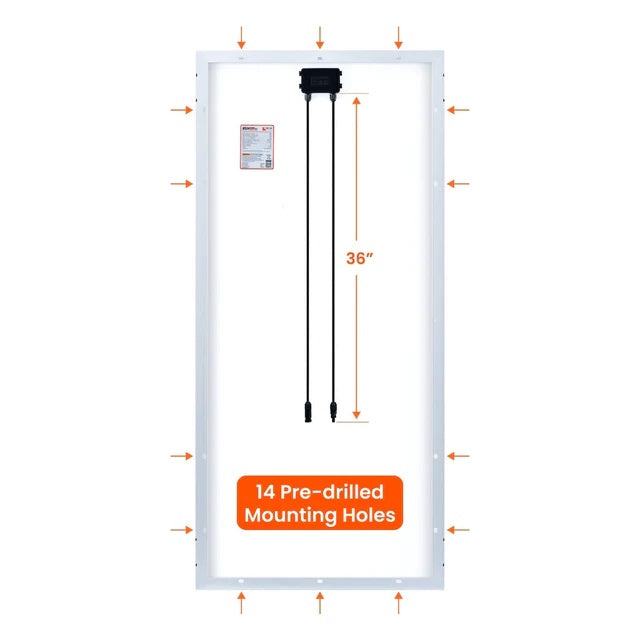

• Pre-drilled holes compatible with ground mounts, Z brackets, pole mounts and tilt mounts
• Compatible with on-grid and off-grid inverters

Rich Solar MEGA 200 Watt Monocrystalline 24V Solar Panel Manual

• Rich Solar MEGA 200 Watt Monocrystalline 24V Solar Panel Manual
