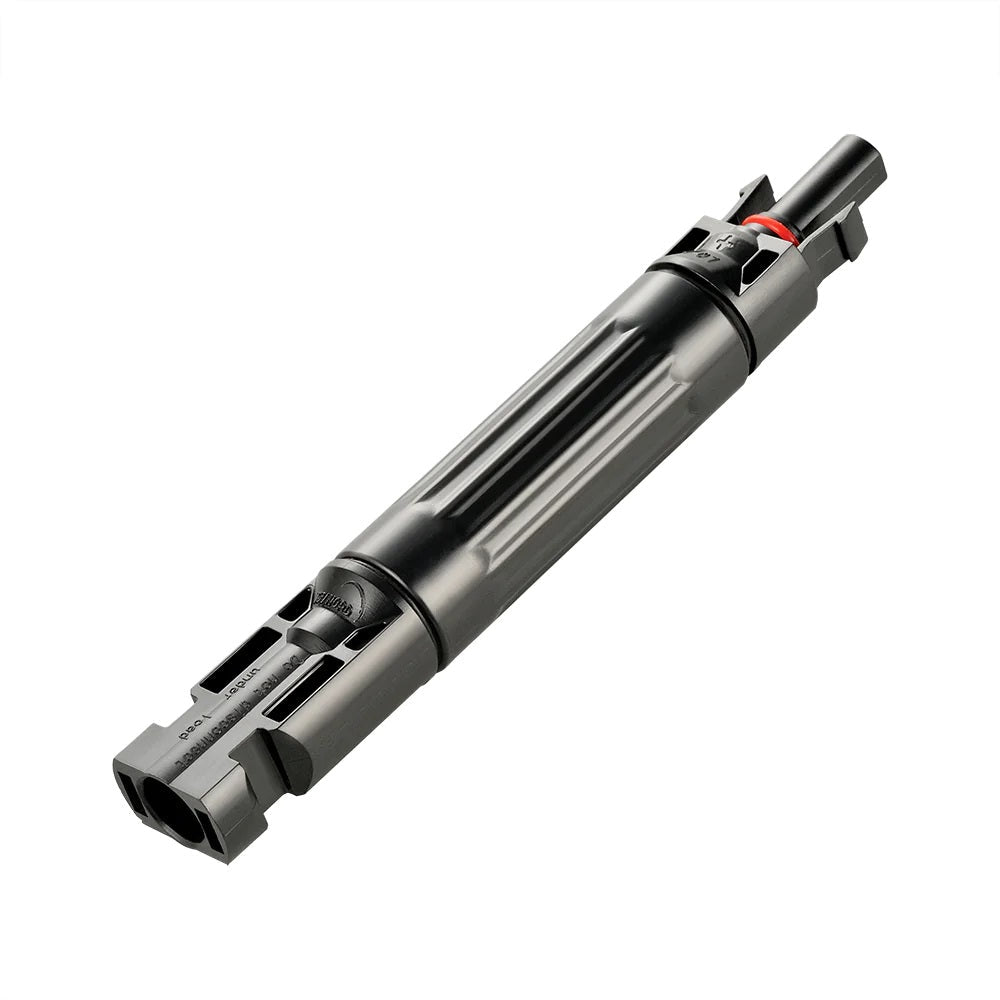

• Rich Solar Inline Fuse And Holder with 10A 15A 20A 30A Negative End View
  • Outbound Power Trust Factors 2.

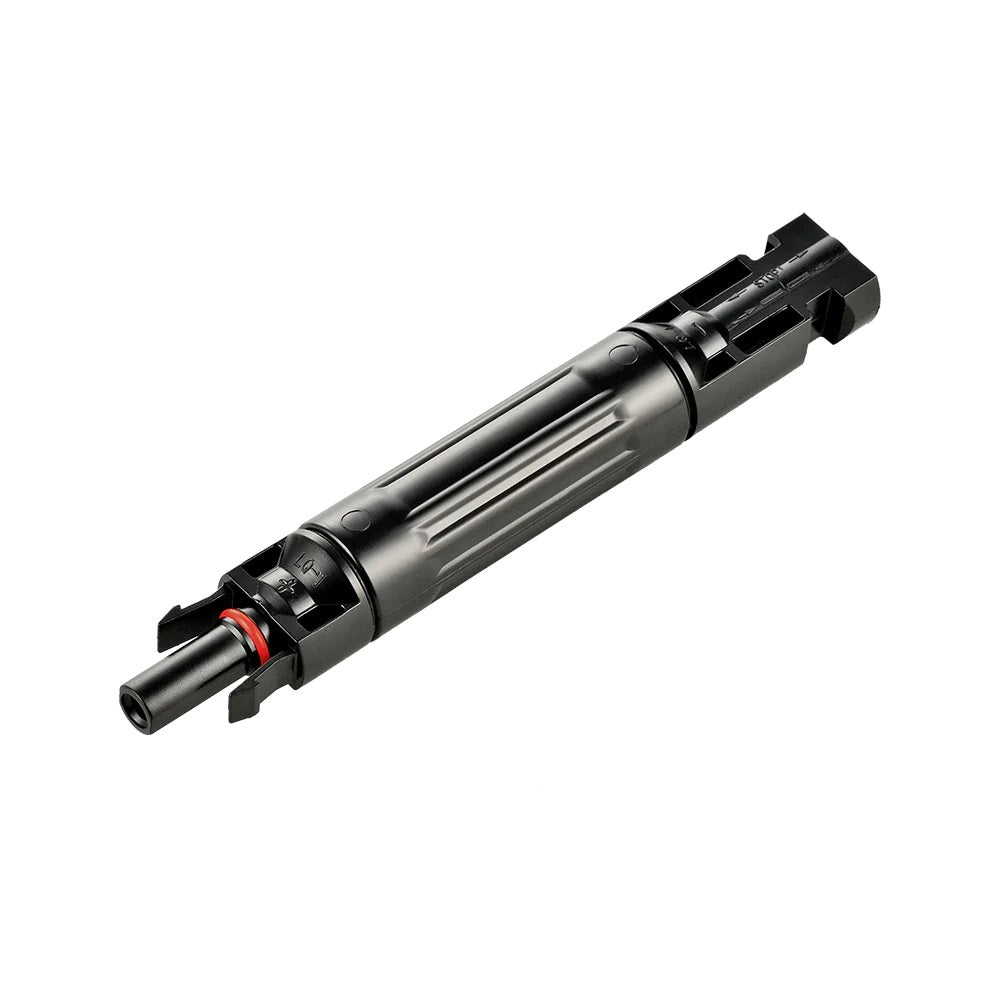

  • Rich Solar Inline Fuse And Holder with 10A 15A 20A 30A Positive Terminal End View

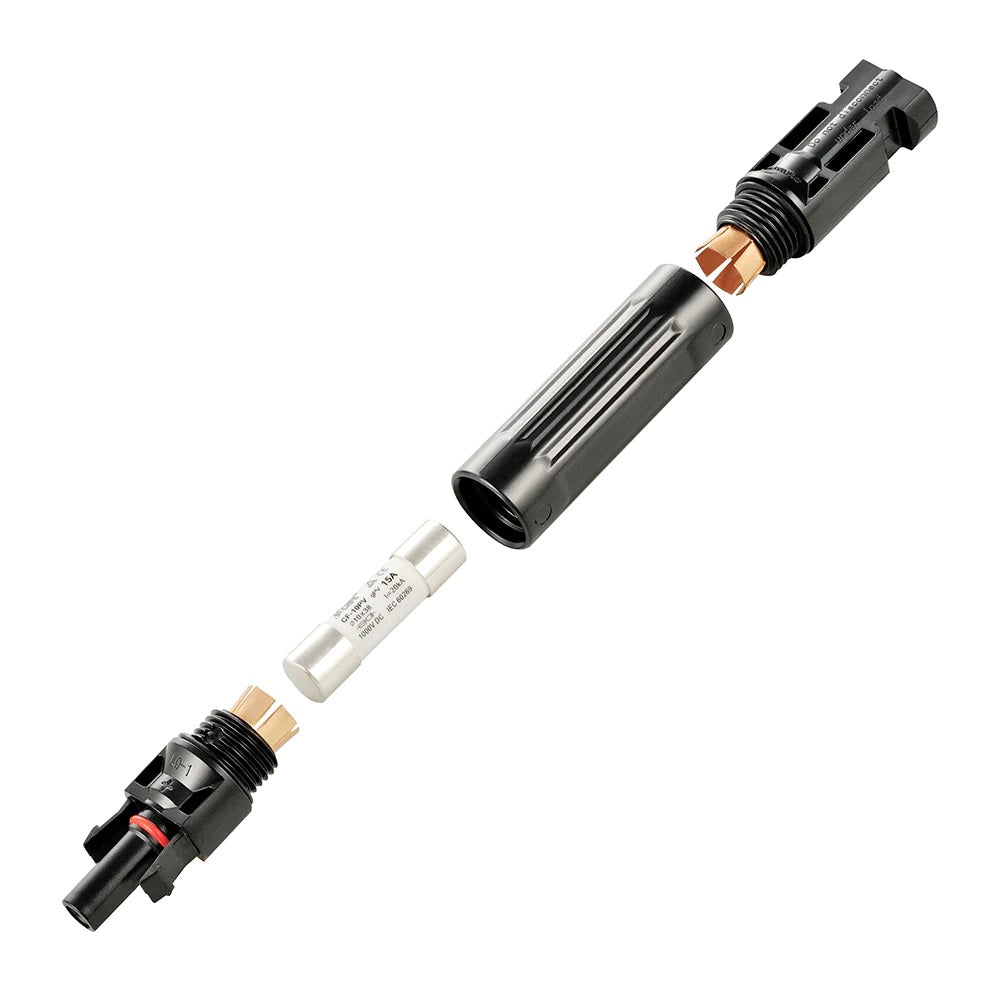

  • Rich Solar Inline Fuse And Holder

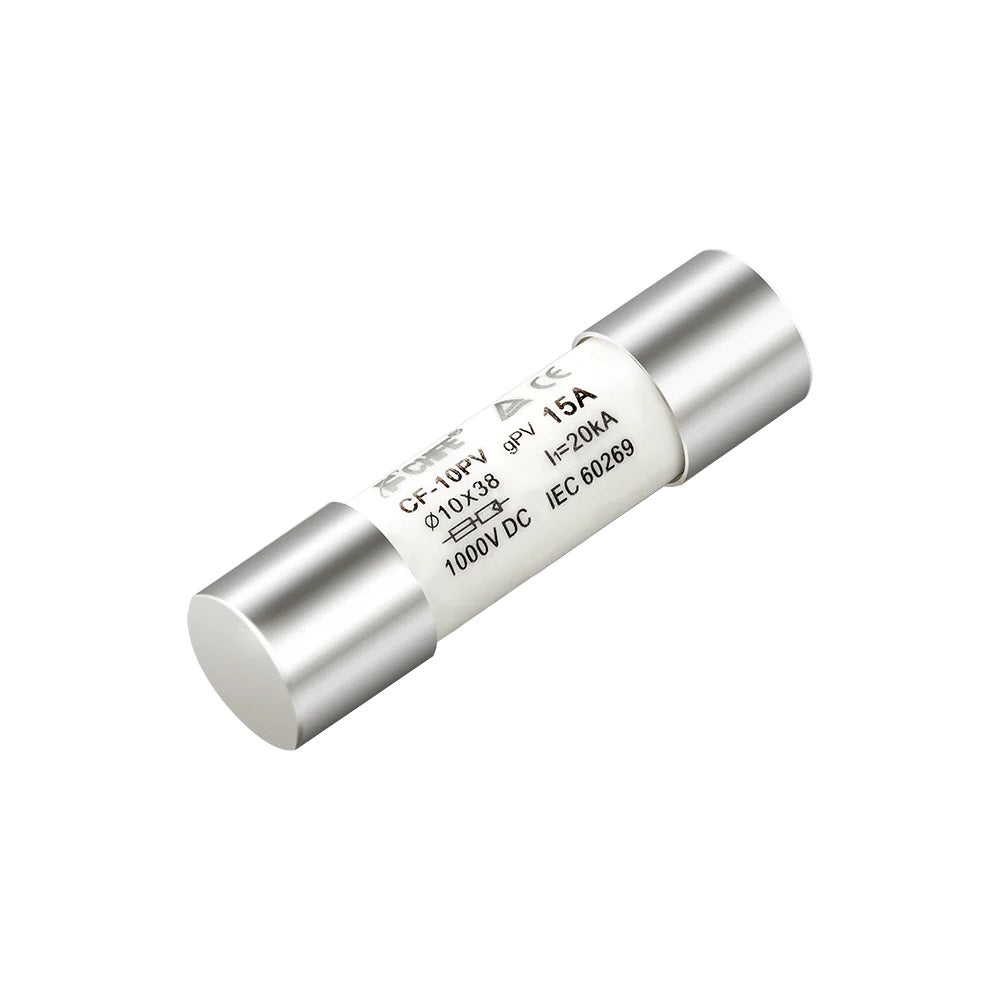

  • Rich Solar Inline Fuse

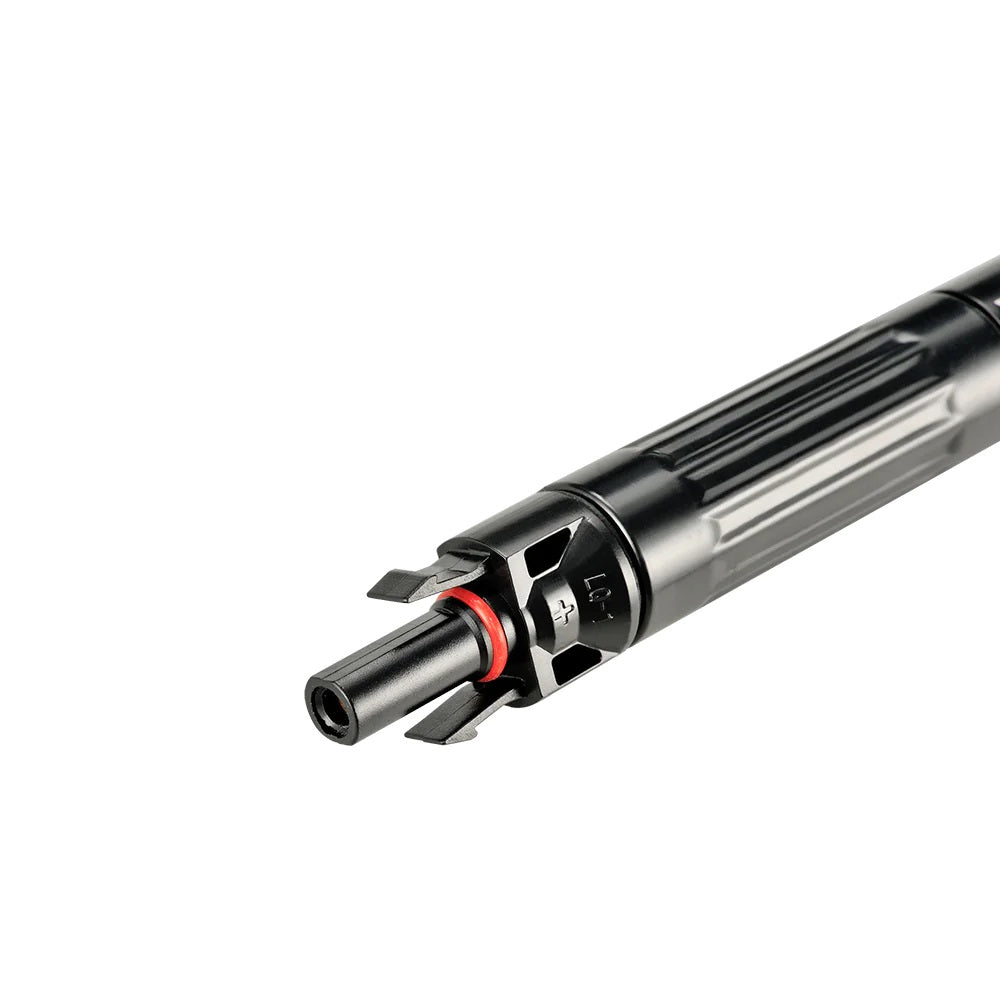

  • Rich Solar Inline Fuse And Holder Positive Terminal End Clip
  • Rich Solar Inline Fuse And Holder Negative Or Stop Side View
1 7

Rich Solar Inline Fuse Holder with 10A 15A 20A 30A Fuse

Rich Solar

$15.99
$15.99
In Stock — Ready to Ship
Free Shipping
Mfr. Warranty
Authorized Dealer
Easy Returns

Price Match Guarantee

Found it cheaper? Send us the link and we'll match or beat the price at any authorized retailer.

Email support@thegeneratorsdepot.com Chat Instant Live Chat
View full details

Product Details

Safeguard Your Solar Investment Rich Solar Inline Fuse Holder With Multi-Amp Protection

Protect your valuable solar panels and electrical system from damaging overcurrents with the Rich Solar Inline Fuse Holder with Multi-Amp Protection. This convenient, weatherproof fuse holder provides a crucial safety barrier for your solar array, ensuring reliable operation and extending the lifespan of your investment.


Rich Solar Inline Fuse Holder Features

  • Fuse Can Replace
  • Compatible with PV cables with different insulation diameters.
  • Designed for a wide range of DC applications.
  • Simple plug-and-play.
  • Auto-lock equipment of male and female points render connections easy and reliable.
  • Waterproof fuse holder - IP67 Class Protection.
  • Insulation material PPO.
  • High current-carrying capacity.
  • Prevent large currents from damaging the solar panels.
  • Designed to provide complete single circuit protection to your solar power array.
  • Protection Class II
  • Connector adopts touch and insertion of reed with inner-knob type.
  • Purchase this product for extra protection on your system.



What's In The Box

  • 10A/15A/20A/30A fuse embedded into a waterproof fuse holder, solar connector lead on each end.



    Rich Solar Inline Fuse Holder Specifications

    • Rated Current: 10A/15A/20A/30A
    • Degree of Protection: IP2*/IP67
    • Rated Voltage: 1000 V DC
    • Flame Class: UL94-V0
    • Test Voltage: 6000V (50Hz,1 min)
    • Safety Class: II
    • Overvoltage Category: CATIII
    • Suitable Connector: Solar Connector
    • Contact Resistance of Plug Connector: 1mΩ
    • Insertion Force / Withdrawal Force: ≤50N / ≥50N
    • Contact Material: Copper, Silver Plated
    • Insulation Material: PPO
    • Temperature Range: -40 to +125°C
