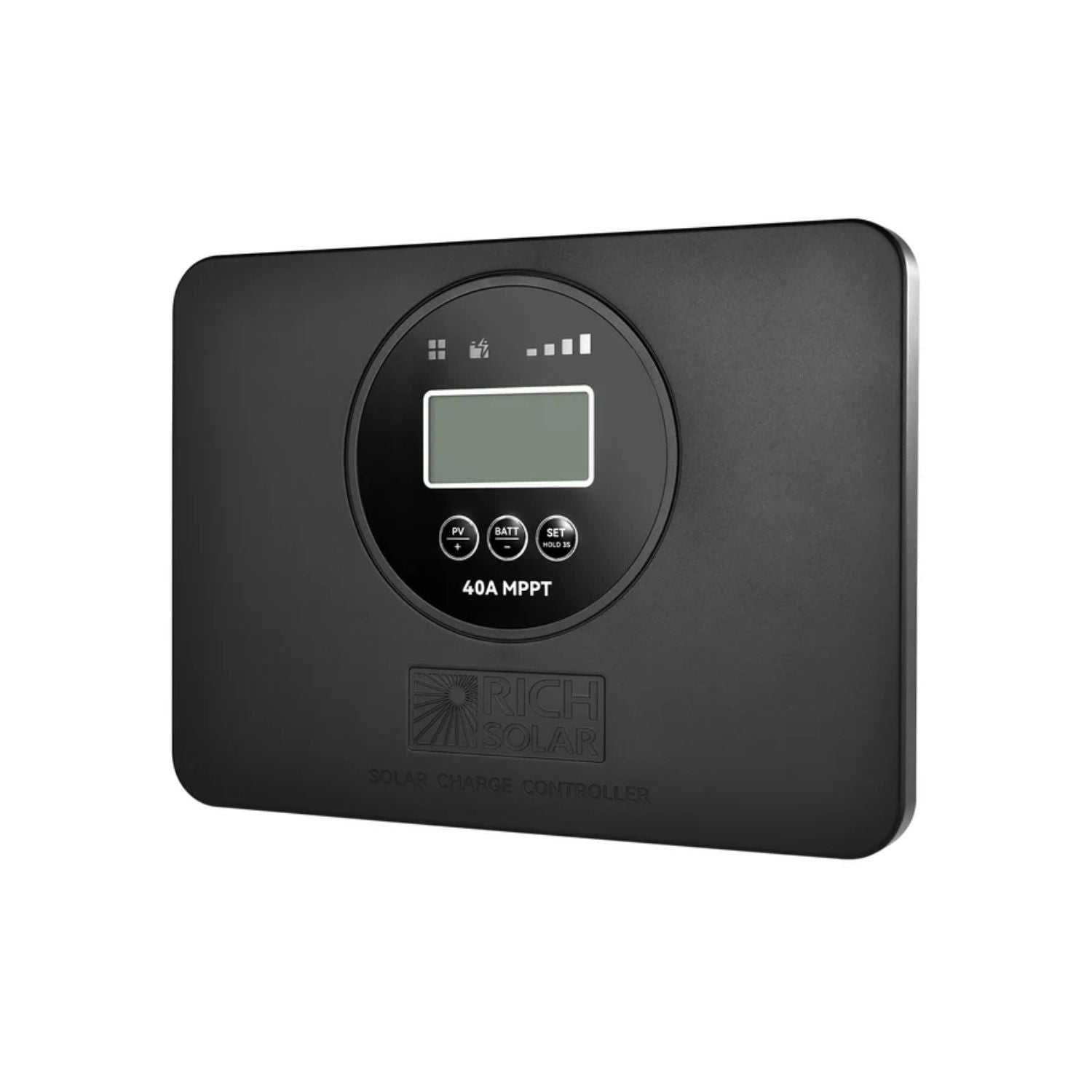

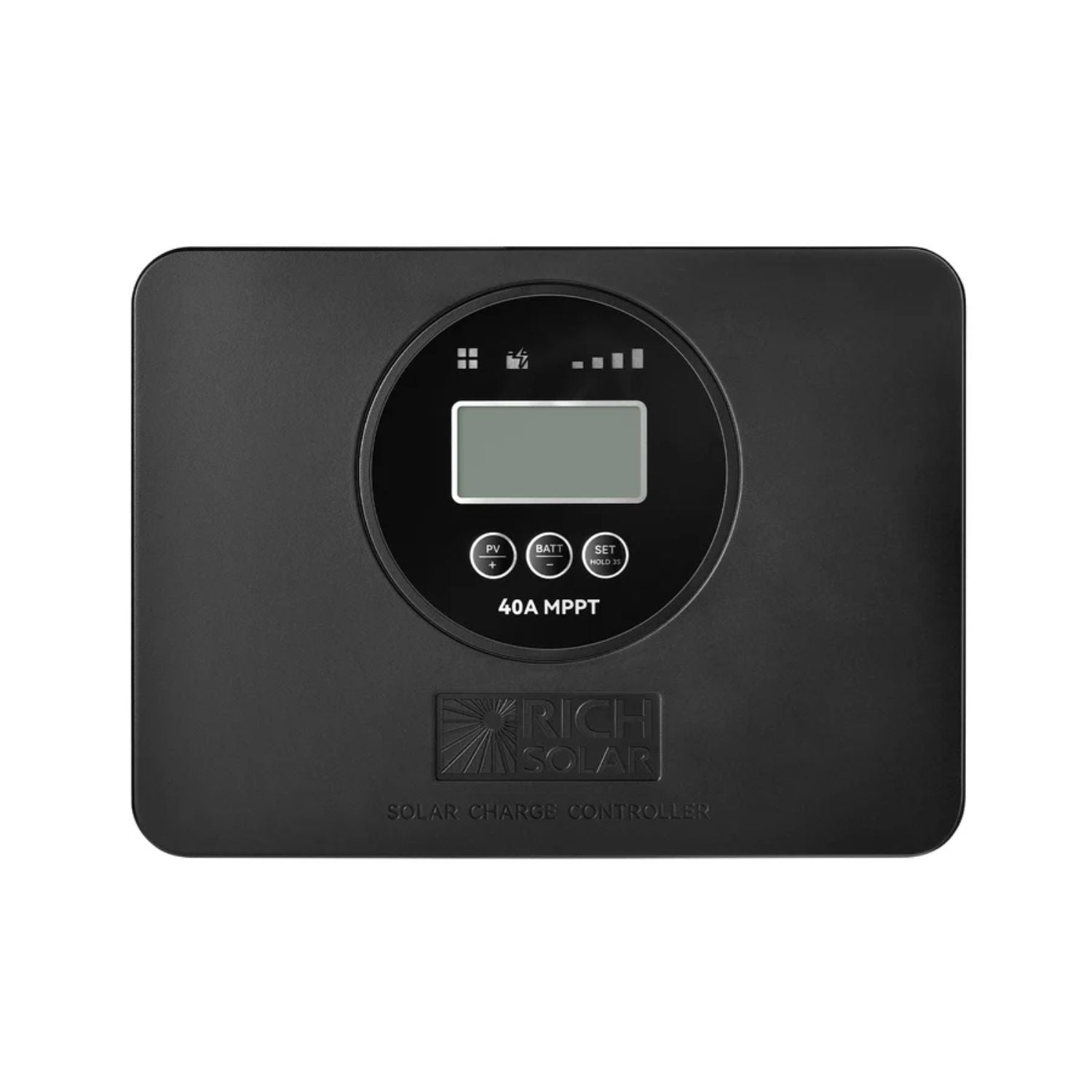

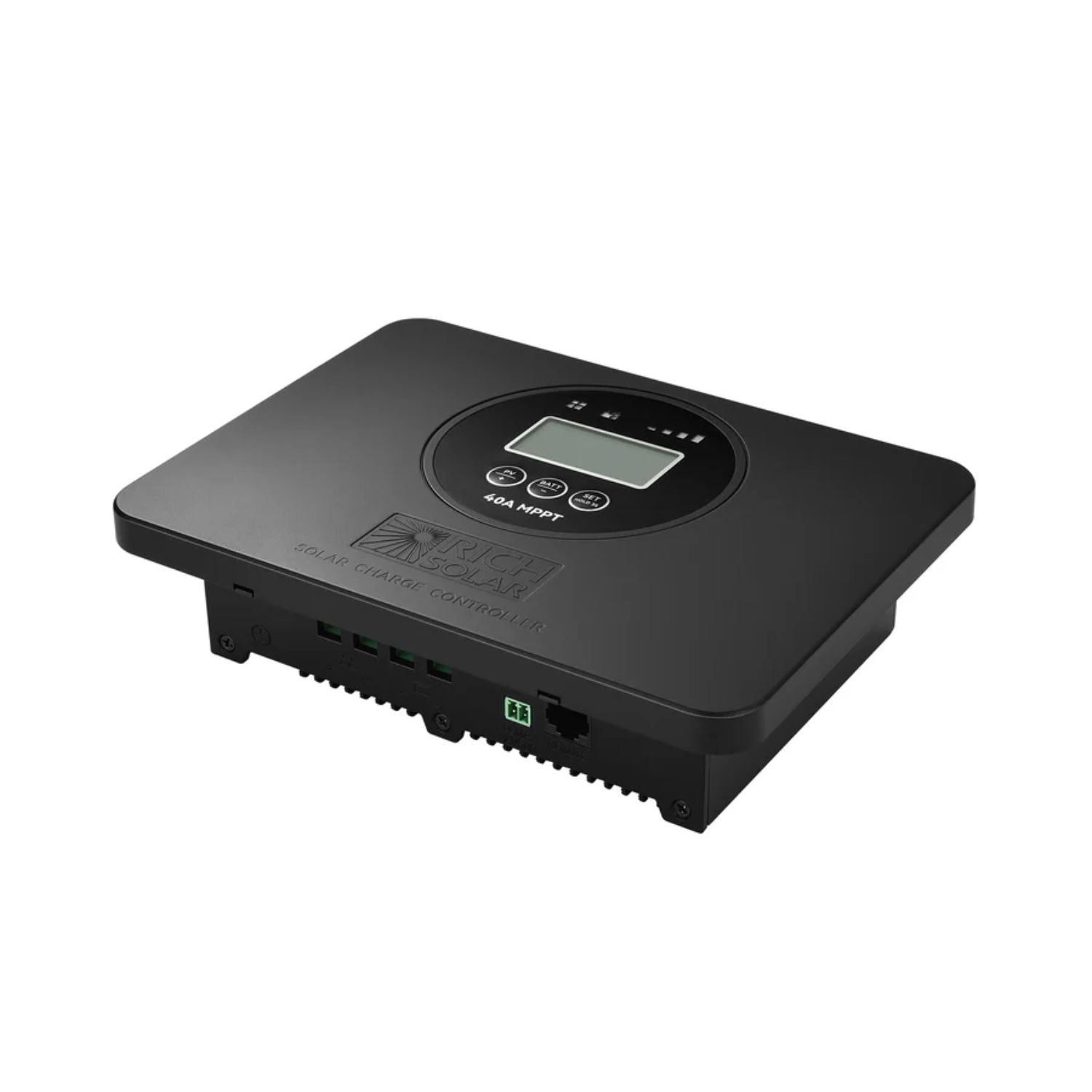

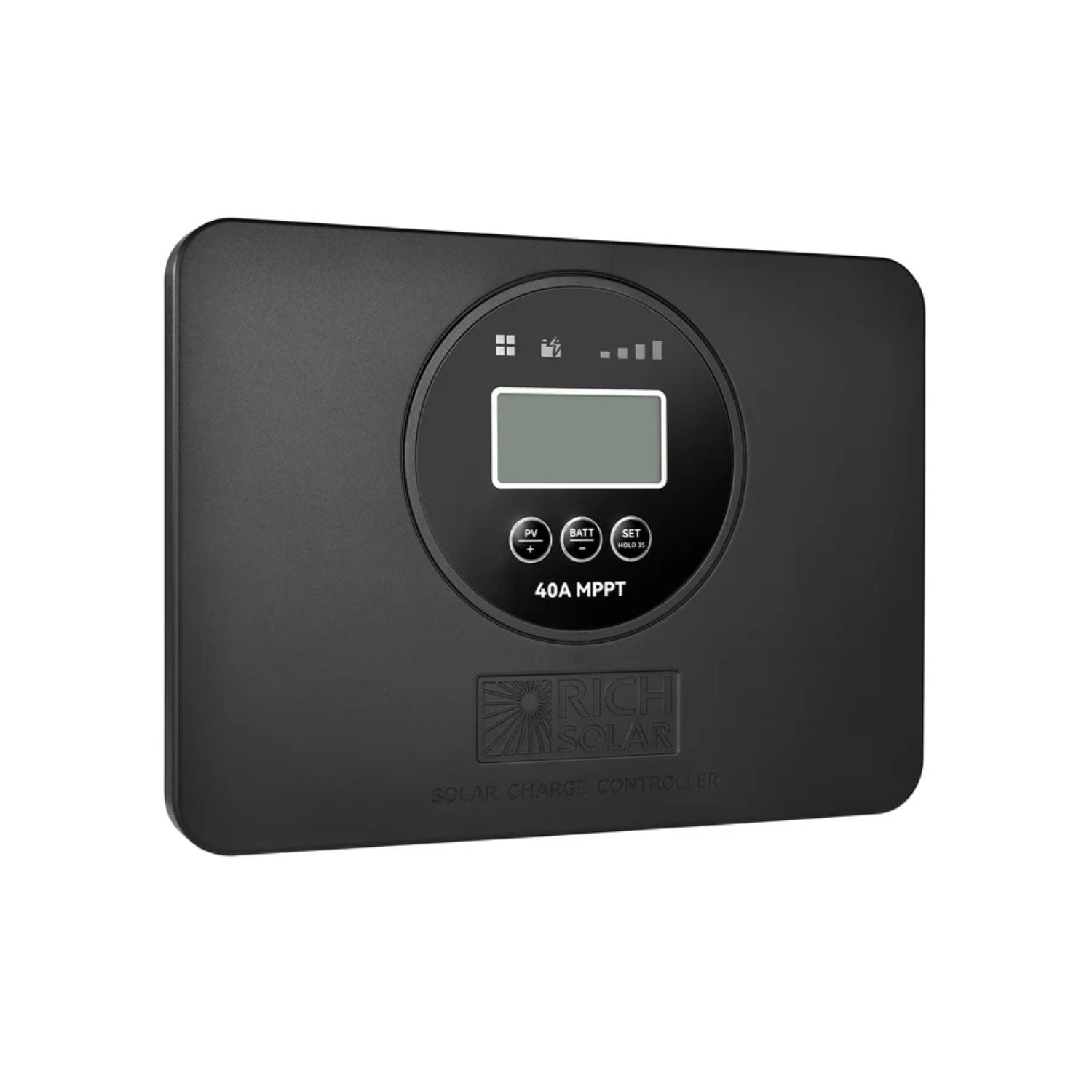

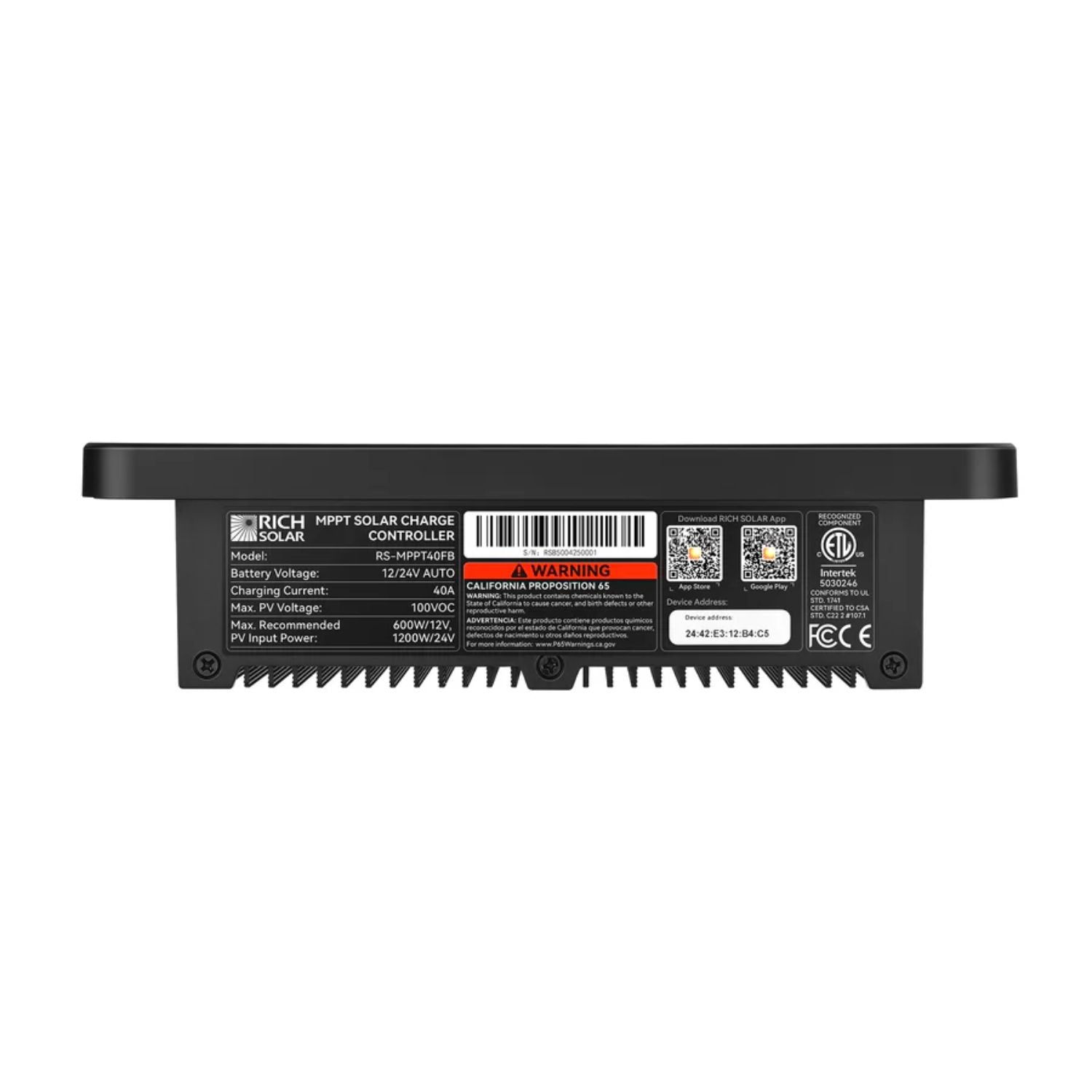

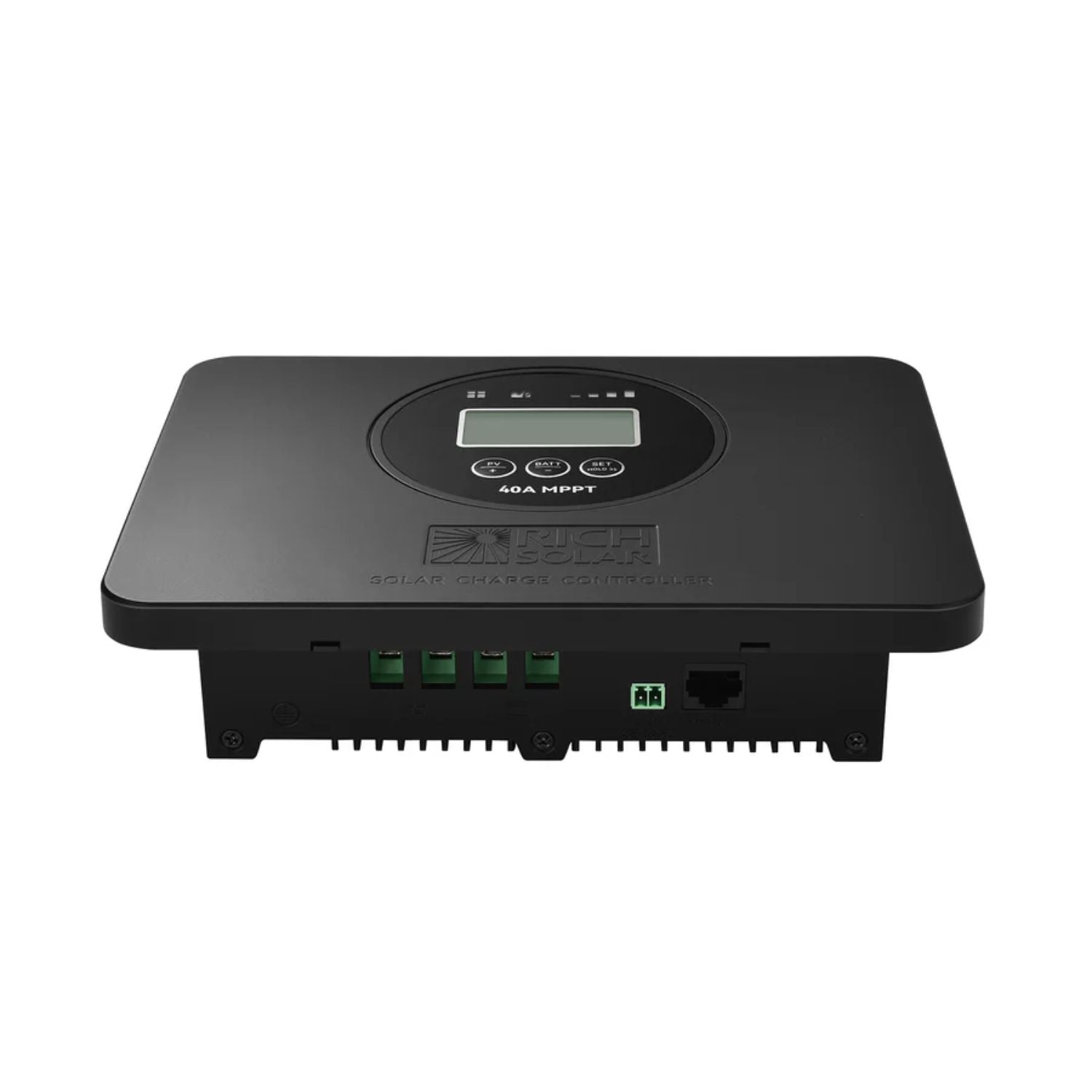

Rich Solar BRAVO PRO 40 | Premium 40A 12V/24V MPPT Flush Mount Solar Controller for RVs, Trailers, Campers, Vans, Boats, Off-Grid | With Bluetooth
Rich Solar
Couldn't load pickup availability
Price Match Guarantee
Found it cheaper? Send us the link and we'll match or beat the price at any authorized retailer.
Product Details
Rich Solar BRAVO PRO 40 Delivers 99.5% MPPT Efficiency for Maximum Solar Power Harvest Where You Need It Most
Your solar panels are only as good as the charge controller managing them. That's not a small detail it's the entire ballgame. If your controller is losing energy to inefficiency, you're leaving real power on the table every single day. The Rich Solar BRAVO PRO 40 is built to make sure that doesn't happen. Engineered for RVers, homeowners, off-grid adventurers, and mobile professionals who depend on reliable solar charging, this 40-amp MPPT flush mount solar charge controller squeezes every available watt from your solar array and delivers it to your batteries with industry-leading precision.
Whether you're parked at a remote campsite, riding out a grid outage at home, running tools from a mobile worksite, or living full-time off the land, the BRAVO PRO 40 gives your system the intelligence, efficiency, and versatility it needs to perform day in, day out. At just 1.8 pounds and with a clean flush-mount profile, it installs neatly without taking over your electrical panel, your van wall, or your RV cabinet.
This isn't your run-of-the-mill PWM controller dressed up in marketing language. The BRAVO PRO 40 is a true MPPT solar charge controller a meaningful distinction that translates directly into more power, faster charging, and a longer battery lifespan.
Rich Solar BRAVO PRO 40 Features
-
High-Efficiency MPPT Charging
- 99.5% MPPT Tracking Efficiency – Maximizes available solar energy harvest
- 98% Conversion Efficiency – Reduces power loss for higher system efficiency
Intelligent System Compatibility
- Auto 12V / 24V Detection – Simplifies installation and setup
- Wide Battery Compatibility – Supports GEL, AGM, WET, CALCIUM, LiFePO₄, LTO, and LCO
Smart Monitoring & App Control
- LCD Display – Real-time system status at a glance
- Bluetooth + App Support – Remote monitoring and parameter adjustment via smartphone
Reliable Built-In Protection & Certifications
- Multi-Level Safety Protection – Protects against over-voltage, reverse polarity, short circuits, and overheating
- Certified Safety & Compliance – ETL, CE, FCC, RoHS

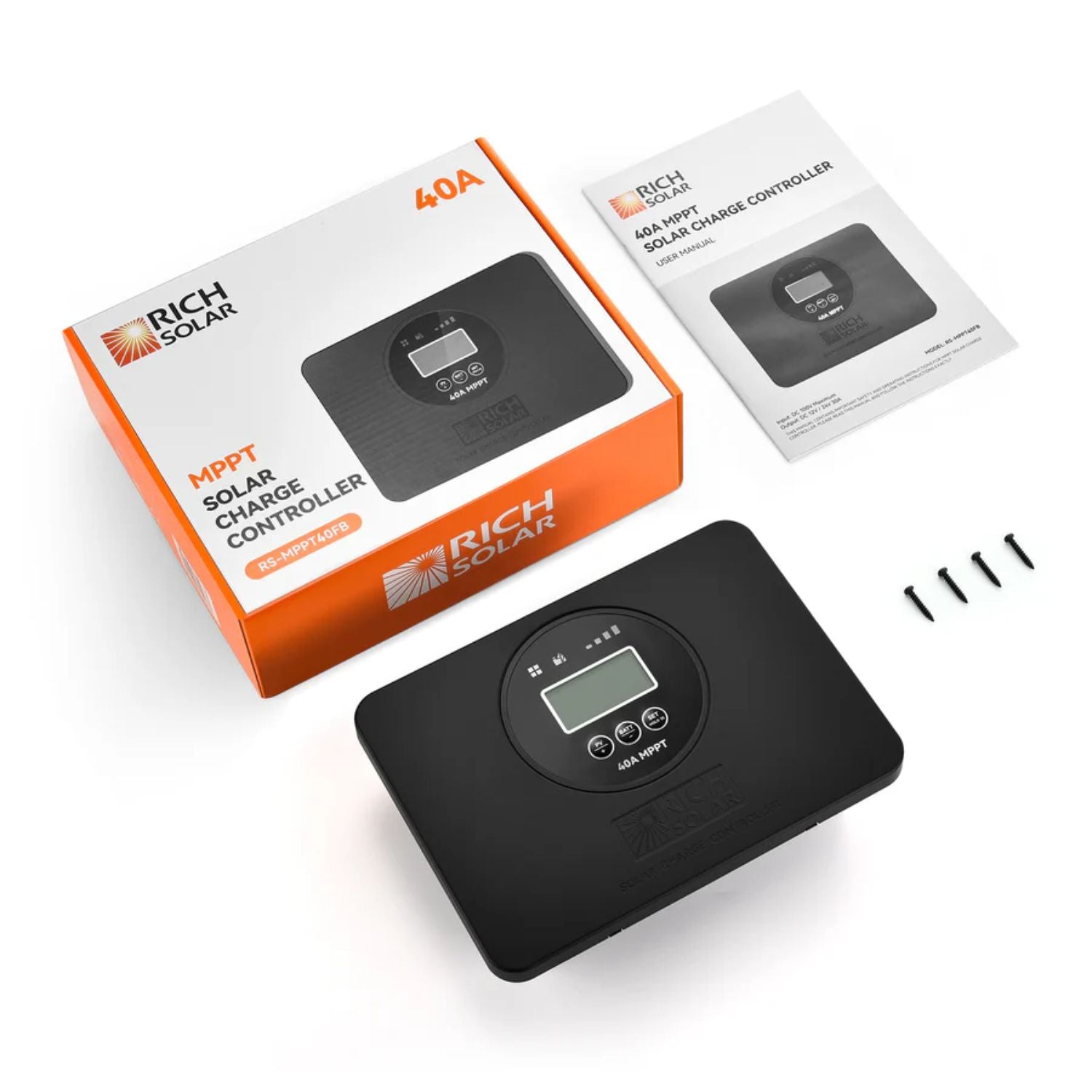

What's In The Box
- 1 x Rich Solar BRAVO PRO 40 Amp MPPT Solar Charge Controller
Rich Solar BRAVO PRO 40 Specifications |
|
|---|---|
| Model | RS-MPPT40FB |
| System Nominal Voltage | 12V/24V Auto |
| Maximum Solar Input Current | 40A |
| Maximum Charging Current | 40A |
| Recommended Solar Input Power | 600W (12V) / 1200W (24V) |
| Solar Input Voltage Range | 8–100V |
| Standby Current | 10mA |
| Charging Technology | MPPT |
| MPPT Voltage Tracking Range | 15–72VDC |
| MPPT Efficiency | 99.5% |
| Conversion Efficiency | 98% |
| Battery Compatibility | GEL, AGM, WET, LFP, LTO, LCO, Crystal, Calcium, Customizable |
| Protections | Over-Voltage, Reverse Polarity, Short-Circuit, Over-Temperature |
| Bluetooth | YES |
| Dimensions | 8.3 × 6.1 × 2.2 in |
| Weight | 1.8 lb |
| Options | External Battery Temperature Sensor, External Digital Remote Display |
| Certifications | ETL, CE, EMC, FCC, RoHS |
| Operating Temperature | -13°F to 122°F |
| IP Rating | IP43 |
