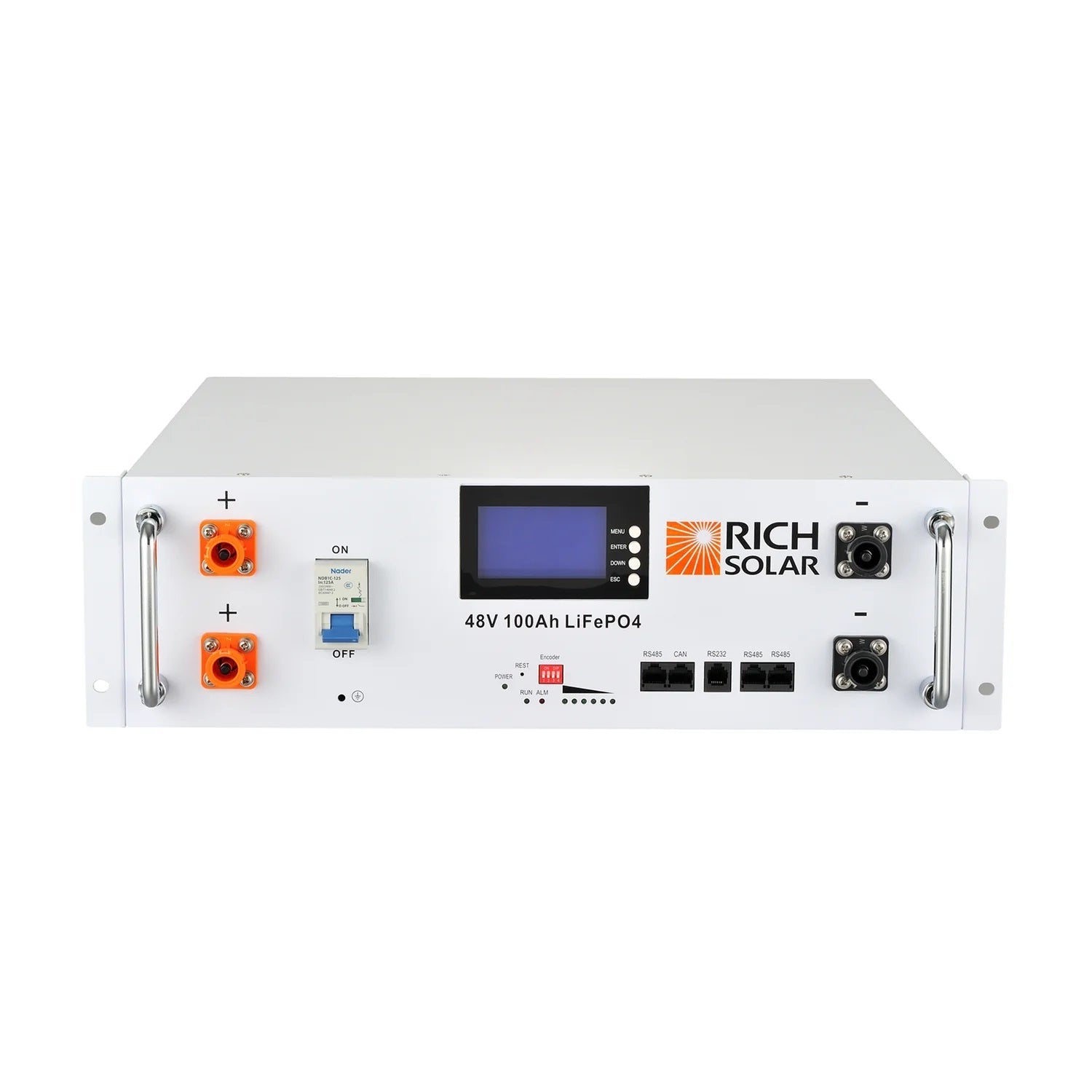

• Rich Solar Alpha 5 Server Lithium Iron Phosphate Battery Front View
  • Outbound Power Trust Factors 2.

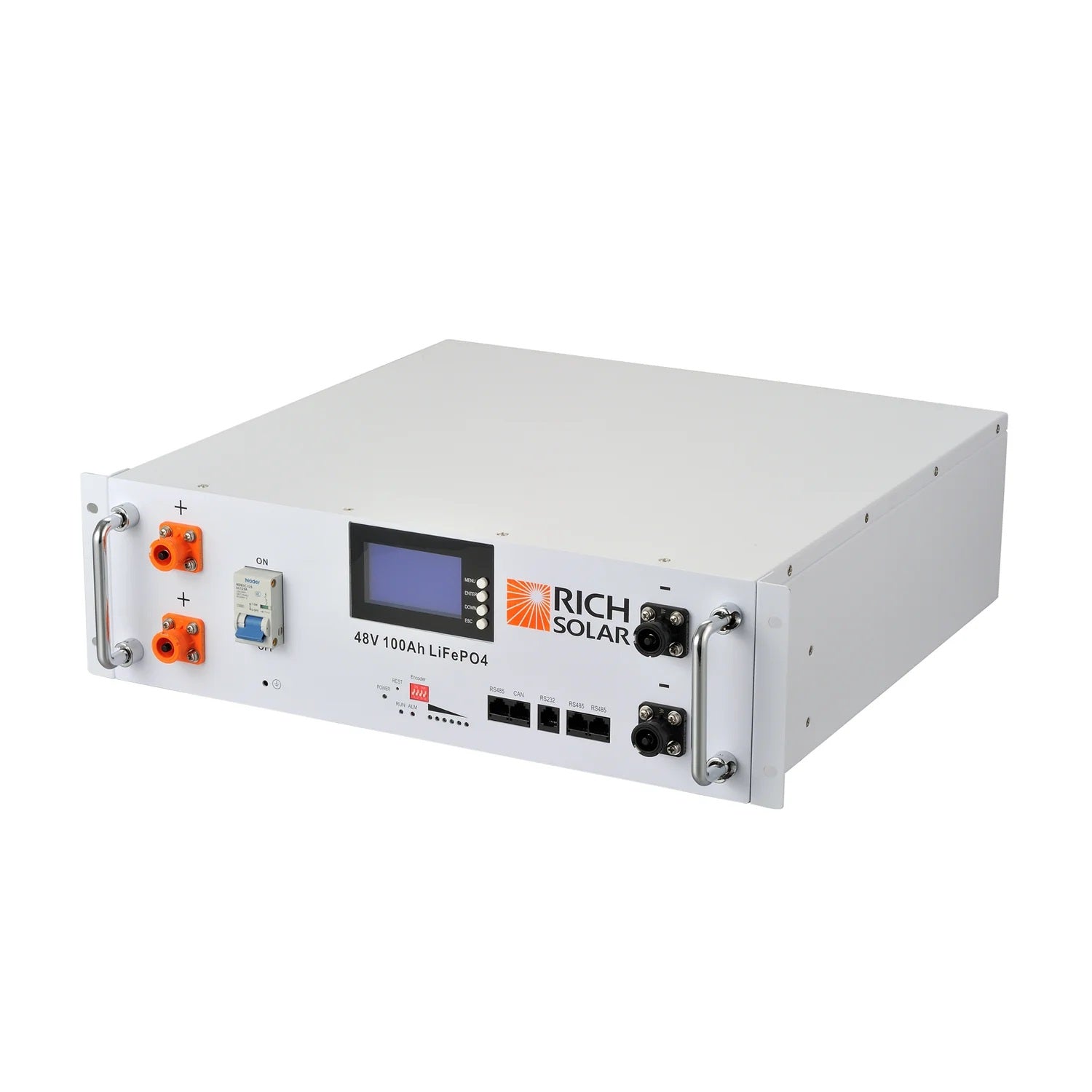

  • Rich Solar Alpha 5 Server Lithium Iron Phosphate Battery Right Side View

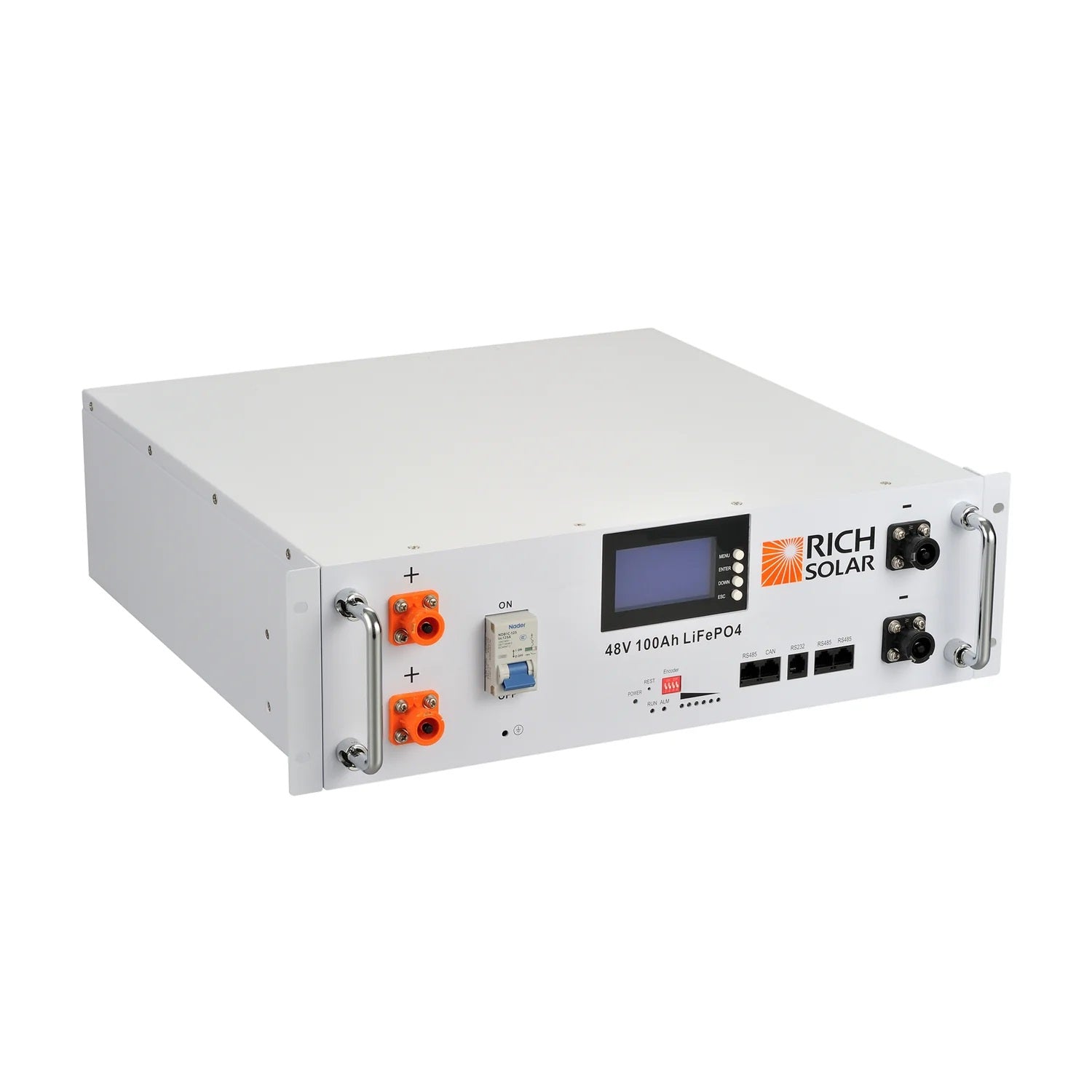

  • Rich Solar Alpha 5 Server Lithium Iron Phosphate Battery Left Side View

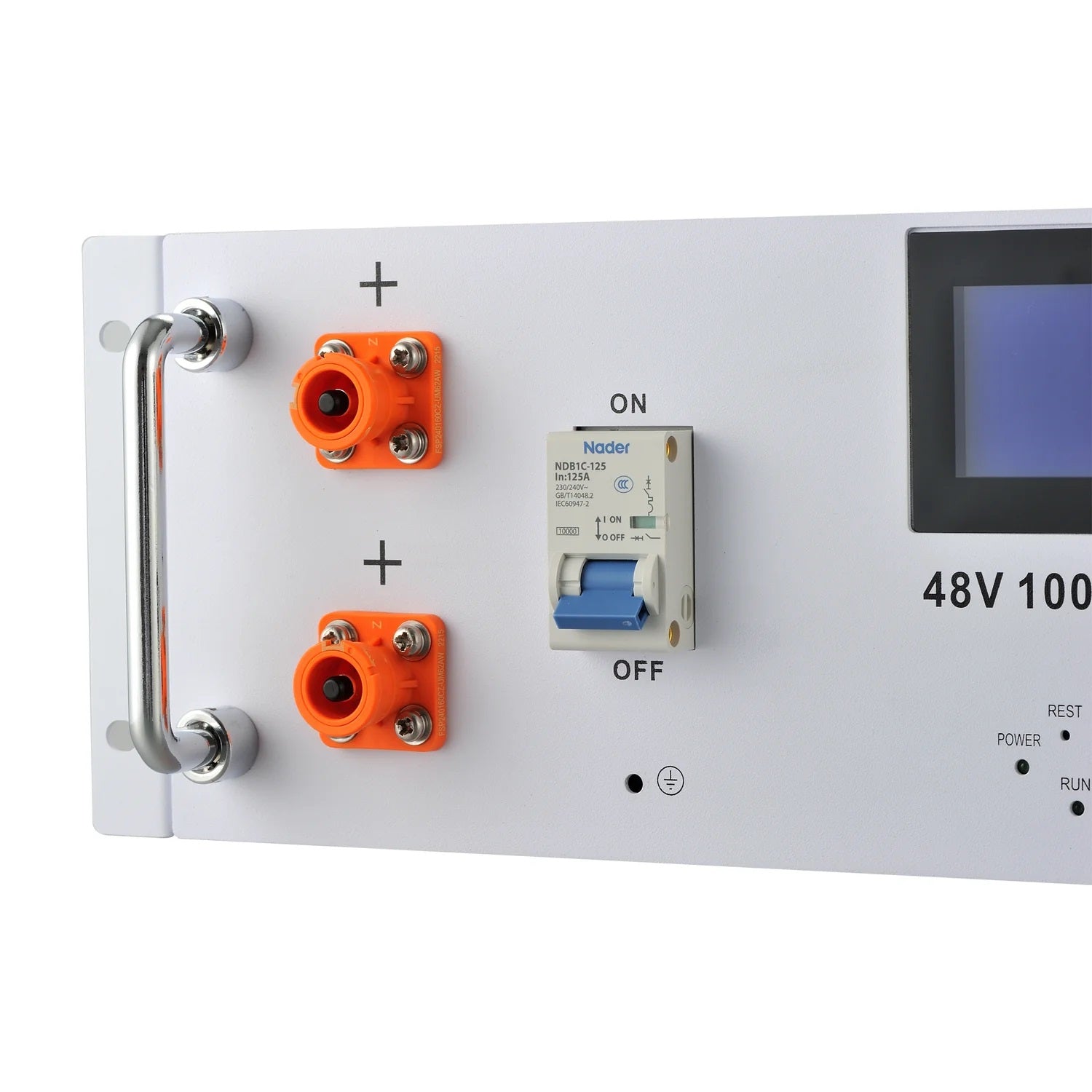

  • Rich Solar Alpha 5 Server Lithium Iron Phosphate Battery Positive Terminal Front Side View

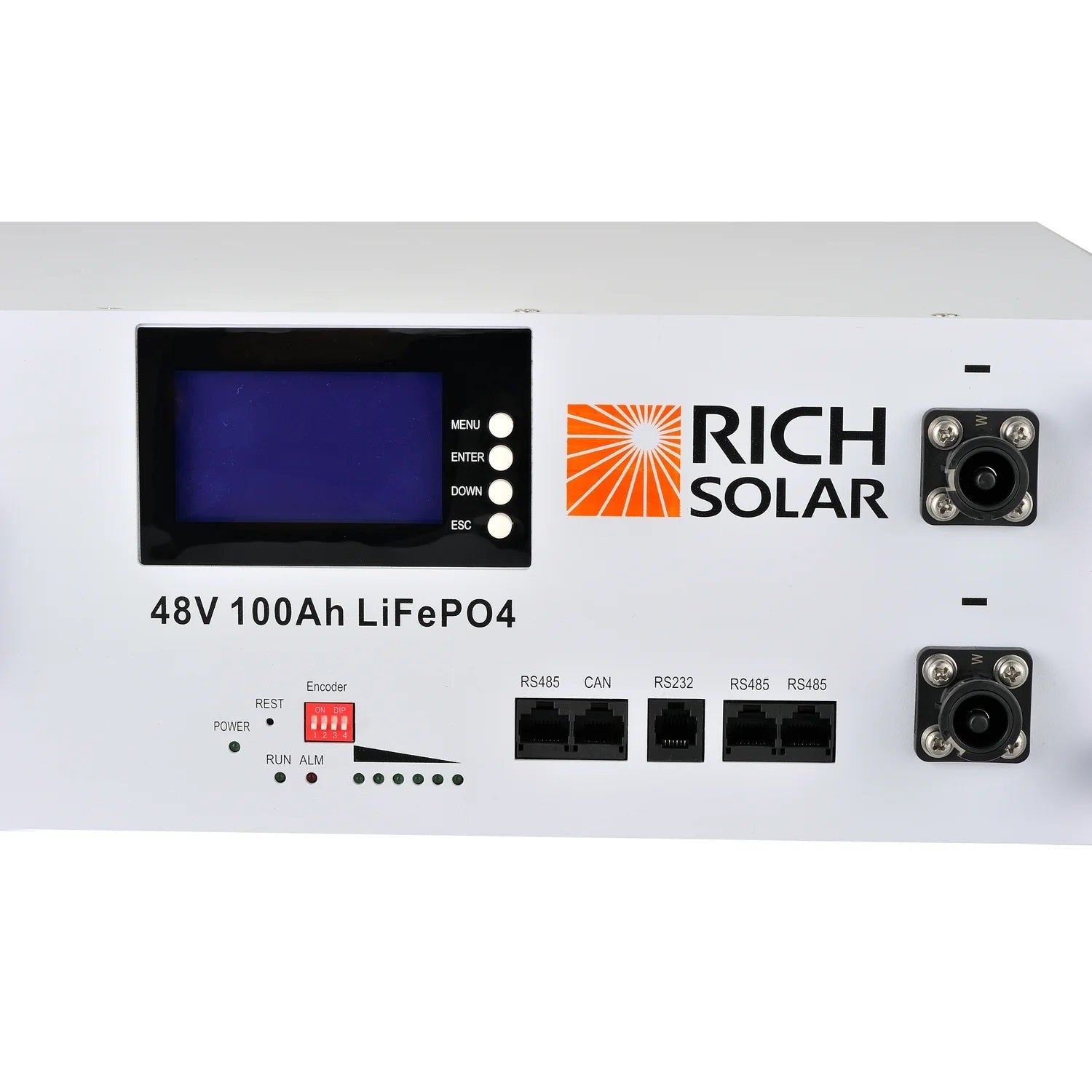

  • Rich Solar Alpha 5 Server Lithium Iron Phosphate Battery Negative Terminal Front Side View

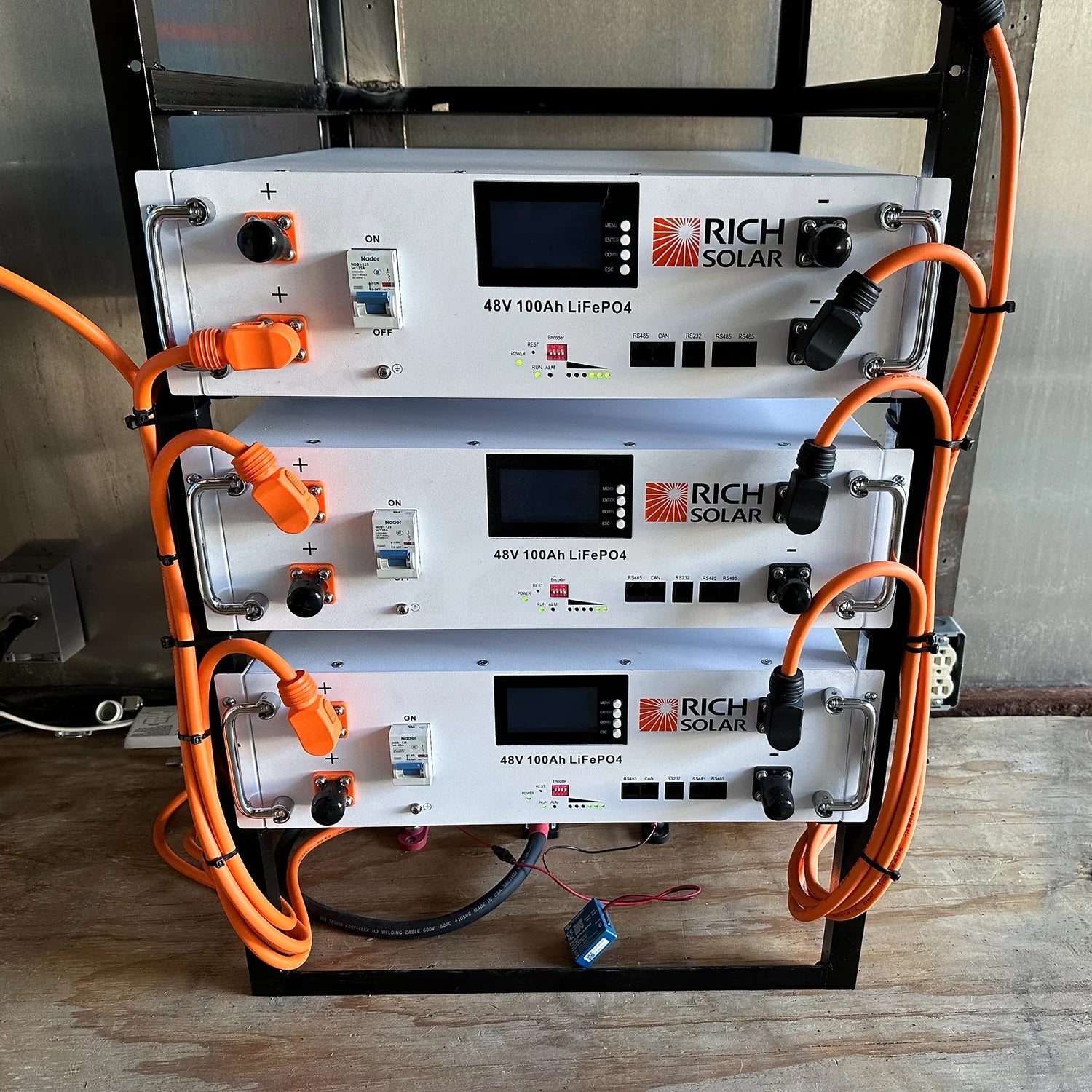

  • Opened Rich Solar Alpha 5 Server Lithium Iron Phosphate Battery Connection 3

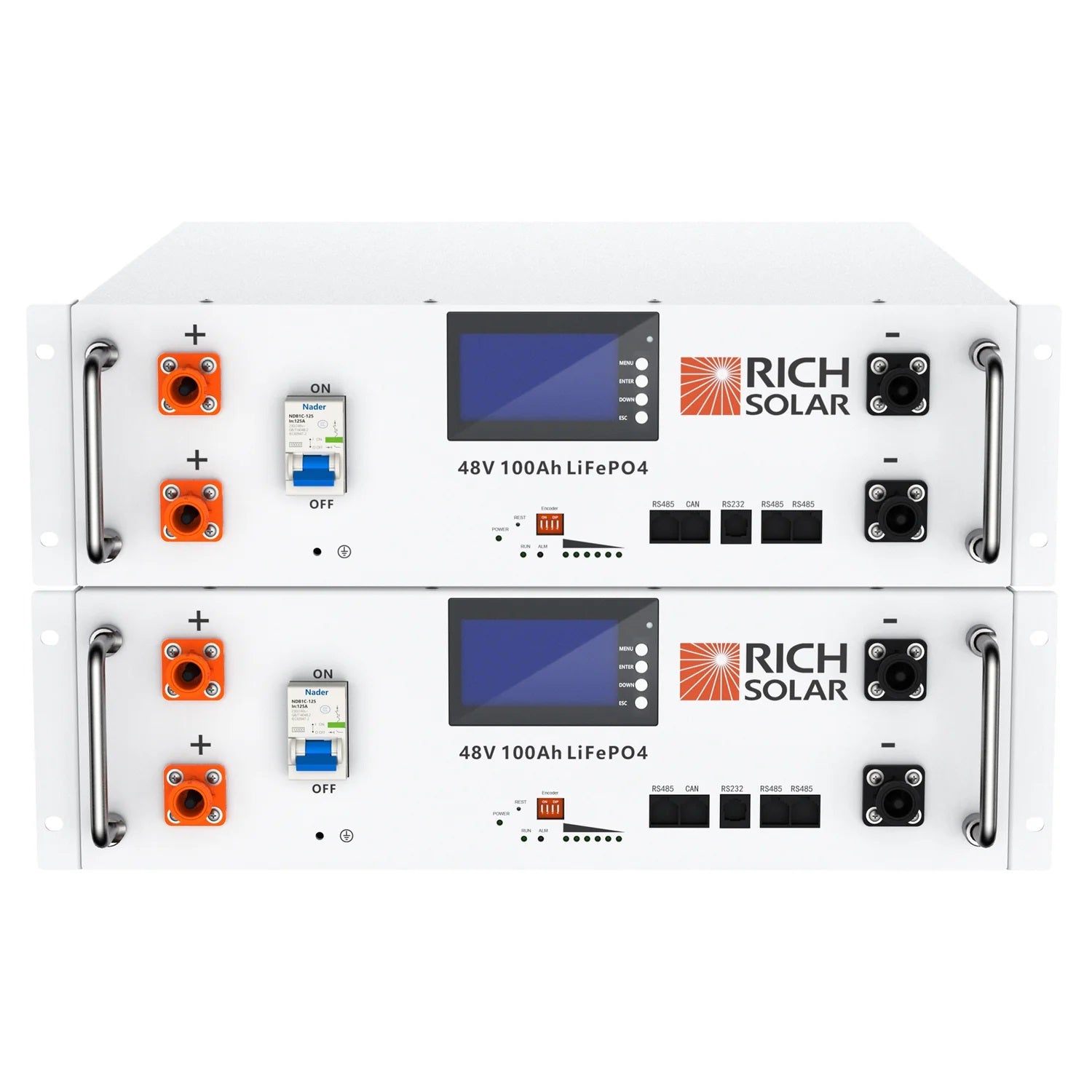

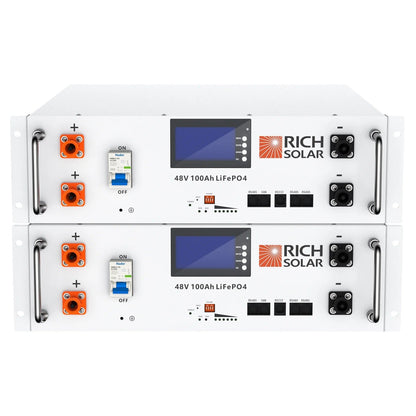

  • Rich Solar Alpha 5 Server Lithium Iron Phosphate 2 Battery Front View

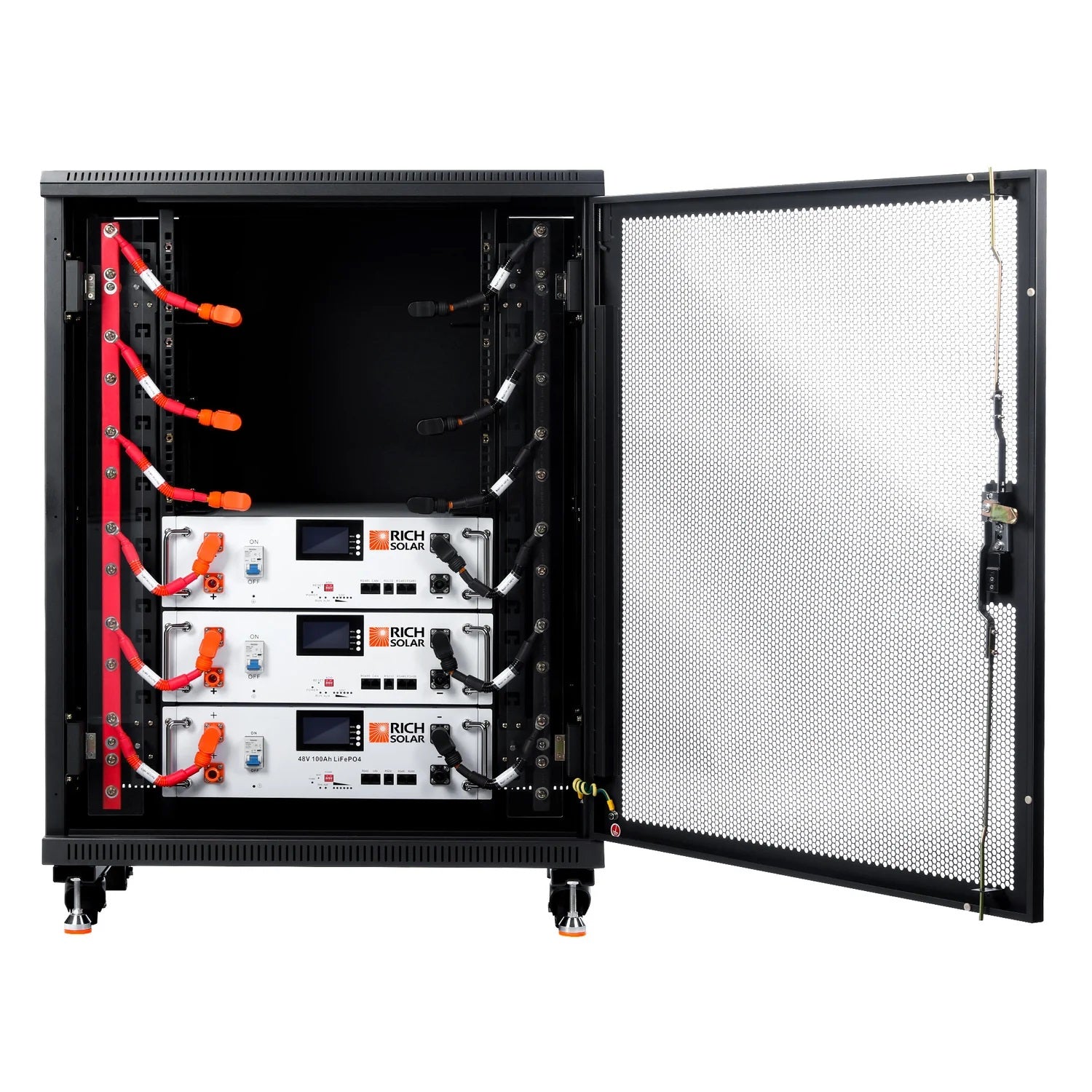

  • Boxed Rich Solar Alpha 5 Server Lithium Iron Phosphate With 3 Battery

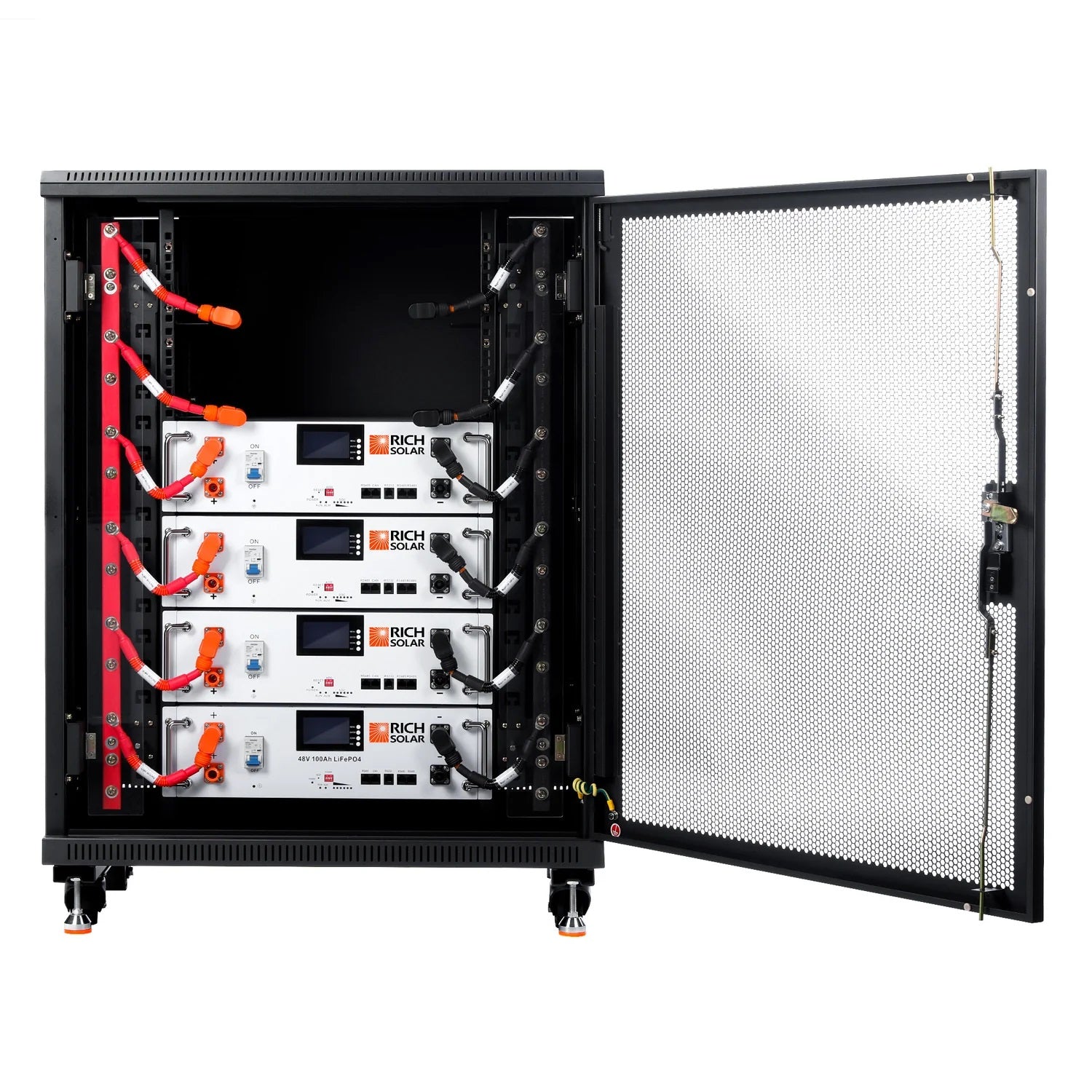

  • Boxed Rich Solar Alpha 5 Server Lithium Iron Phosphate With 4 Battery

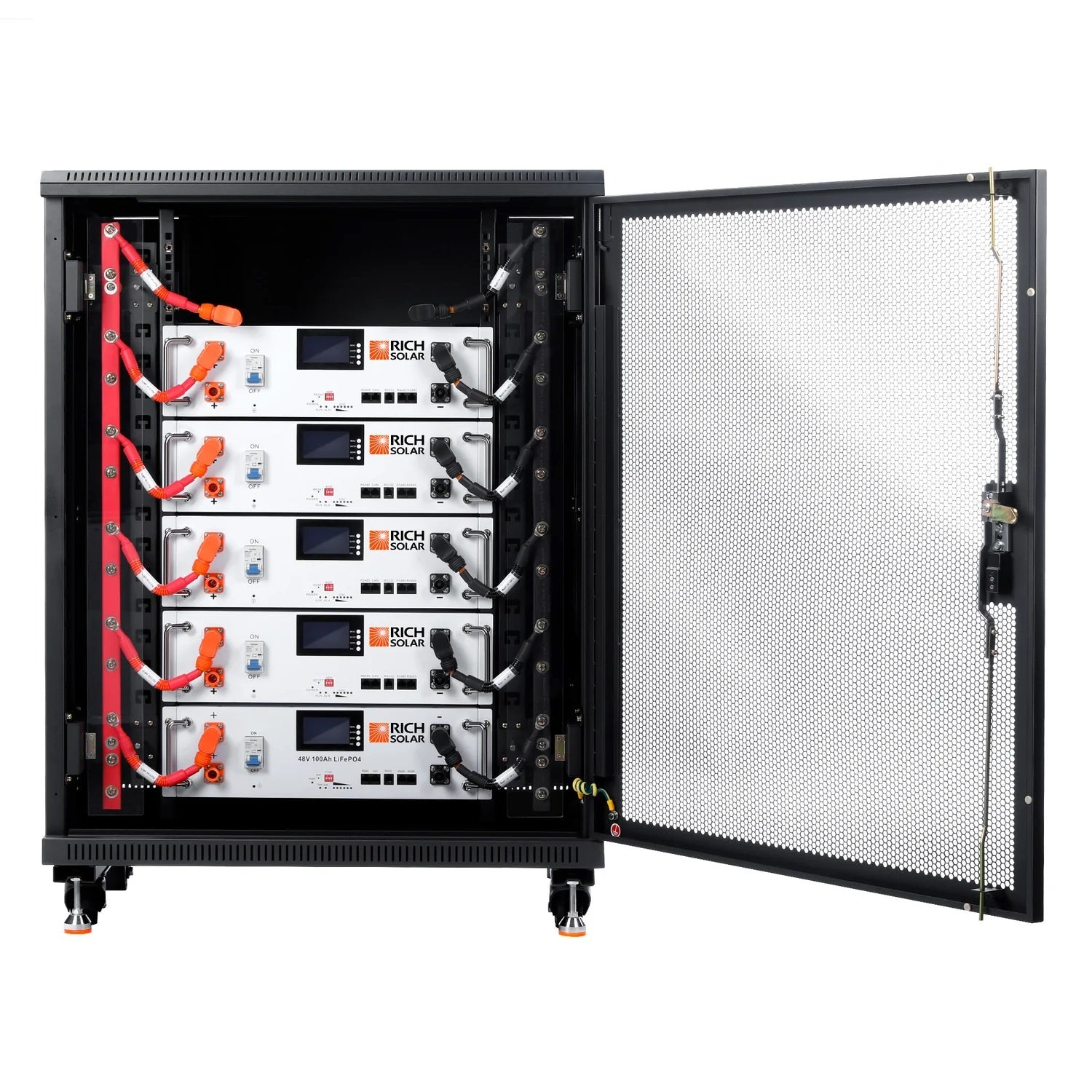

  • Boxed Rich Solar Alpha 5 Server Lithium Iron Phosphate With 5 Battery

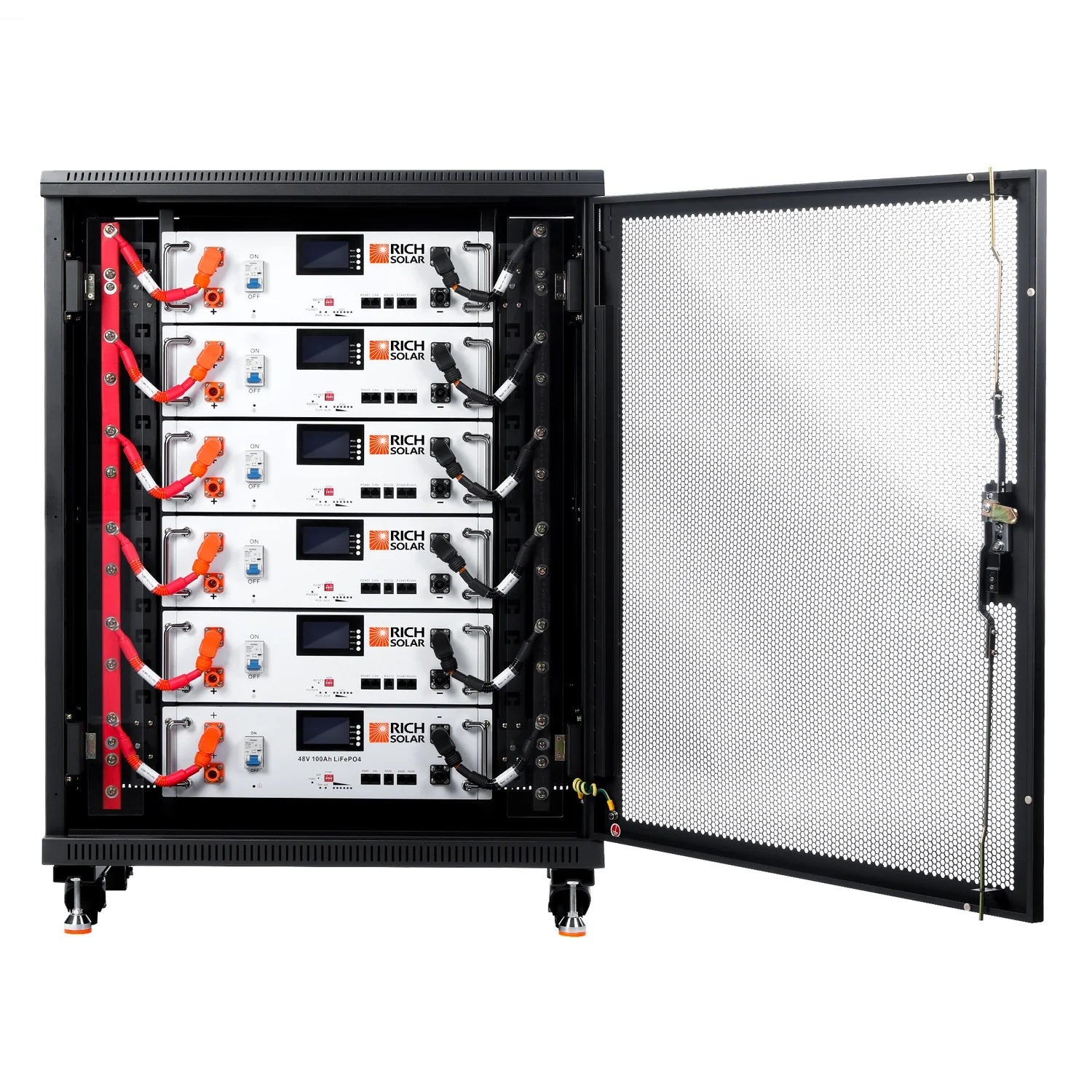

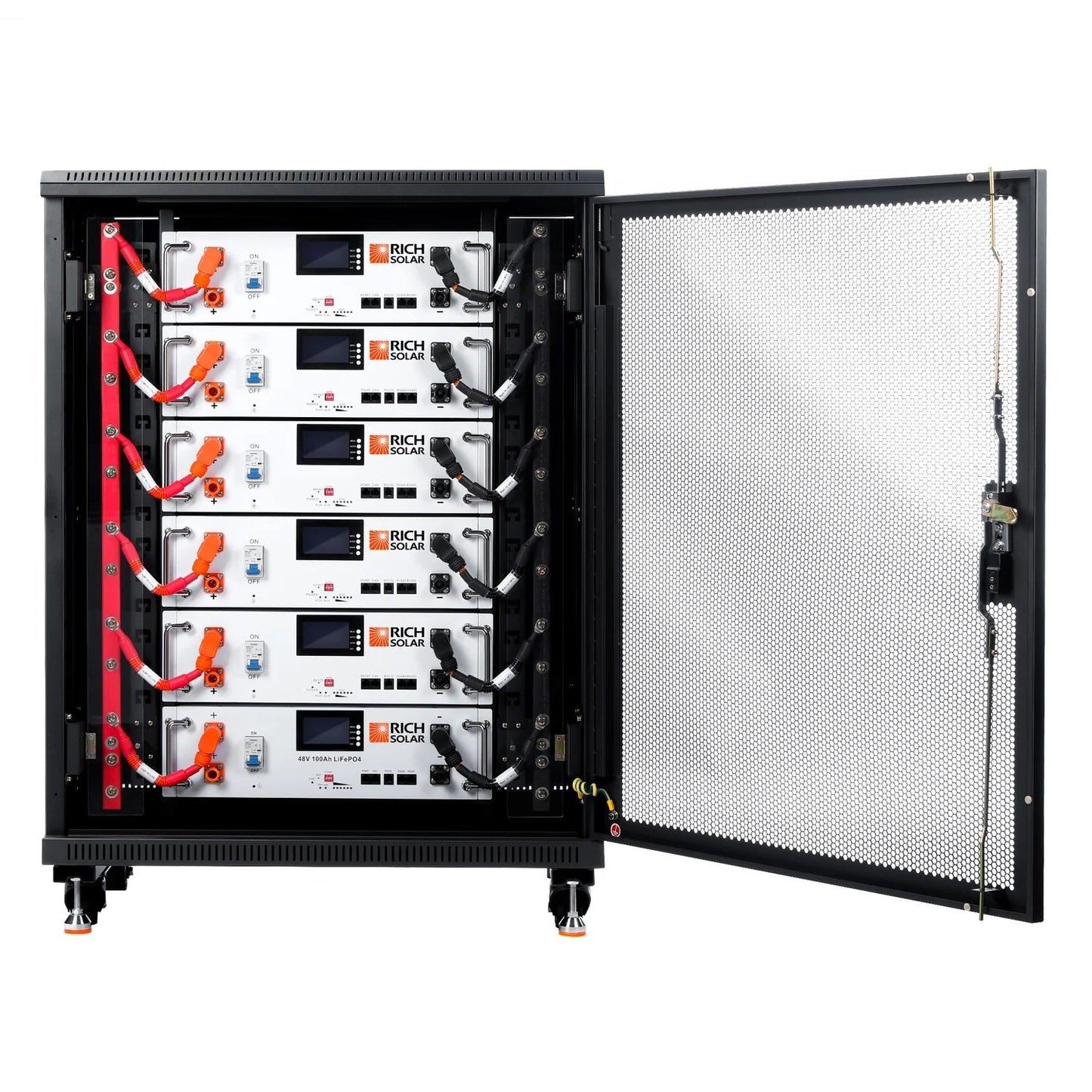

  • Boxed Rich Solar Alpha 5 Server Lithium Iron Phosphate With 6 Battery

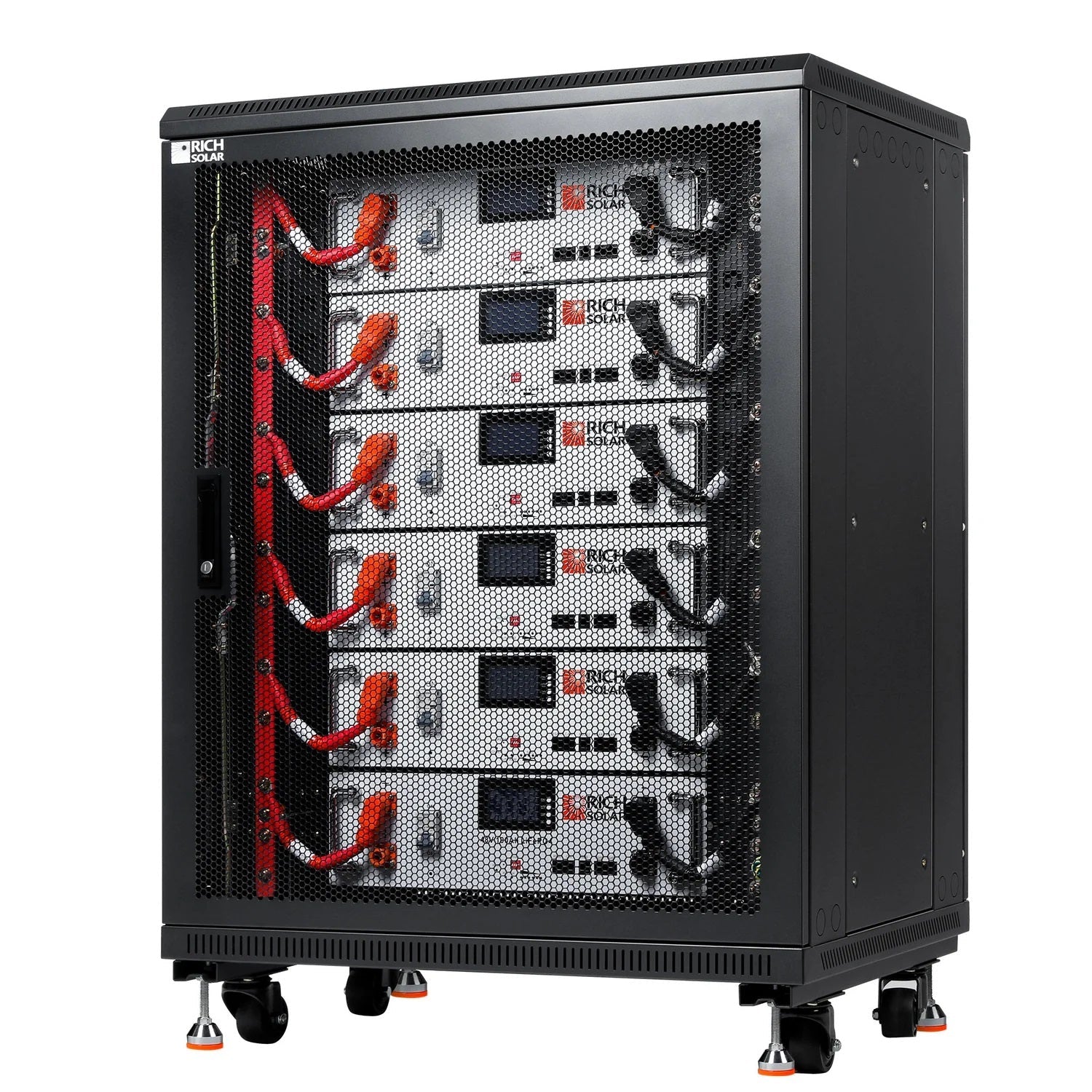

  • Closed Connection Box Rich Solar Alpha 5 Server Lithium Iron Phosphate With 6 Battery

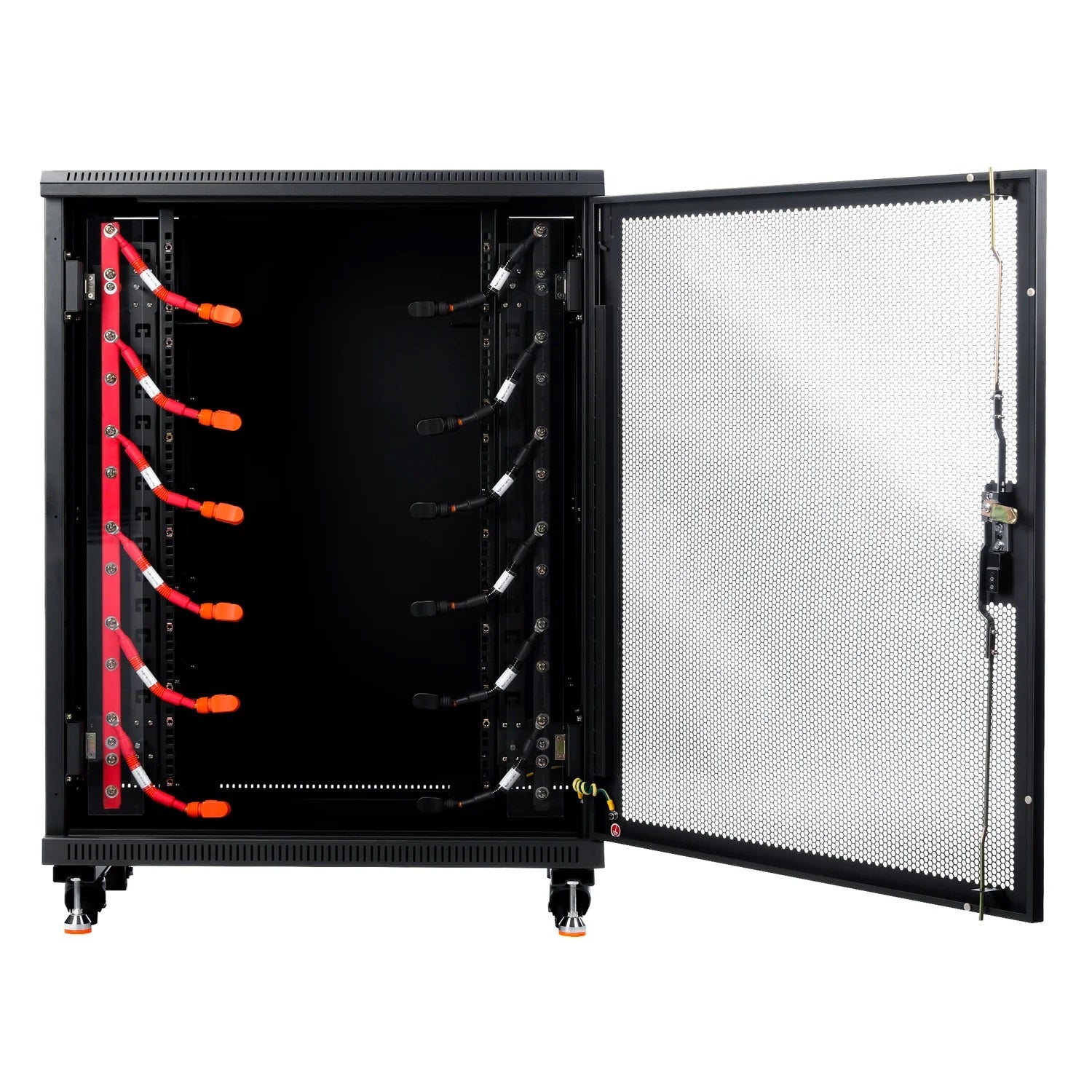

  • Empty Rich Solar Alpha 5 Server Lithium Iron Phosphate Battery Connector Box
1 14

Rich Solar ALPHA 5 Server | 48V 100Ah Lithium Iron Phosphate Battery

Rich Solar

$1,714.29
$1,714.29
In Stock — Ready to Ship
Free Shipping
Mfr. Warranty
Authorized Dealer
Easy Returns

Price Match Guarantee

Found it cheaper? Send us the link and we'll match or beat the price at any authorized retailer.

Email support@thegeneratorsdepot.com Chat Instant Live Chat
View full details

Product Details


Power Your Server With Unmatched Performance And Reliability: Introducing The Rich Solar Alpha 5 Server Lithium Iron Phosphate Battery

Finally, a server battery that can keep up with your demanding needs. The Rich Solar Alpha 5 is a revolutionary lithium iron phosphate (LiFePO4) battery designed specifically for server applications. With its exceptional performance, long lifespan, and robust safety features, the Alpha 5 is the perfect choice for businesses that require uninterruptible power for their critical IT infrastructure.


Rich Solar Alpha 5 Server Lithium Iron Phosphate Battery Features

  • Extremely high number of charge/discharge cycles
  • 20 Year lifespan with proper maintenance
  • Built-in smart battery management system
  • Wide operating temperature range
  • Unsurpassed high temperature performance
  • Green energy without metal contaminant
  • Low maintenance
  • High amp capacity
  • Stable output voltage
  • Little self-discharge
  • Lifetime customer support
  • Over charging or discharging protection.
  • Over current & short circuit protection.
  • High & low temperature disconnects
  • Charge Voltage: 52.5V
  • Max Charge Current: 100 A
  • Max Discharge Current: 100 A
  • Battery Dimensions: 19″L x 18 3/4″W x 5 1/4″H
  • Weight: 130 lb
  • Connect in Parallel for Larger Capacity



BMS Safety Protection

  • Each cell is fused and if for some unlikely situation a cell fails, this design will isolate the cell stopping any other damage and allows the battery to function safely
  • Convenient removable carry handle
  • Lightweight
  • Short circuit protected
  • Physical damage to battery case will not cause fire
  • Excessive thermal exposure will not cause a fire
  • Able to withstand over-charge/over-discharge without damage to the battery
  • Sophisticated Battery Management System (BMS)



What's In The Box

  • 1 x Rich Solar 4.8kWh (48V 100Ah) lithium iron phosphate battery
  • 1 x 1 foot RS485 communication cable
  • 1 x Set of parallel cables per battery



10-Year Warranty

  • Rich Solar provides a 10-year Manufacturer Defect for this solar battery.



Rich Solar Alpha 5 Server Lithium Iron Phosphate Battery Specifications

Electrical Specifications

Nominal Voltage:
48V
Nominal Capacity(at .5C, 77°F): 100Ah
Minimum Capacity (at .5C, 77°F): 95Ah
Expected Cycle Life:  >7000 cycles w/1C charge and discharge rate, at 77°F, 80% DOD


Operating Specifications

Charge Method: Smart charger, constant current, constant voltage
Operating Voltage:  48 V
Capacity:  100 Ah
Energy: 5120 Watt Hours
Charge Voltage Range (Max 52.5):  52.0 -52.5V
Continuous Charge Current:  100A
Continuous Discharge Current:  100A
Over Voltage Shutdown: 52.5 +/-0.2V
Discharge Cut-off Voltage:  42V =/- 0.5V
Self Discharge (stored at 50% SOC):  < 3%/month
Waterproof:  IP65


Temperature Performance

Charge Temperature: 32° F to 140° F
Discharge Temperature:  -4° F to 140° F
Storage Temperature: -4° F to 140° F
BMS High Temperature Cut-off:

149°F
BMS Low Temperature Cut-off:

32°F


Physical Specifications

Battery Dimensions: 19″L x 18 3/4″W x 5 1/4″H
Weight:  130 lb
Group Size: 15


Battery Server Rack Specifications

Battery Server Rack Dimensions: 39″L x 32″W x 24″H
Weight: 159 lb
Thickness: Frame 1.5mm, top/bottom plate 1.2mm, column 2.0mm, mesh door plate 1.2mm, side plate (screw fixed) 1.0mm, L-shaped bracket 2.0mm;
Material: High-quality cold-rolled steel plate
Protection level: IP20
Packaging: Carton + wooden pallet




BMS Operation

Over Charge Protection

Over charge detection voltage: 3.9 +/- 0.05V
Over charge detection delay time:  0.96 – 1.4s
Over charge release voltage:  3.80 +/-0.05V
Maximum charge voltage: 3.65 +/-0.05V


Over Discharge Protection

Over discharge detection voltage:  2.0V +/- 0.05V
Over discharge detection delay time: 115-173ms
Over discharge release voltage:  2.3V +/- 0.10V
Over Current Protection Over current detection delay time: 9 +/- 2ms
Over current release condition: Cut load
Polarity Reverse Protection: Yes
Short Circuit Protection: Yes
