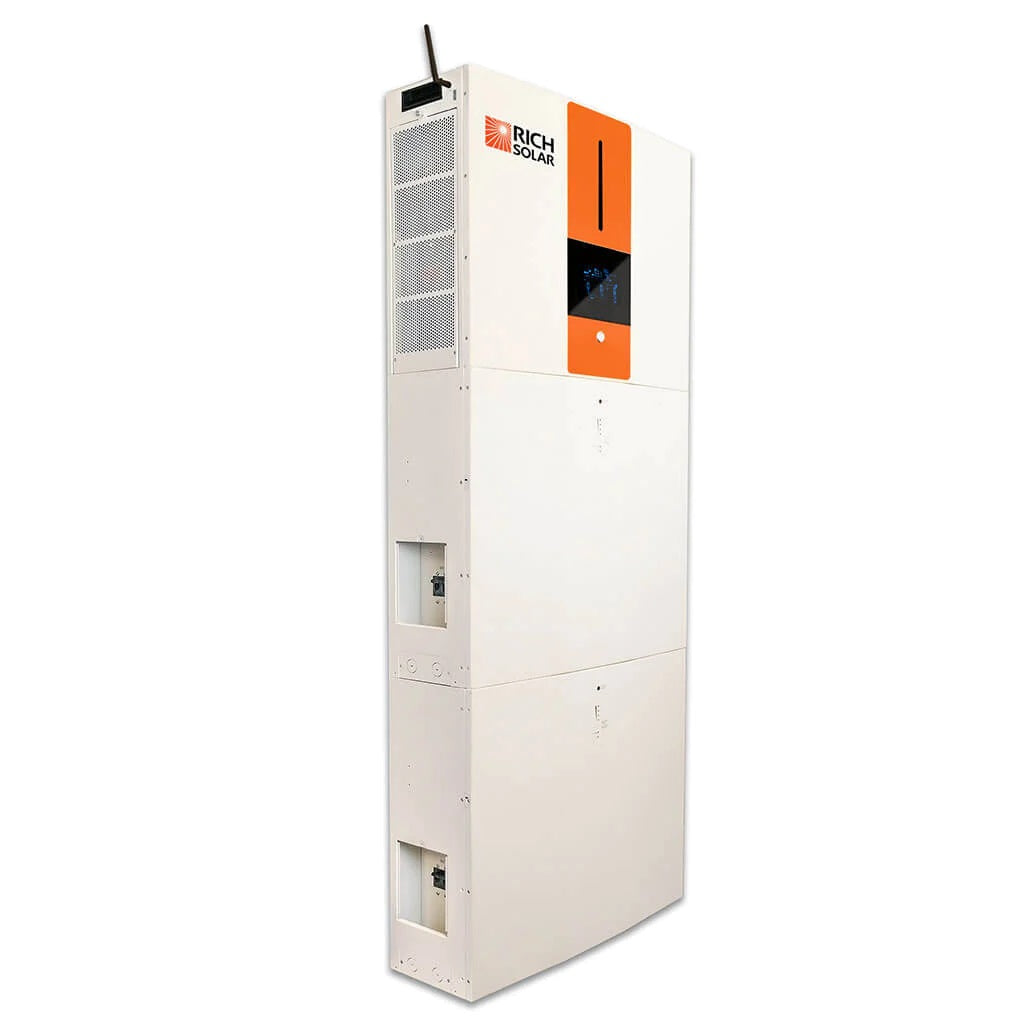

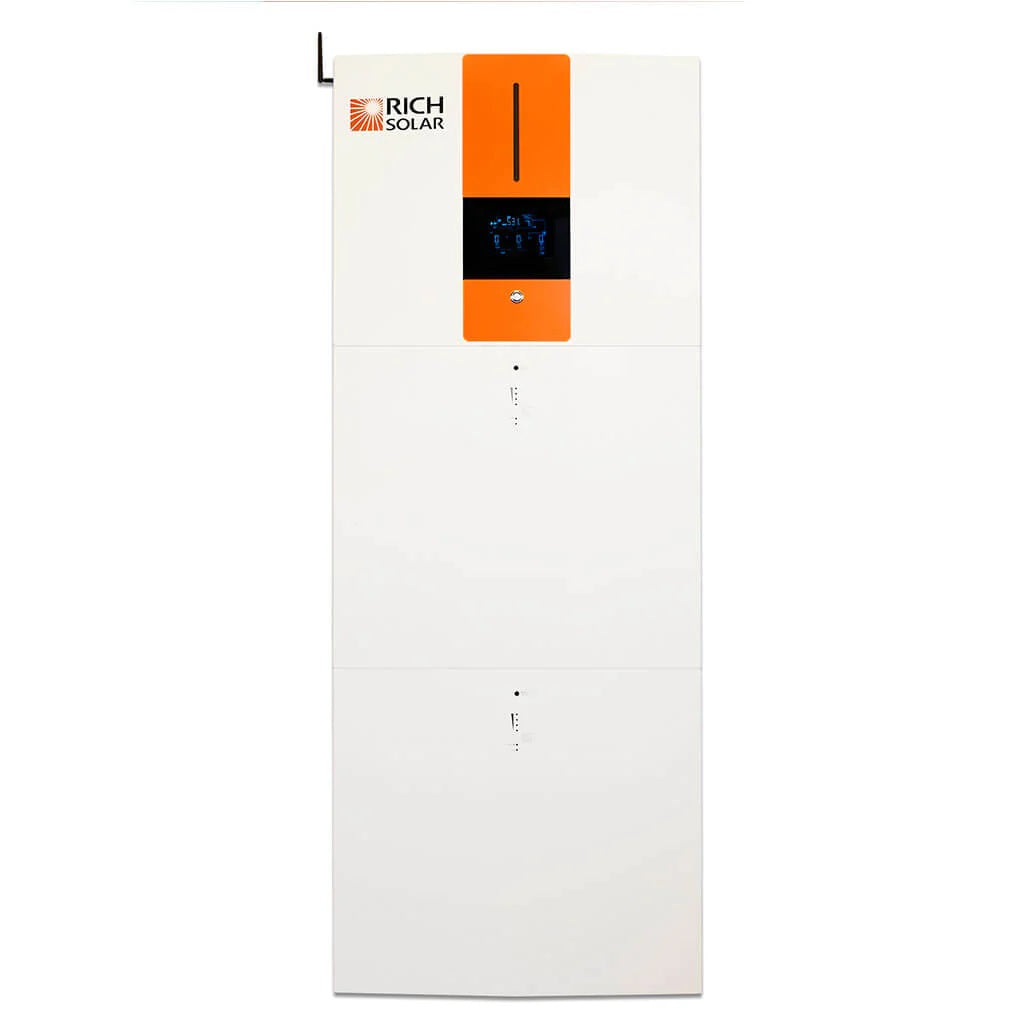

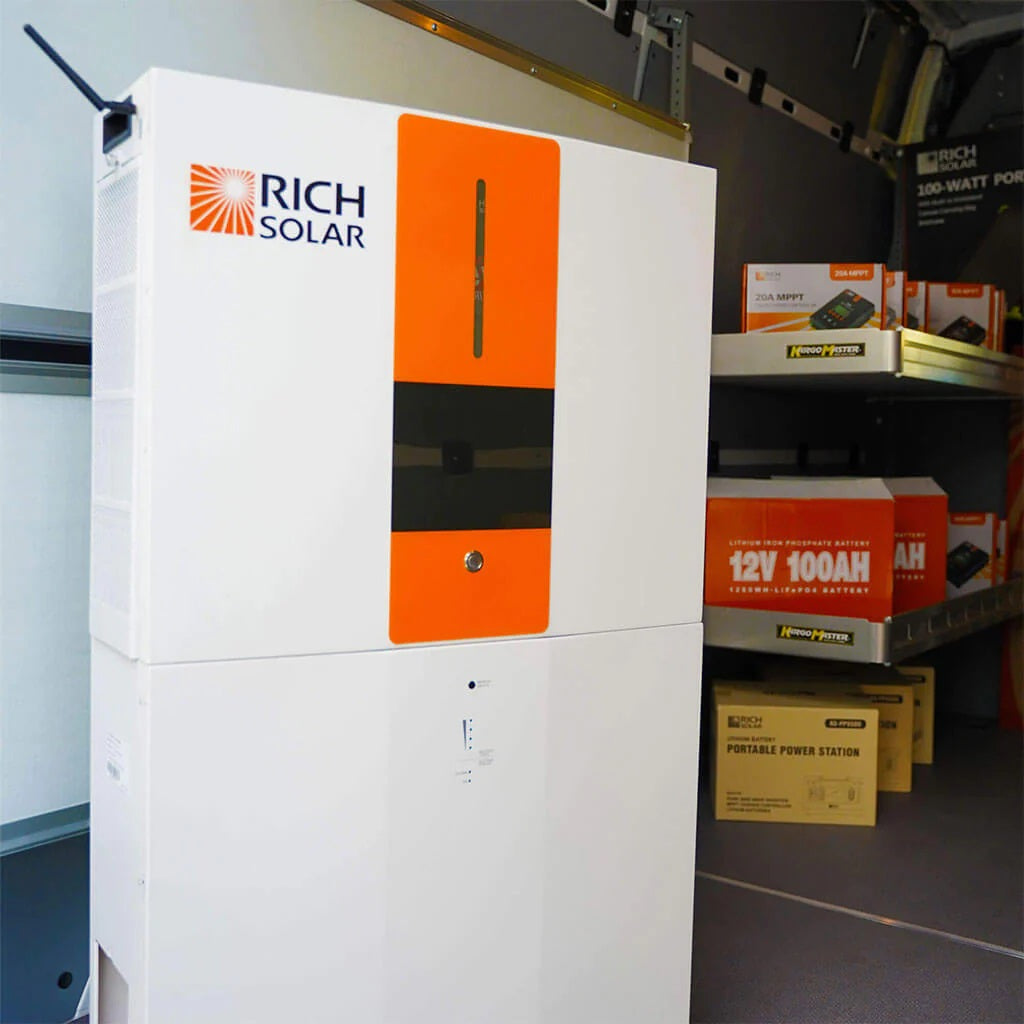

Rich Solar All-in-One Energy Storage System

Power Your Home, Your Way With The Rich Solar All-in-One Energy Storage System

Take control of your energy independence with the Rich Solar All-in-One Energy Storage System. This innovative solar power solution integrates everything you need for clean, reliable electricity into a single, compact unit. Whether you're seeking backup power during outages or aiming for complete energy self-sufficiency, the Rich Solar system empowers you to manage your home's energy use more effectively.

The compact design of an All-in-One Energy Storage System makes it an attractive option for those with limited space, or for those who want a more discreet installation. It can also be easier to install and maintain compared to larger energy storage systems, which may require more extensive wiring and infrastructure.

Rich Solar All-in-One Energy Storage System Features

Pure Sine Wave Output Delivers Safe Power

This feature provides clean electricity, protecting sensitive devices and appliances, ensuring they operate smoothly without any fluctuations or disturbances, making it ideal for your home’s essential electronics.

Off-Grid Capability Ensures Energy Independence

Remain powered even during outages with this off-grid system. It allows you to generate and store energy independently, providing reliable electricity in remote locations or any time the grid goes down.

Programmable Supply Priority Maximizes Efficiency

Easily select solar, battery, or grid power mode. This programmable feature optimizes how you draw energy, ensuring you use the most efficient sources available while minimizing energy costs and maximizing savings.

Real-Time Monitoring App Keeps You In Control

Manage your energy usage anytime with this user-friendly app. Available for Android and iOS, it provides live updates on your system's status, allowing for quick adjustments and greater oversight.

Scalable Battery Expansion Grows With Your Needs

As your energy demands increase, easily expand your storage. This flexible system allows for additional Li-Ion batteries, enabling you to adapt and ensure an uninterrupted power supply without needing to replace the entire unit.

Built-In MPPT Provides Optimal Solar Harvesting

Maximize solar input with dual Maximum Power Point Trackers. This feature ensures that your system efficiently captures solar energy under various conditions, increasing the amount of power you can store and use daily.



What's Included

Inverter Package

• 1 x Inverter module
• 1 x Battery cable #B1-I
• 1 x Software CD
• 1 x Manual
• 1 x WiFi antenna
• 1 x BMS cable
• 1 x Mounting brackets
• 3 x Flat-head screws
• 4 x Mounting screws
• 4 x Nylon-Plug
• 1 x Bracket cover
• 8 x Round-head screws
• 1 x Parallel cable
• 1 x Share current cable

Battery Module Package

• 1 x Battery module
• 1 x Battery cable #B-B
• 1 x Top-bracket
• 1 x Bottom-bracket
• 2 x L-shape plate
• 4 x Round-head screws
• 7 x Flat-head screws
• 8 x Mounting screws
• 8 x Nylon-Plug
• 1 x RJ11 cable
• 1 x RJ11 signal cable
• 2 x Ball screws

Optional Accessory

• 1 x Wiring cove
• 4 x Thumb screws
• 1 x Battery cable #BI-2
• 1 x Battery cable #B2-B
• 1 x DC switch
• 1 x Maintenance bypass switch
• 2 x Thumb screws
• 1 x Breaker cover

Rich Solar All-in-One Energy Storage System Instructional Videos

Rich Solar All-in-One Energy Storage System Specifications

Model:	RS-A10
Maximum PV Input Power:	8000W
Rated Output Power:	6500W
Maximum Charging Power:	6500W
PV INPUT (DC)
MPPT Range @ Operating Voltage:	90 ~ 230 VDC
Maximum PV Array Open Circuit Voltage:	250 VDC
Maximum Solar Charge Current:	120A
Number of MPP Trackers / Maximum Input Current:	2 / 2 x 18 A
AC INPUT
Acceptable Input Voltage Range:	90-140 VAC (For Computers)
	80-140 VAC (For Home Appliances)
Maximum AC Input Current:	60A
BATTERY MODE OUTPUT
Nominal Output Voltage:	120 VAC
Maximum Conversion Efficiency (DC/AC):	93%

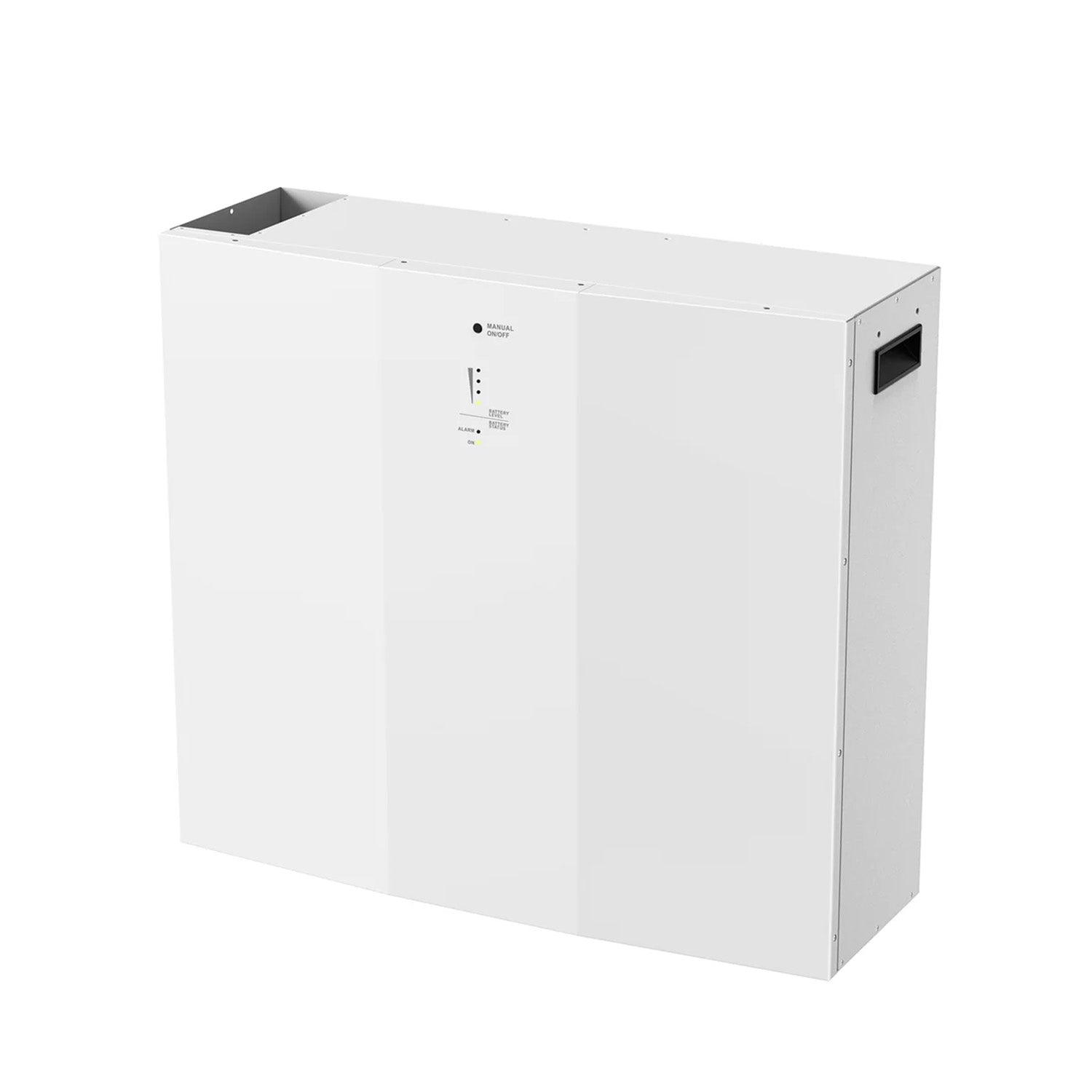

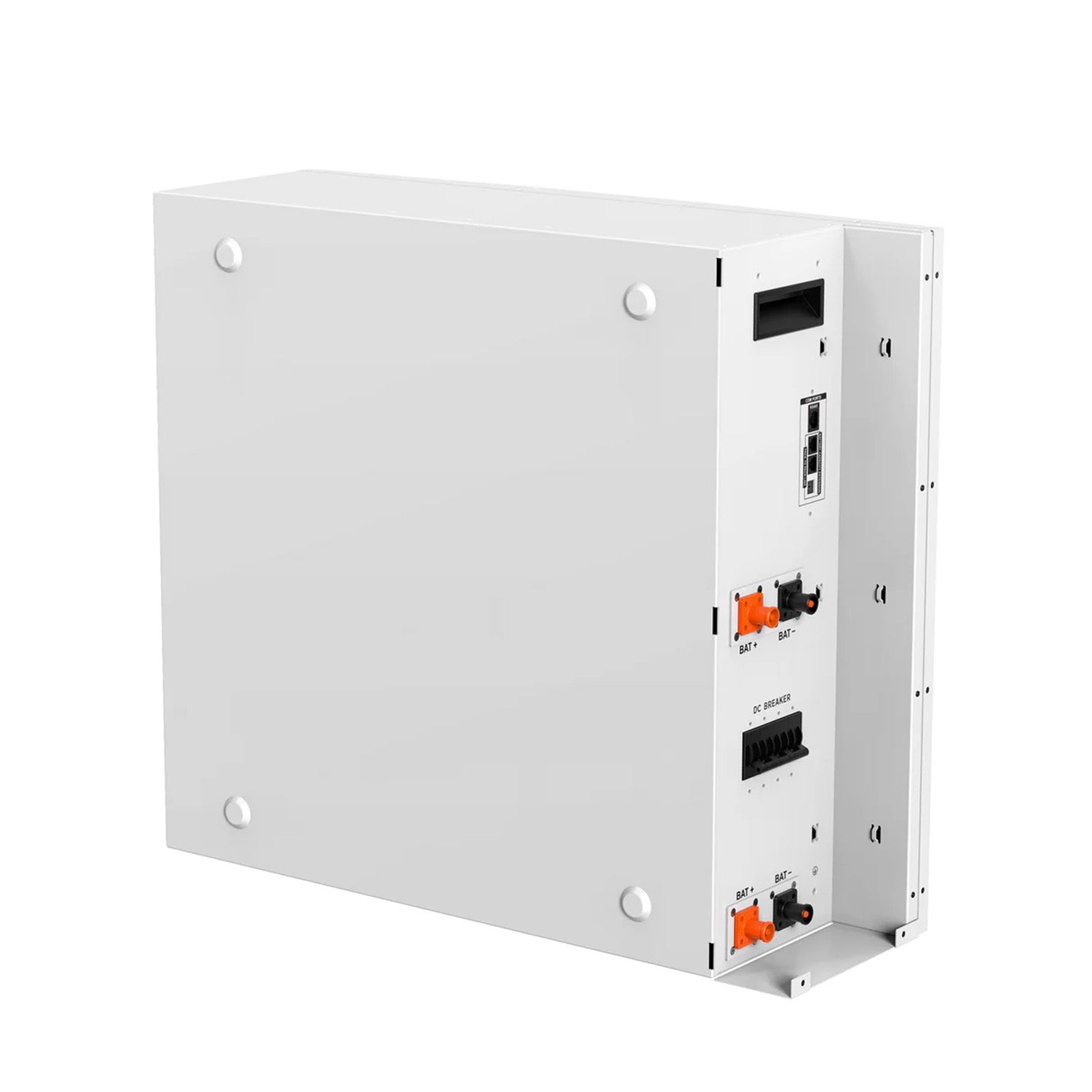

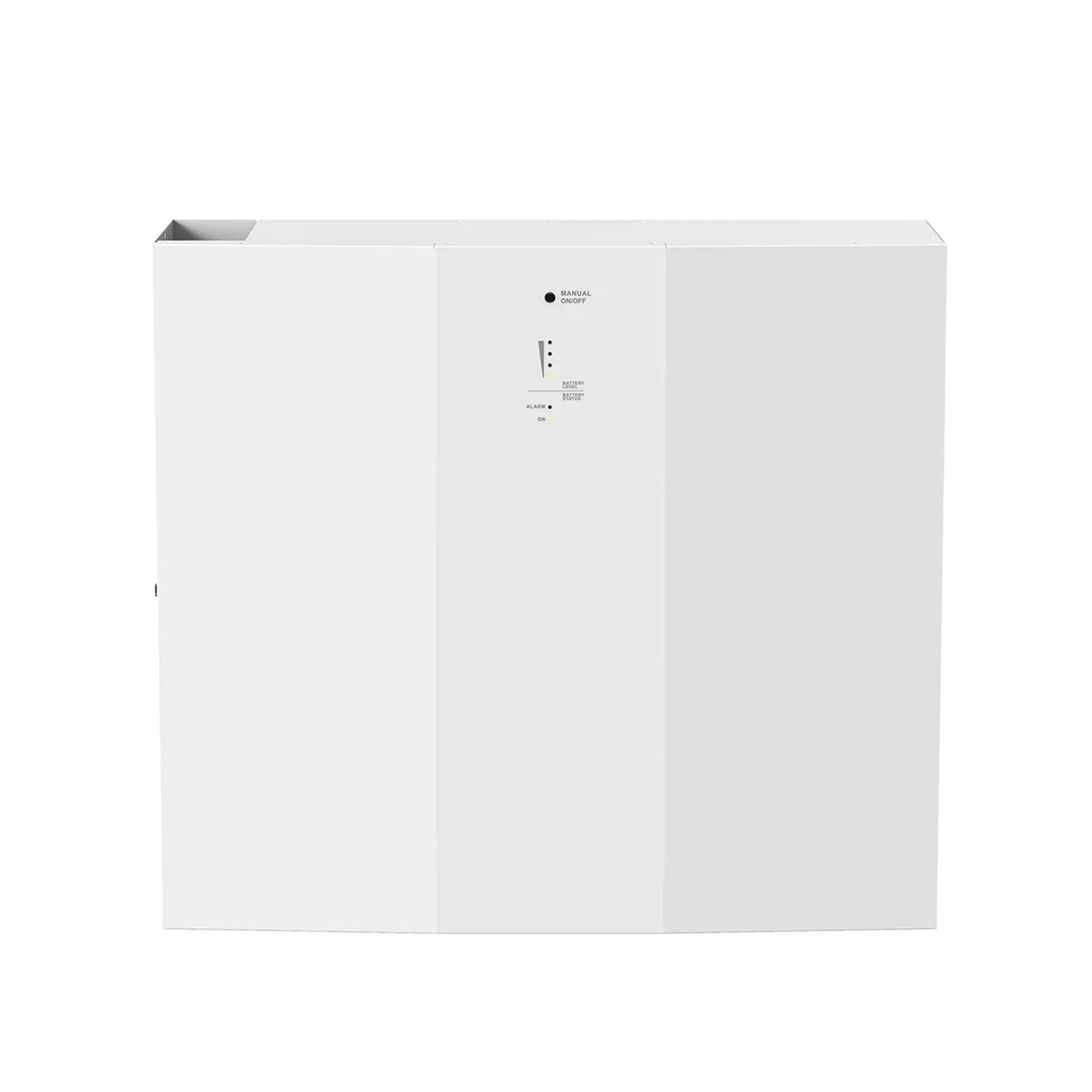

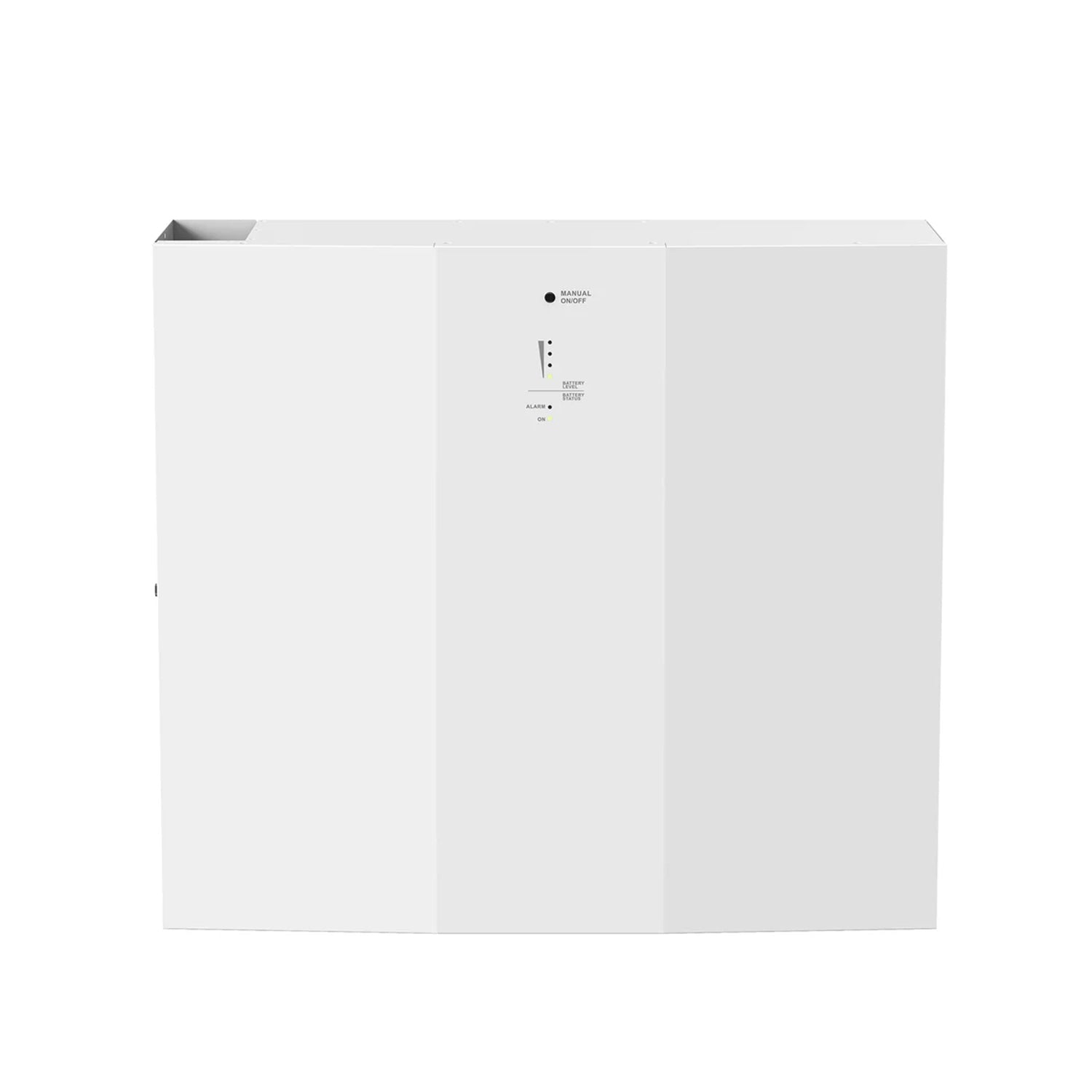

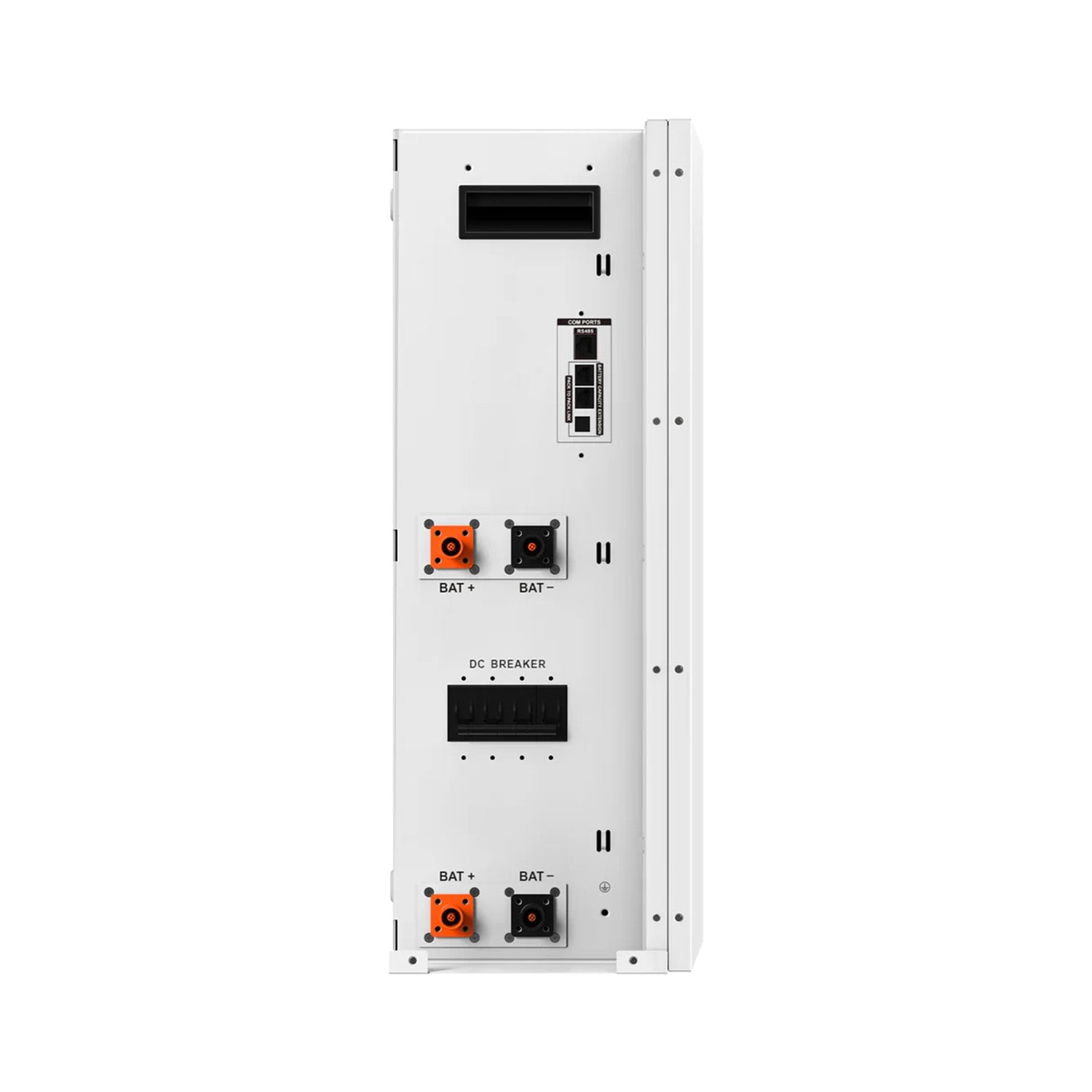

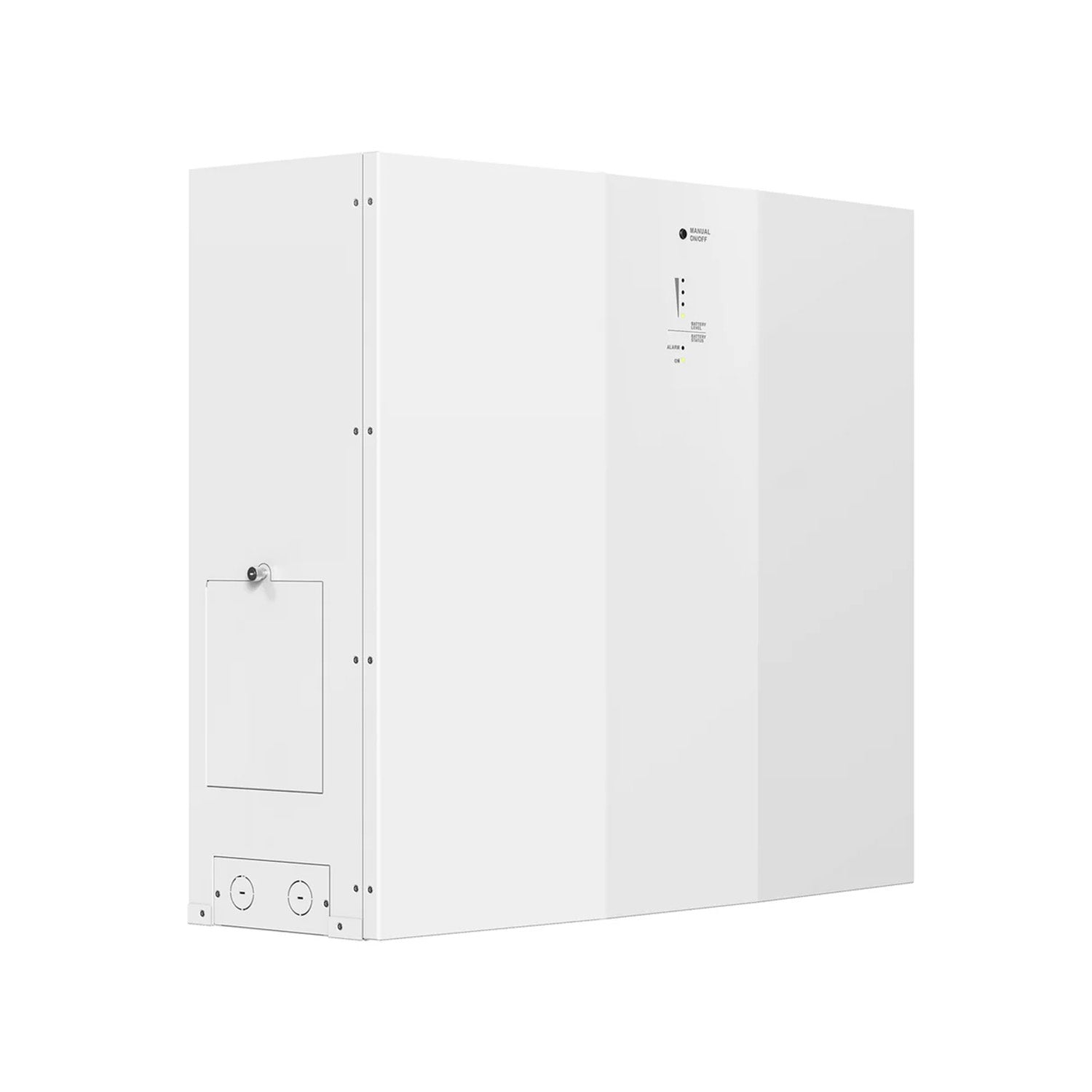

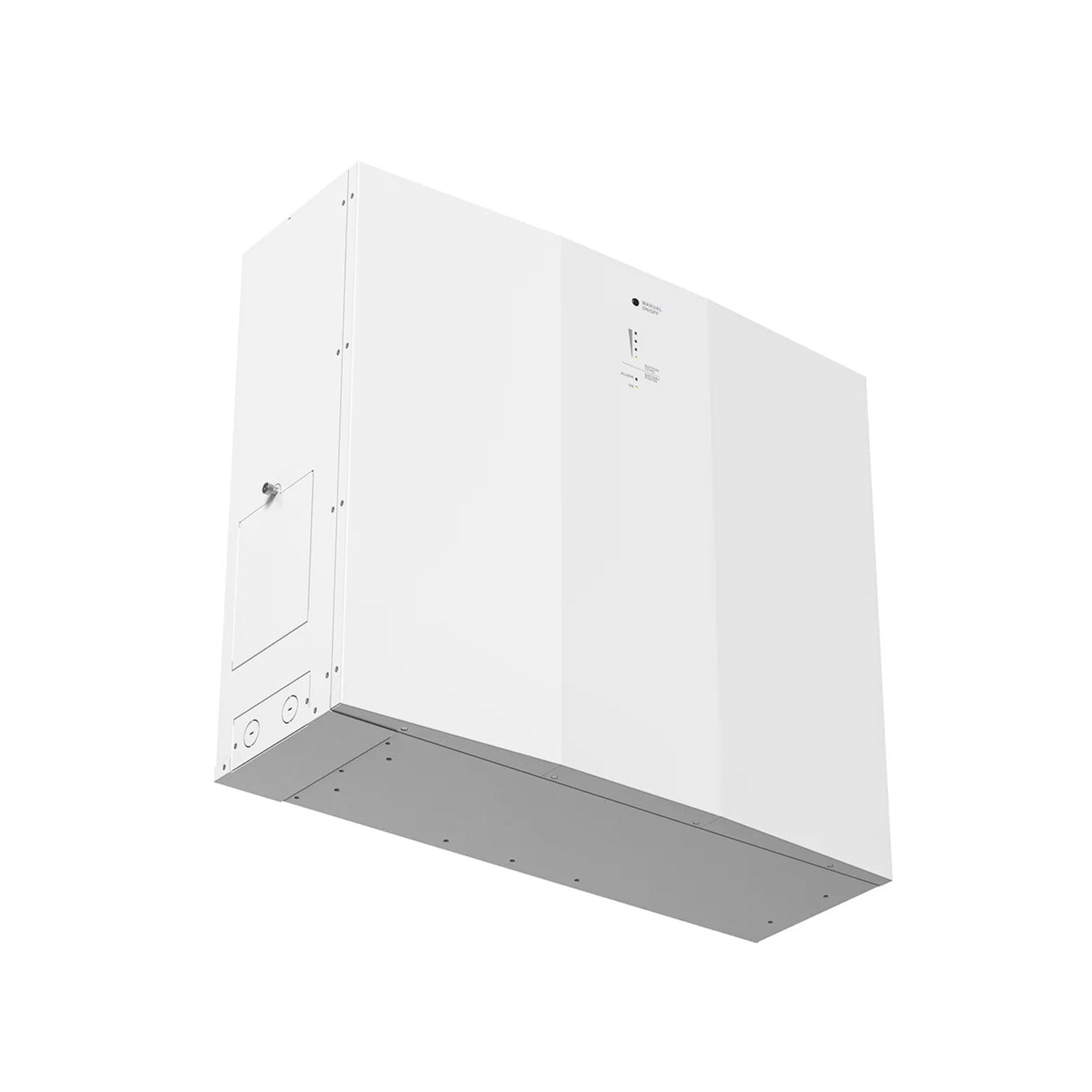

BATTERY SPECIFICATIONS
Nominal DC Voltage:	48 VDC
Maximum Charging Current:	120 A
Dimension:	(D x W x H): 8.4″ x 24.4″ x 19.7″
Net Weight:	99 lb
Capacity:	5120Wh
Nominal Voltage:	51.2VDC
Full Charge Voltage(FC):	56V
Full Discharge Voltage(FD):	42V
Typical Capacity:	100 Ah
Max Continuous Discharging Current:	120A
Max Discharging Current:	192A at 1 min
Protection:	BMS, Breaker
Float Charge Voltage:	52.5V
Charge Current:	20A (0.2C)
Maximum Charge current:	50A (0.5C)
Standard Charge method:	0.2C CC (Constant current) charge to FC, CV (Constant voltage FC) charge till charge current declines to <0.05C
Inner Resistance:	≤20m ohm
ALL IN ONE SYSTEM
System Dimension (D X W X H):	19.7″ x 26″ x 49.2″
Net Weight:	287 lb
SAFETY STANDARD
Compliance Safety:	IEC 62619, EN 61000-6-3, EN 61000-6-1, UKCA, UN38.3, UL 1741, CSA C22.2 No.107.1-16, FCC PART 15B

Rich Solar All-in-One Energy Storage System Manual
