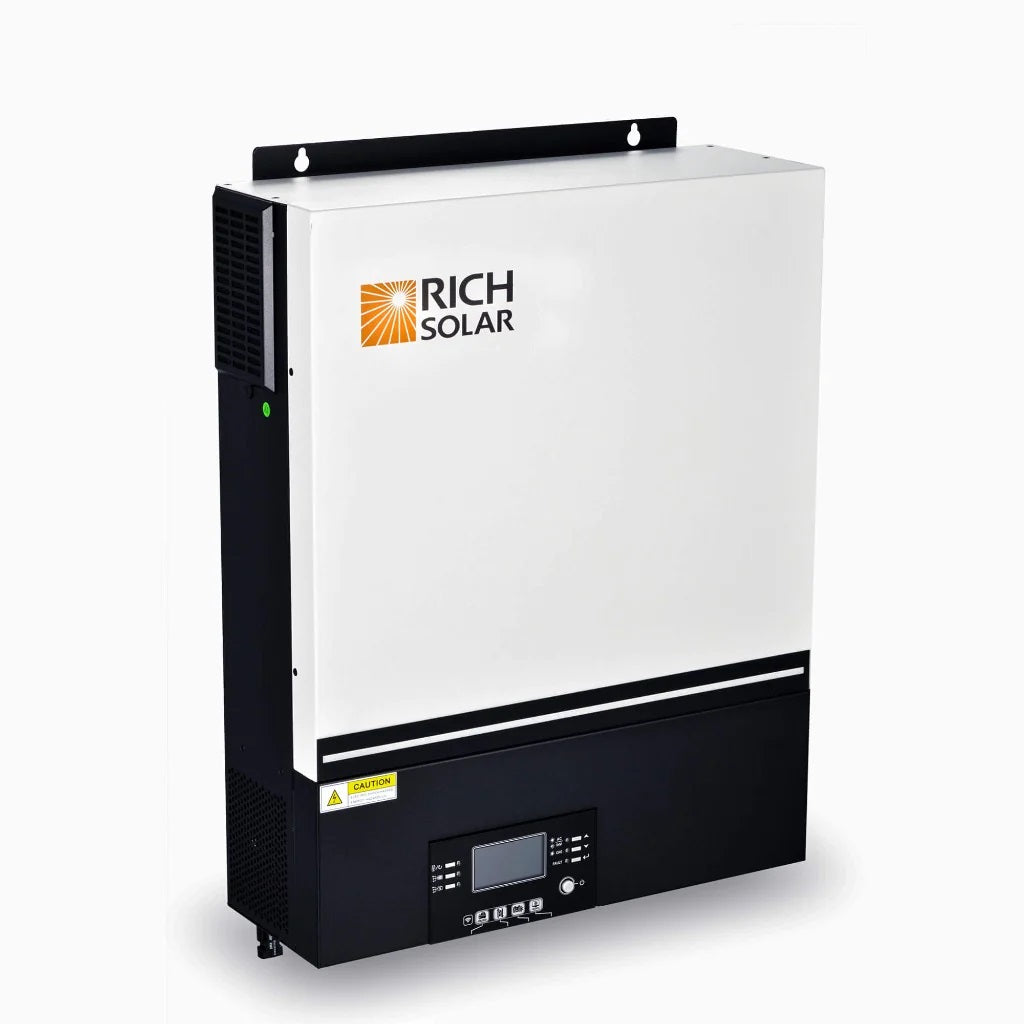

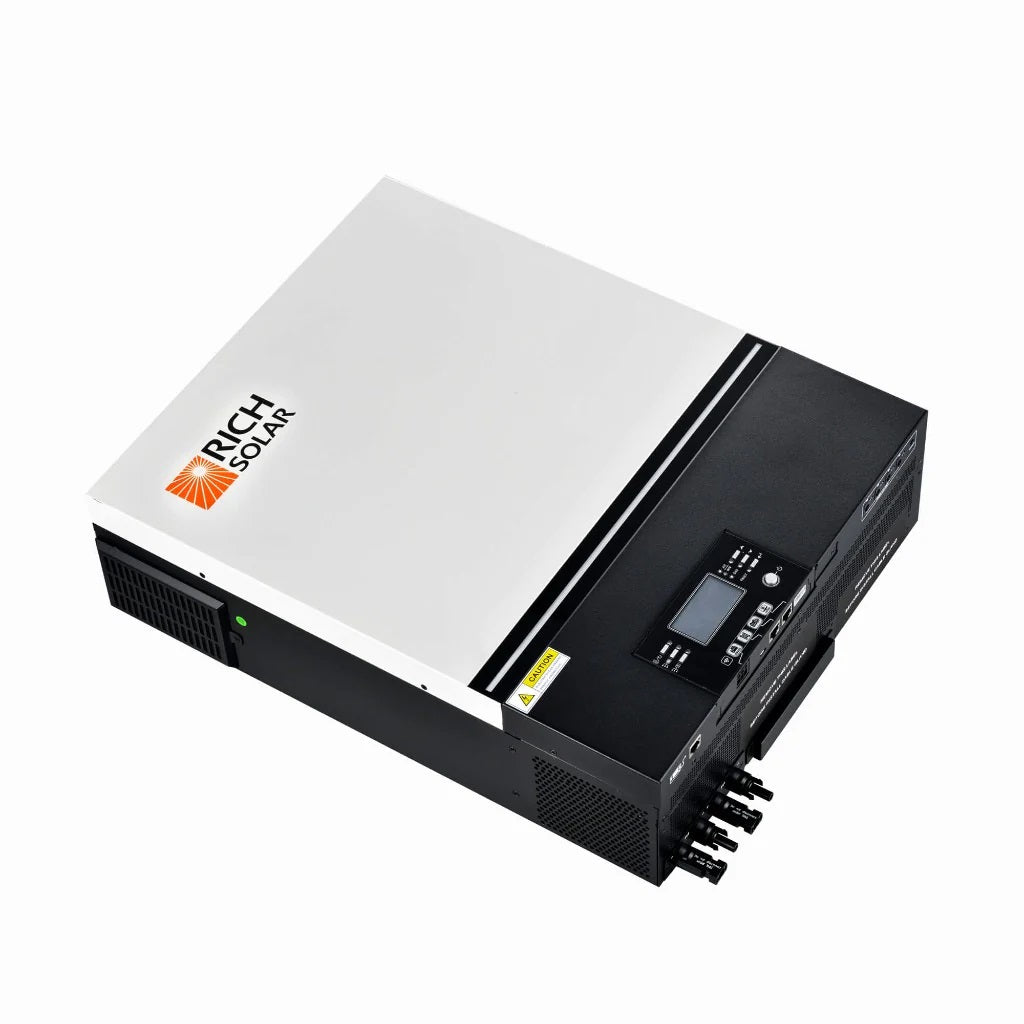

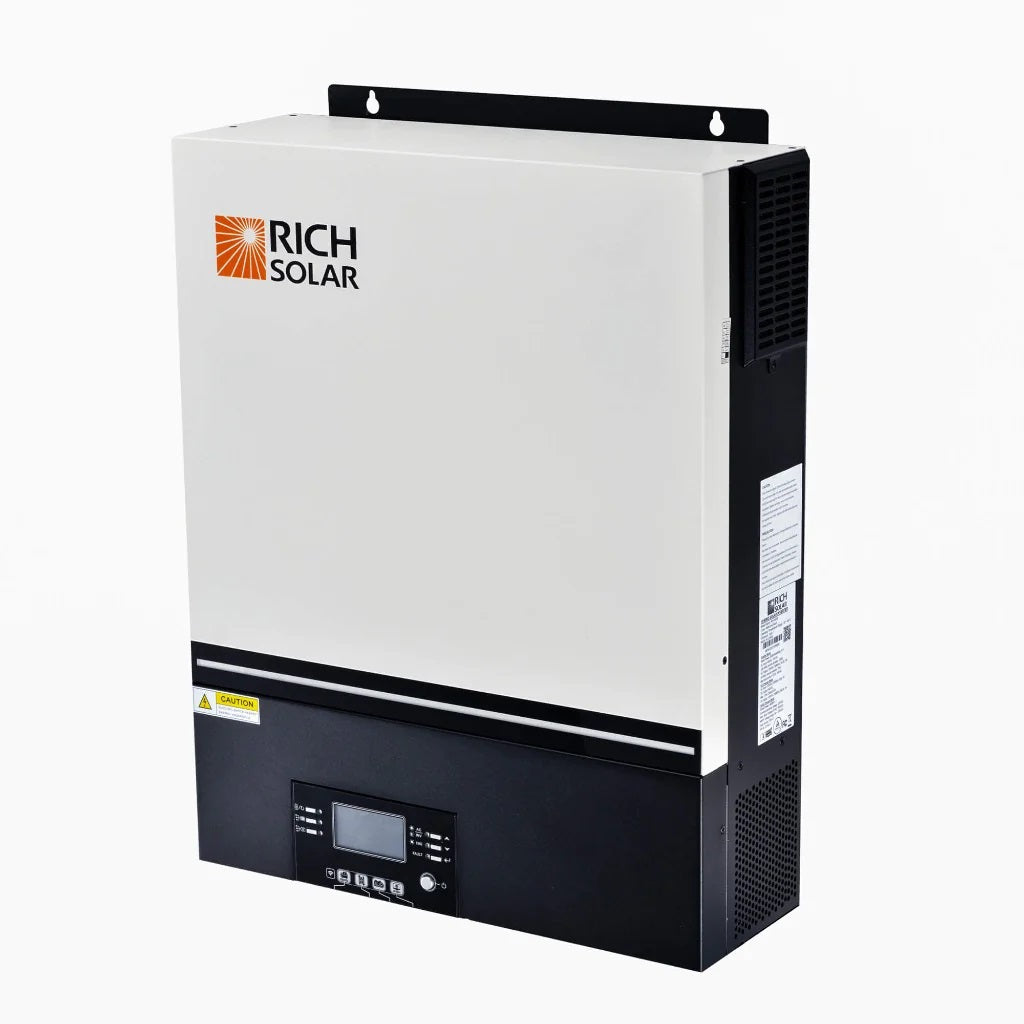

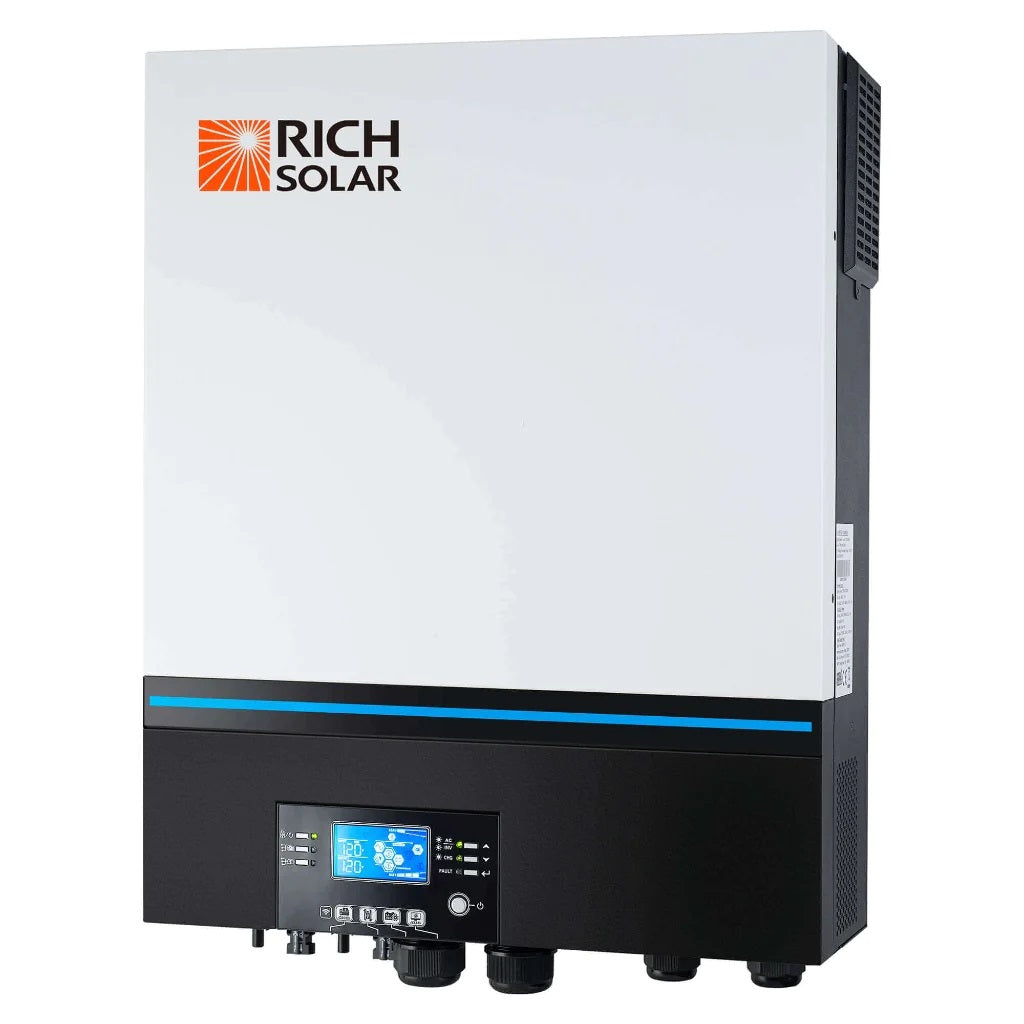

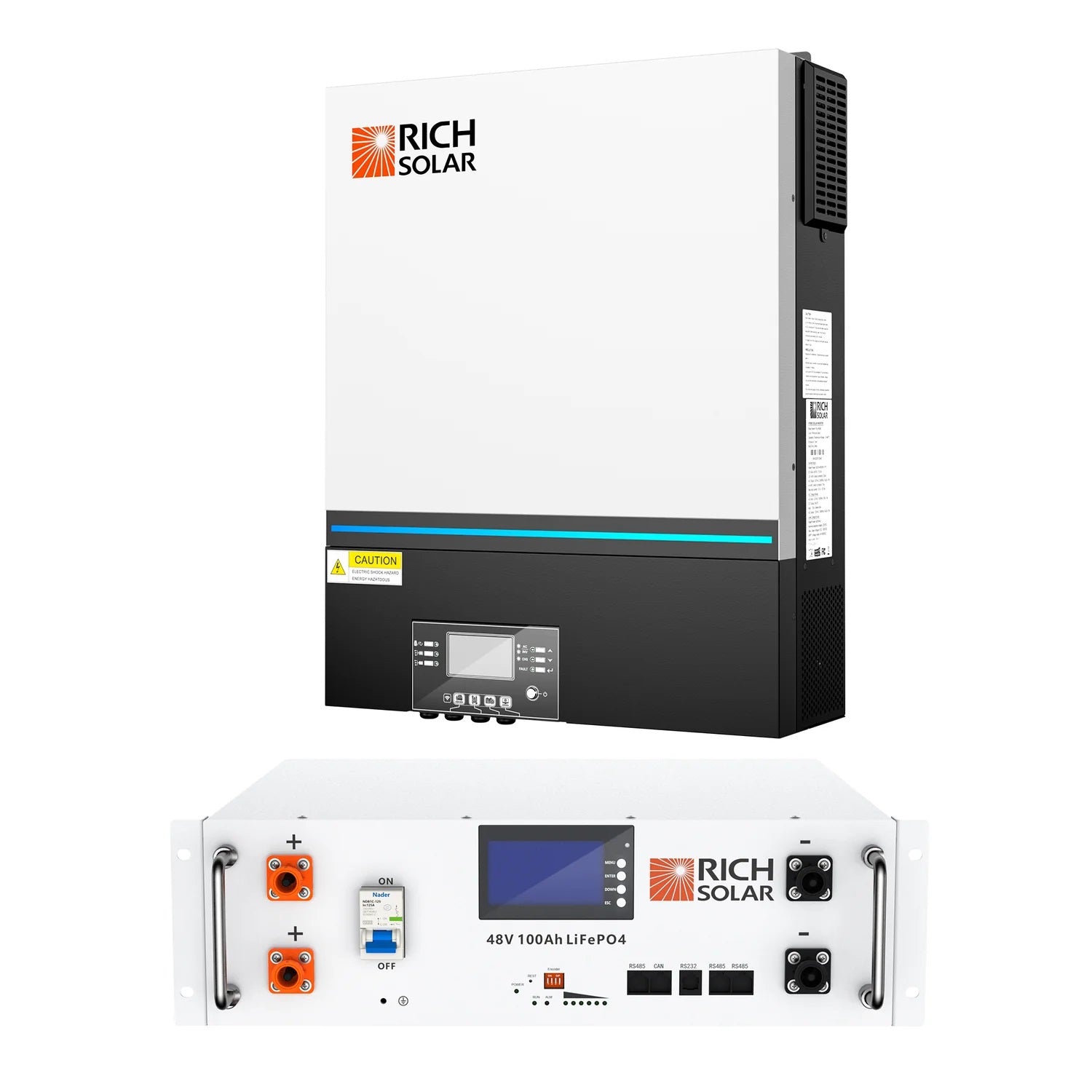

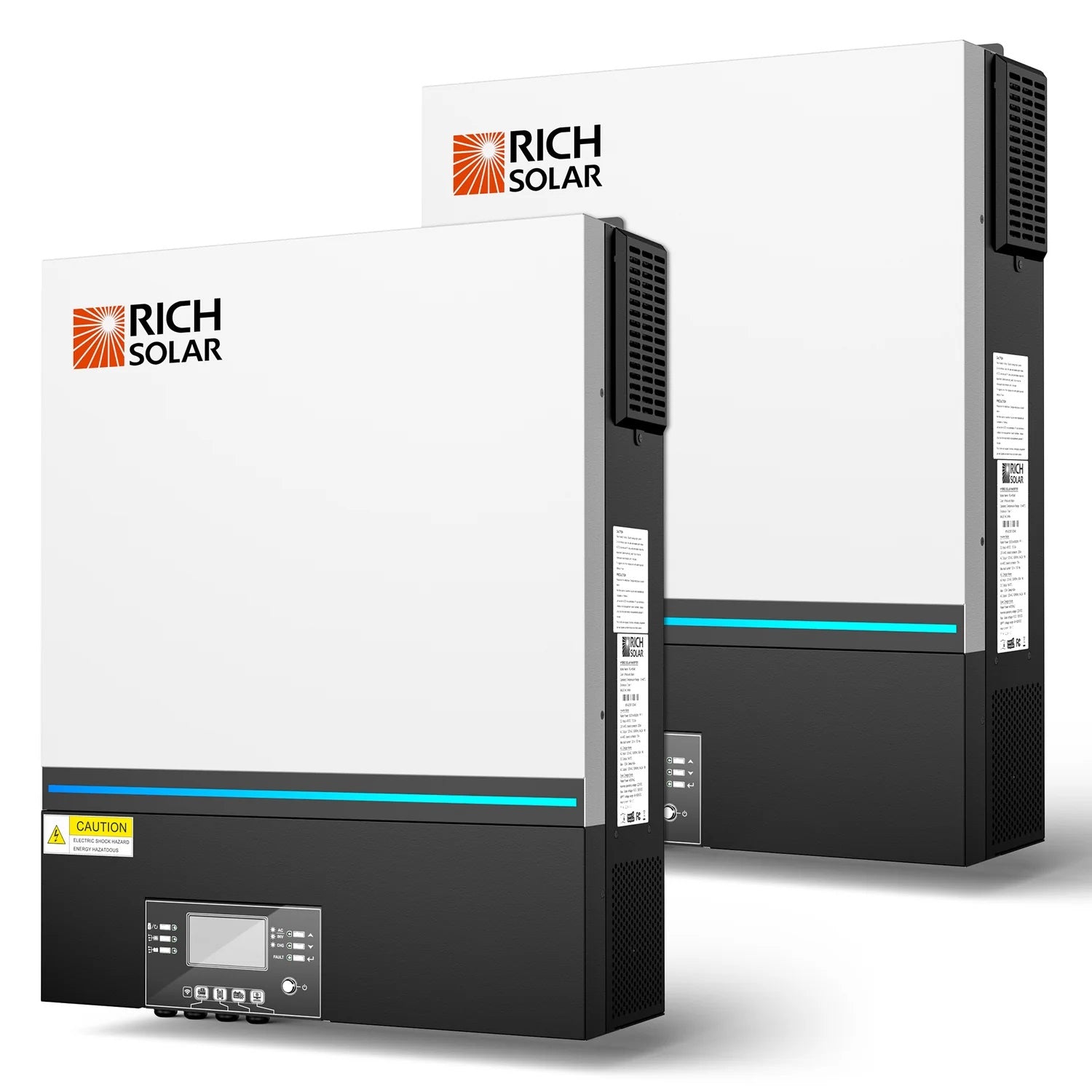

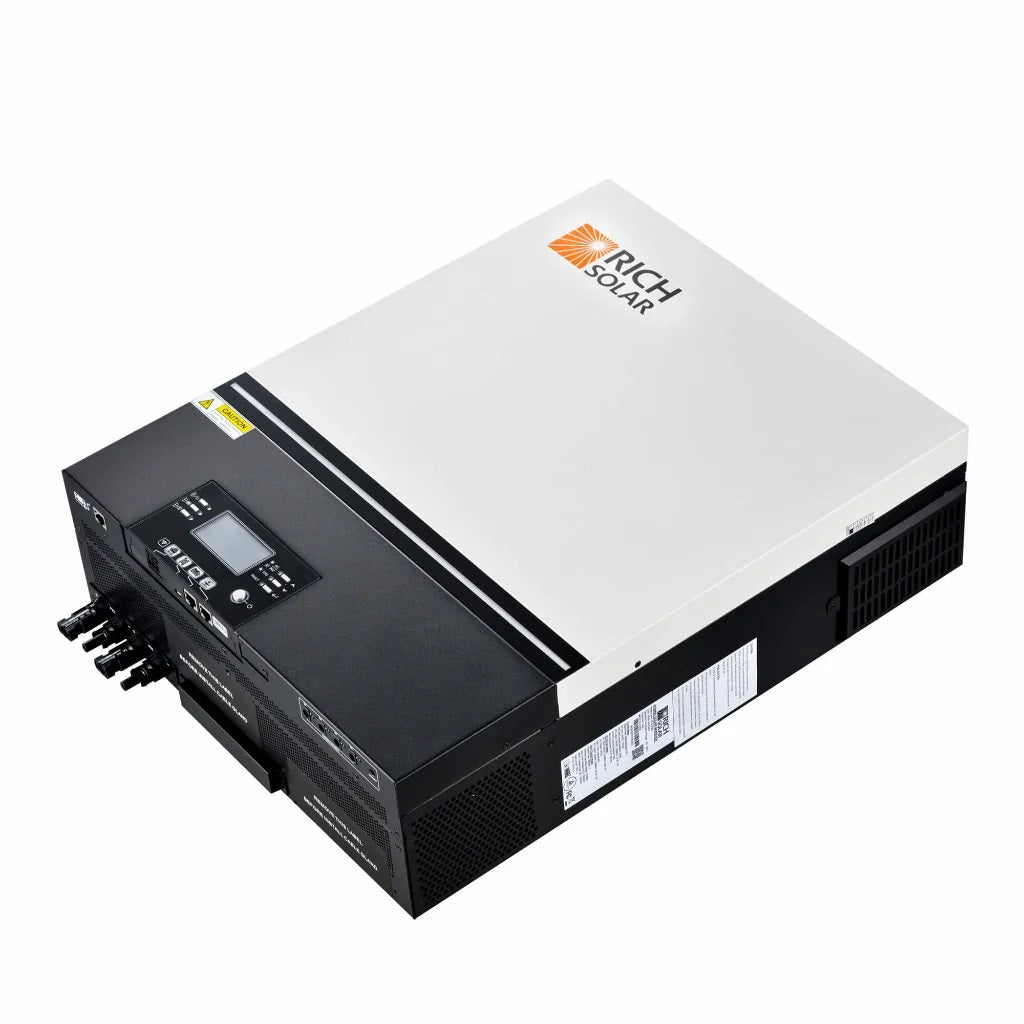

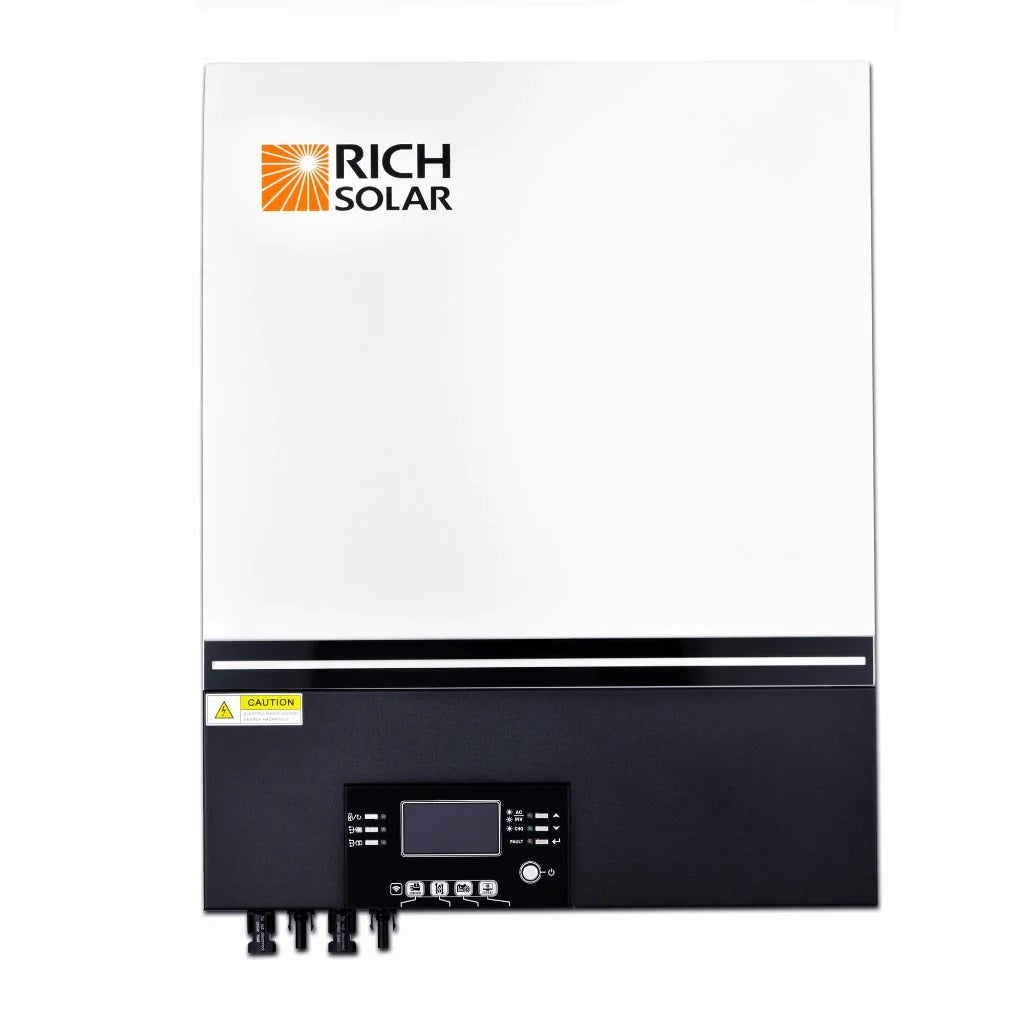

Rich Solar 6500 Watt (6.5kW) 48 Volt Off-Grid Hybrid Solar Inverter

Power Your Home, Your Way With The Rich Solar 6500 Watt (6.5kW) 48 Volt Off-Grid Hybrid Solar Inverter

Take control of your energy independence with the Rich Solar 6500W 48V Off-Grid Hybrid Solar Inverter. This all-in-one solar powerhouse seamlessly integrates solar energy generation, battery storage, and utility grid backup into a single, intelligent system. Ideal for off-grid applications and remote locations, the Rich Solar 6500 Watt inverter empowers you to live a sustainable, cost-effective lifestyle.

Rich Solar 6500 Watt 48 Volt Off-grid Hybrid Solar Inverter Features

• UL Certification
• Status indication with RGB lights
• Built-in Wi-Fi for mobile monitoring (Android/iOS App is available)
• Supports USB On-the-Go function
• Reserved communication port for BMS (RS485, CAN-BUS or RS232)
• Replaceable fan design for ease of maintenance
• Battery independent design
• Configurable AC/PV output usage timer and prioritization
• Selectable high power charging current
• Selectable input voltage range for home appliances and personal computers
• Compatible to Utility Mains or generator input
• Built-in anti-dust kit
• Optional DC output for DC fan, LED bulb, router and so on.
• Parallel operation with 6 units
• Dual outputs selected as either programmable output or generator input

What's In The Box

• 1 x RICH SOLAR 6500 Watt (6.5kW) 48 Volt Off-grid Hybrid Hybrid Solar Inverter

25-Year Warranty

• Rich Solar provides a 25-year output warranty for this inverter.

Rich Solar 6500 Watt (6.5kW) 48 Volt Off-grid Hybrid Solar Inverter Specifications

• Model: RS-H6548
• Rated Inverter Power: 6500VA/6500W
• PARALLEL CAPABILITY: Yes, 6 units

INPUT

• Voltage: 120 VAC
• Selectable Voltage Range: 90-140 VAC (For Computers)
• 80-140 VAC (For Home Appliances)
• Frequency Range: 50 Hz/60 Hz (Auto Sensing)

OUTPUT

• AC Voltage Regulation (Batt. Mode): 120VAC ± 5%
• Surge Power: 15000VA
• Efficiency (Peak): 90% ~ 93%
• Transfer Time: 15 ms (For Personal Computers), 20 ms (For Home Appliances)
• Waveform: Pure Sine Wave
• No Load Power Consumption: <70W
• Optional DC Voltage: 12 VDC ± 5%, 100W
• Dual Outputs: Yes

BATTERY

• Battery Voltage: 48 VDC
• Floating Charge Voltage: 54 VDC
• Overcharge Protection: 66 VDC

SOLAR CHARGER & AC CHARGER

• Solar Charger Type: MPPT
• Maximum PV Array Power: 8000W (4000W x 2)
• MPPT Operating Voltage Range: 90 ~ 230 VDC
• Maximum PV Array Open Circuit Voltage: 250 VDC
• Maximum Solar Charge Current: 120A
• Maximum AC Charge Current: 120A
• Maximum Charge Current: 120A

PHYSICAL

• Dimension(D X W X H): 5.8 x 17.0 x 21.8 in
• Net Weight: 40.6 lb
• Communication Interface: USB/RS232/RS485/WiFi/Dry-contact

OPERATING ENVIRONMENT

• Humidity: 5% to 95% Relative Humidity(Non-condensing)
• Operating Temperature: -10°C to 50°C
• Storage Temperature: -15°C to 60°C

STANDARD

• Compliance Safety: UL



Rich Solar 6500 Watt (6.5kW) 48 Volt Off-grid Hybrid Solar Inverter Manual

• Rich Solar 6500 Watt (6.5kW) 48 Volt Off-grid Hybrid Manual
