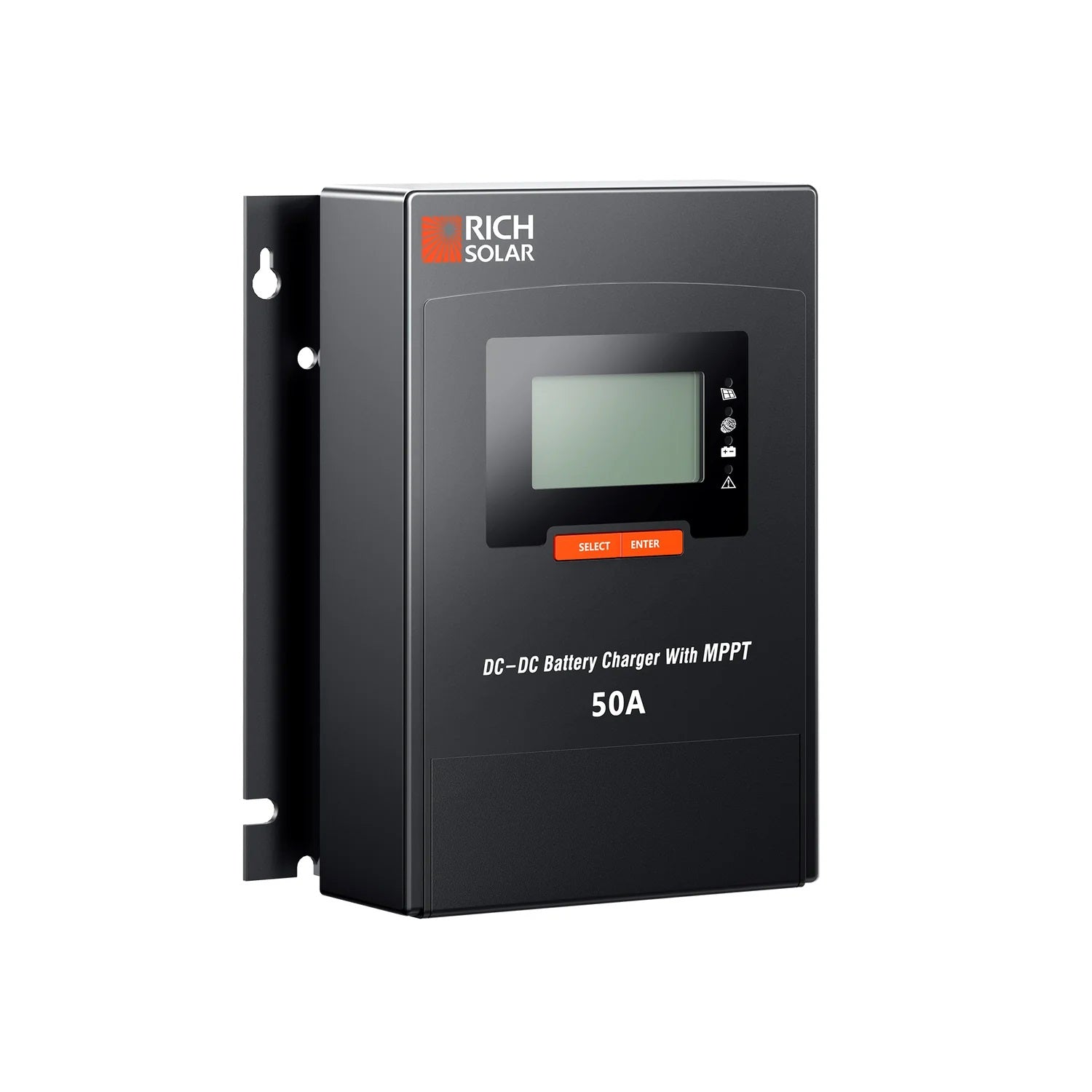

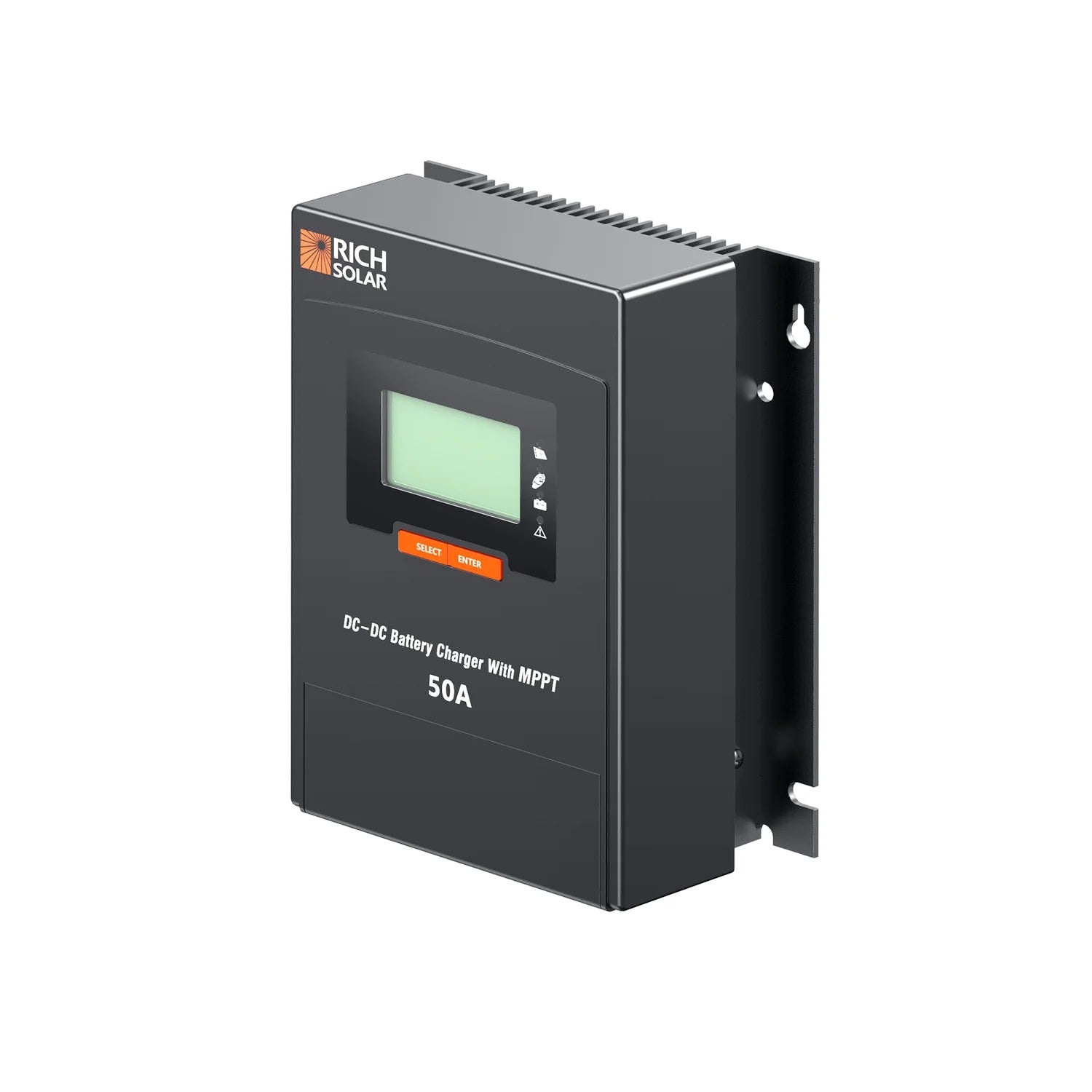

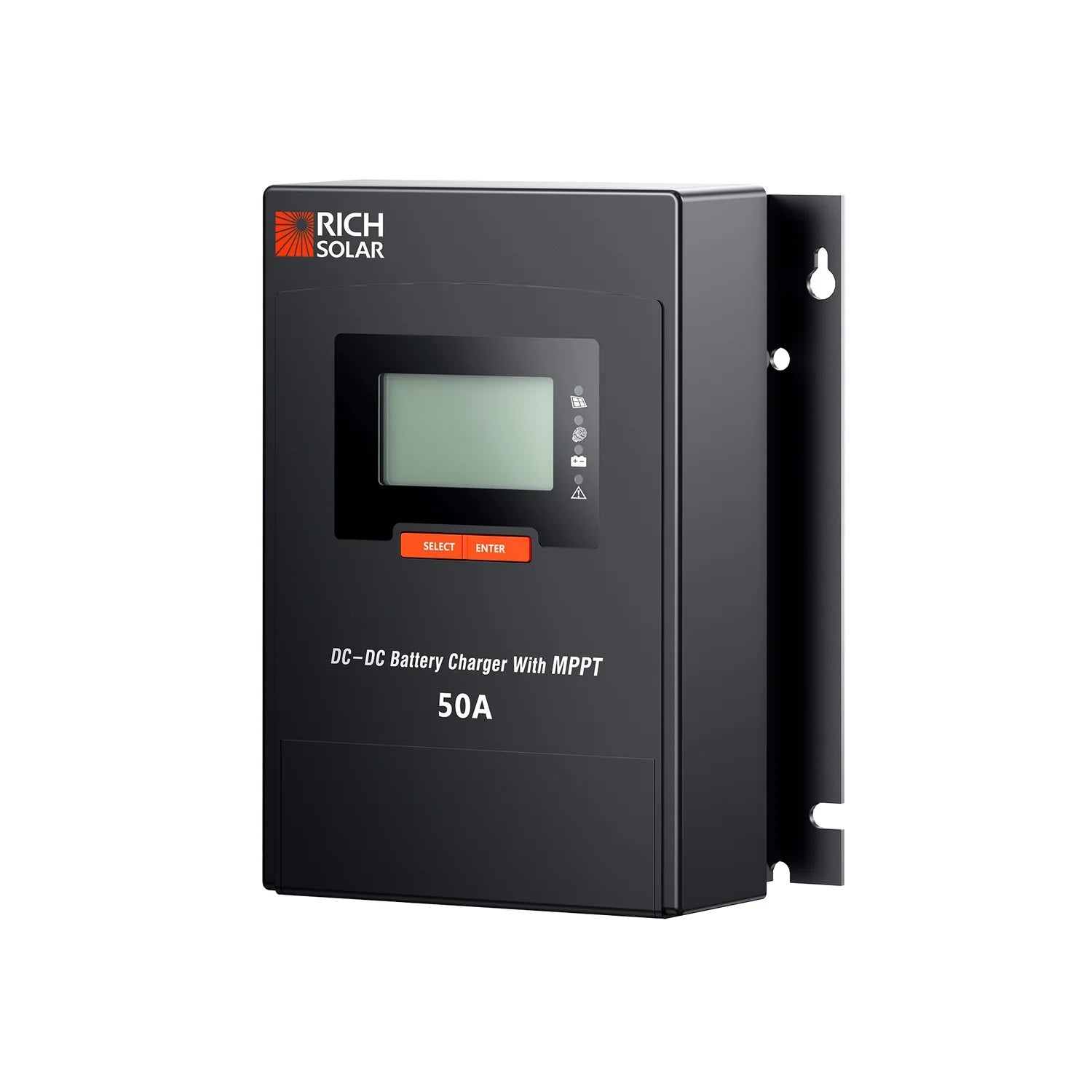

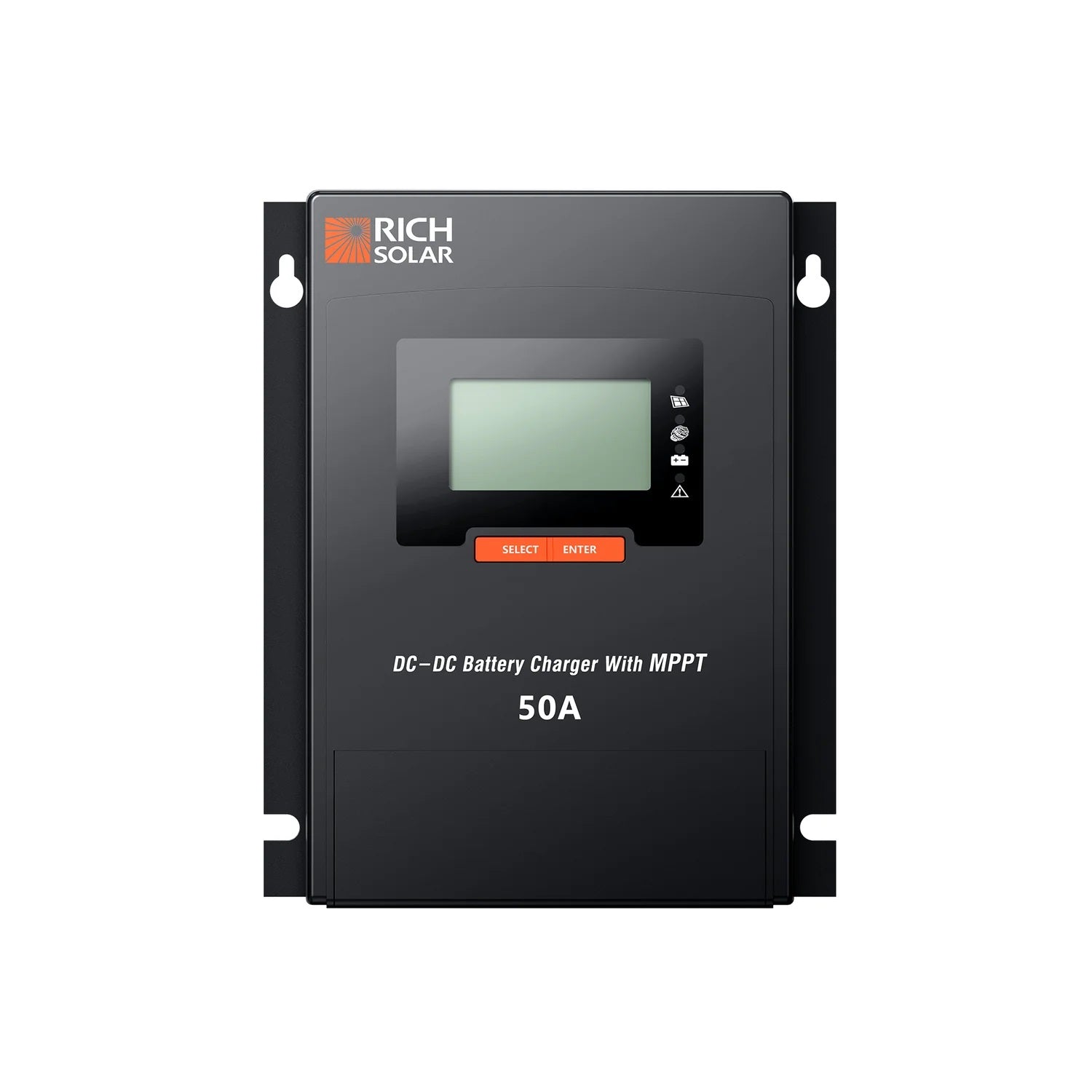

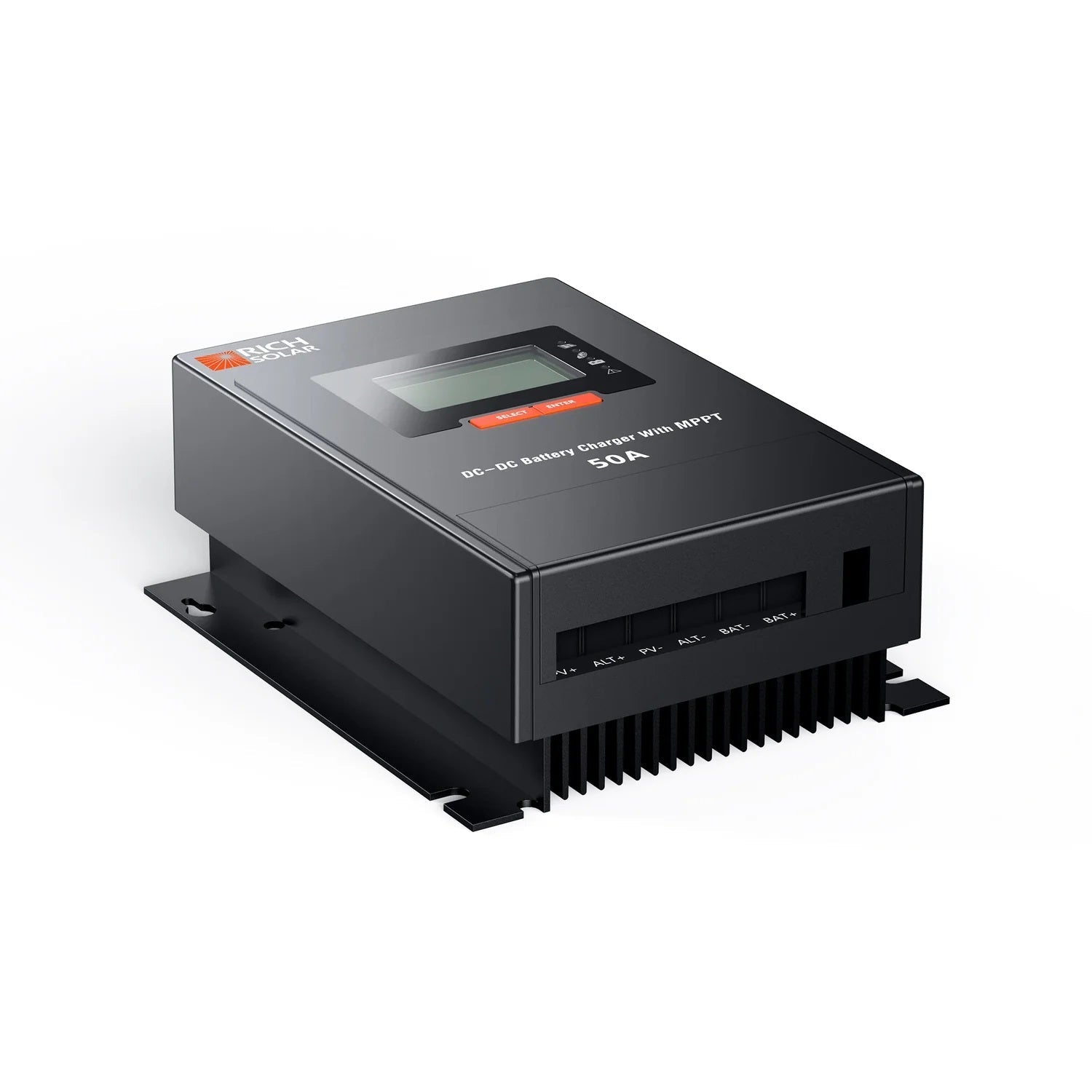

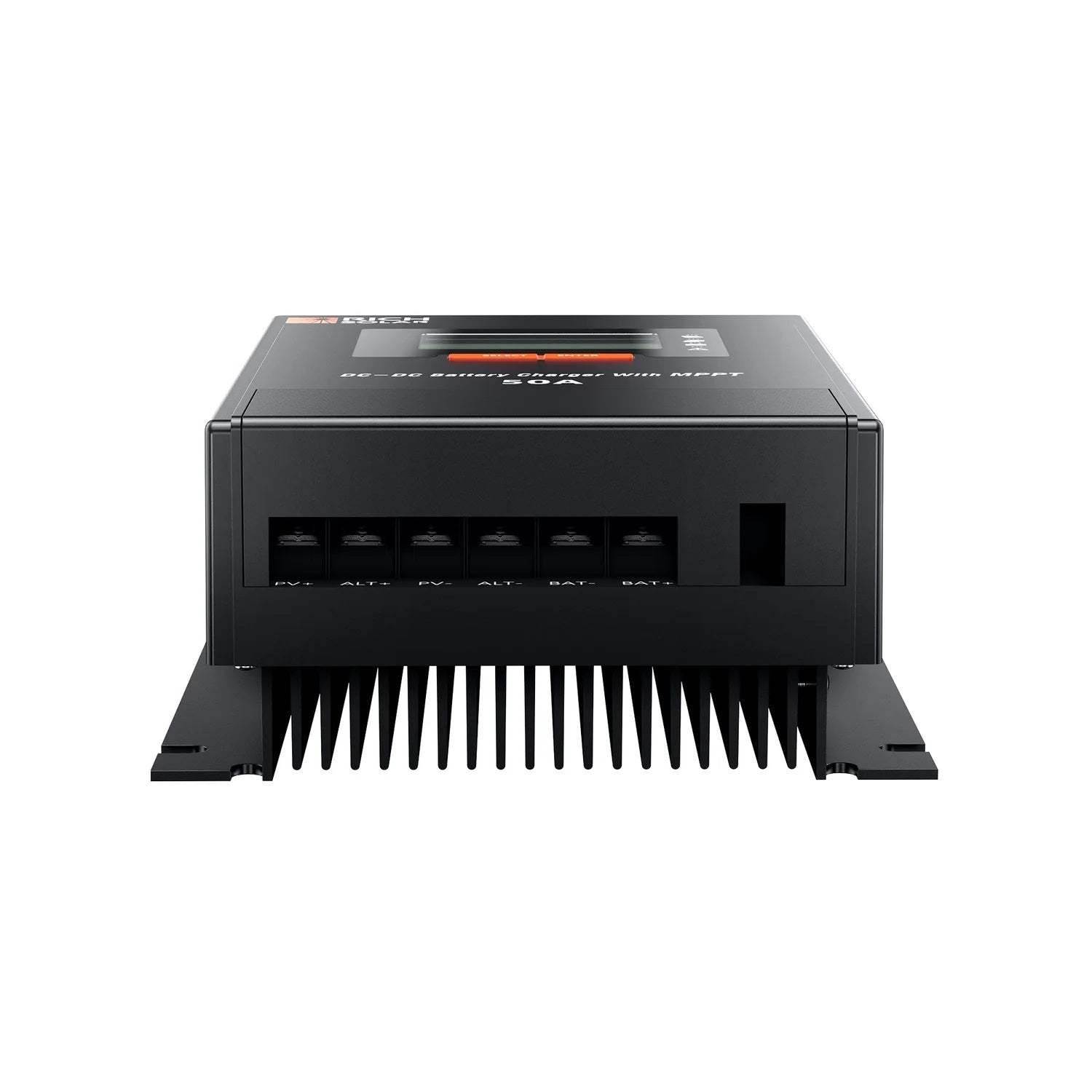

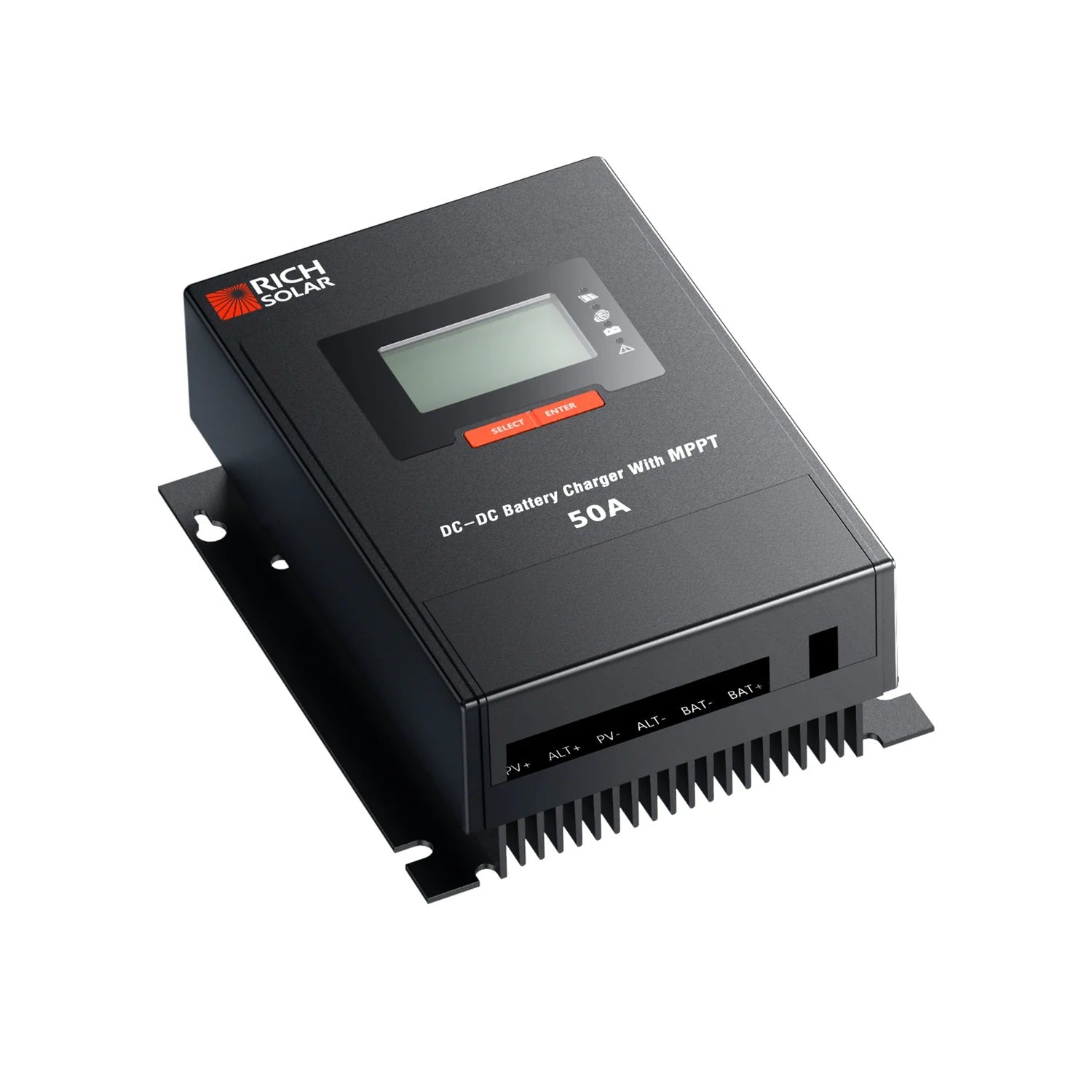

Rich Solar 50 Amp DC to DC Lithium Battery Alternator Charger with MPPT
Rich Solar
Couldn't load pickup availability
Price Match Guarantee
Found it cheaper? Send us the link and we'll match or beat the price at any authorized retailer.
Product Details
Upgrade Your Off-Grid Adventures With The Rich Solar 50 Amp DC to DC Lithium Battery Alternator Charger With MPPT
Take control of your off-grid energy with the Rich Solar 50 Amp DC to DC Lithium Battery Alternator Charger with MPPT. This innovative device seamlessly integrates with your vehicle's alternator, transforming it into a highly efficient lithium battery charging station.
Rich Solar's charger incorporates advanced MPPT technology, a game-changer for maximizing output. MPPT constantly analyzes the voltage and current from the alternator, dynamically adjusting its operation to extract the most power possible under varying engine RPMs.
Rich Solar 50 Amp DC to DC Lithium Battery Alternator Charger with MPPT Features
- Can connect to PV and alternator
- Charges both leisure and starter battery
- MPPT with up to 99.9% efficiency
- Supports TTL communication
What's In The Box
- 1 x Rich Solar 50 Amp DC to DC Lithium Battery Alternator Charger with MPPT
Rich Solar 50 Amp DC to DC Lithium Battery Alternator Charger with MPPT Specifications
PV INPUT
| Max. Voltage of Open Circuit: | 55Vdc |
| MPPT Voltage Range: | 17-36Vdc |
| Max PV Input Current: | 45A |
| Max PV Input Power: | 800W |
BATTERY TYPE - Li-ion / Lead Acid / User Defined
| Rated Battery Voltage: | 12Vdc |
| Battery Voltage Range: | 9-17Vdc |
| Max MPPT Charging Current: | 50A |
| Max Alternator Charging Current: | 60A |
| MPPT Charging Mode: | Buck |
BATTERY TYPE - Lead Acid
| Rated Battery Voltage: | 12Vdc |
| Max MPPT Charging Voltage: | 13.8V |
| Max MPPT Charging Current: | ≤25A |
| Max Alternator Input Voltage (Conventional): | 13.2-16Vdc |
| Max Alternator Input Voltage (Euro 6 Standard): | 12-16Vdc |
| Alternator Charging Mode: | Buck, Boost, Buck-Boost |
EFFECIENCY
| MPPT Tracking Efficiency: | >99% |
| Max Charging Conversion Efficiency: | 98% |
COMMUNICATION
| Embedded Interfaces: | TTL, Remove Switch |
GENERAL
| Weight: | 4.7 lbs |
| Dimensions: | 8.7 x 6.9 x 3.2 inches |
| Protection Degree: | IP32 |
| Operating Temperature Range: | -35°C~65°C（-31℉～149℉) |
CERTIFICATION
| Safely: | IEC62109 |
| EMS: | IEC61000, FCC sDoC |
| Rohs: | YES |
