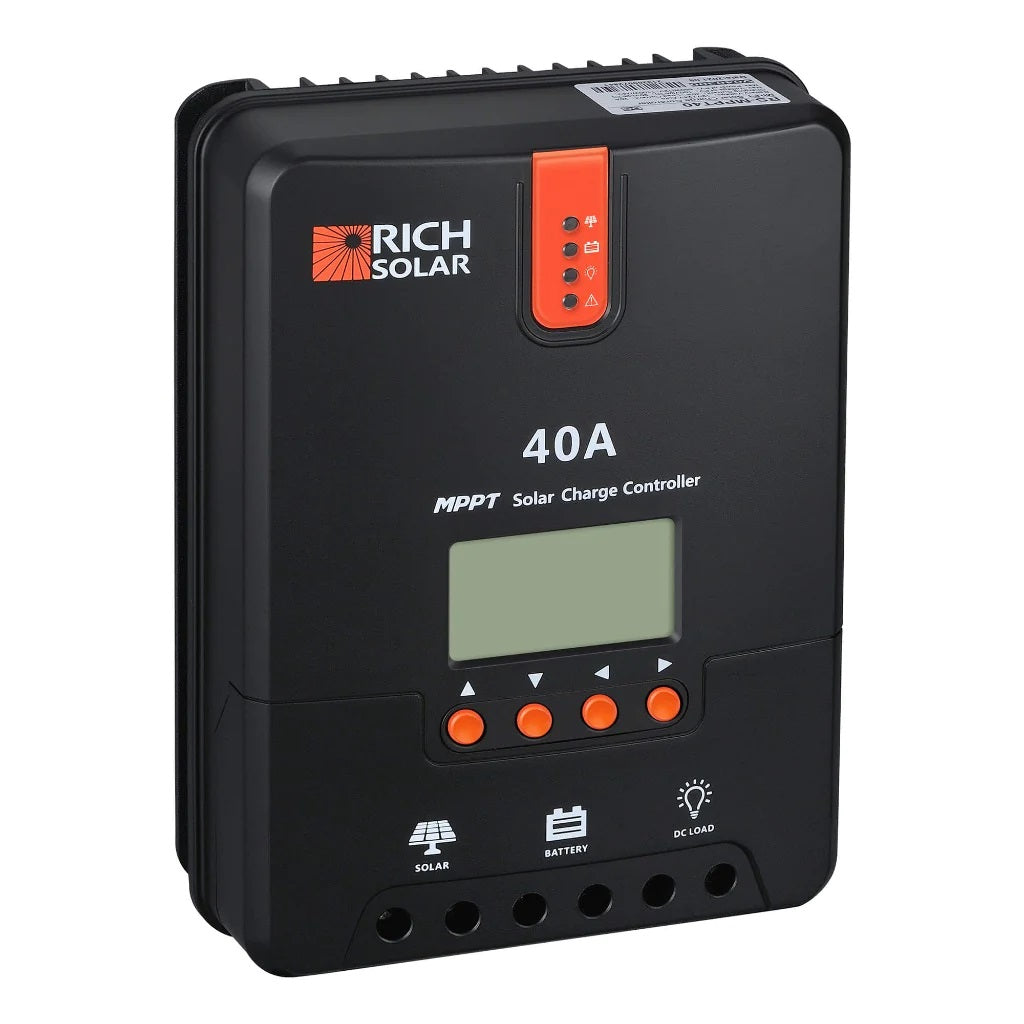

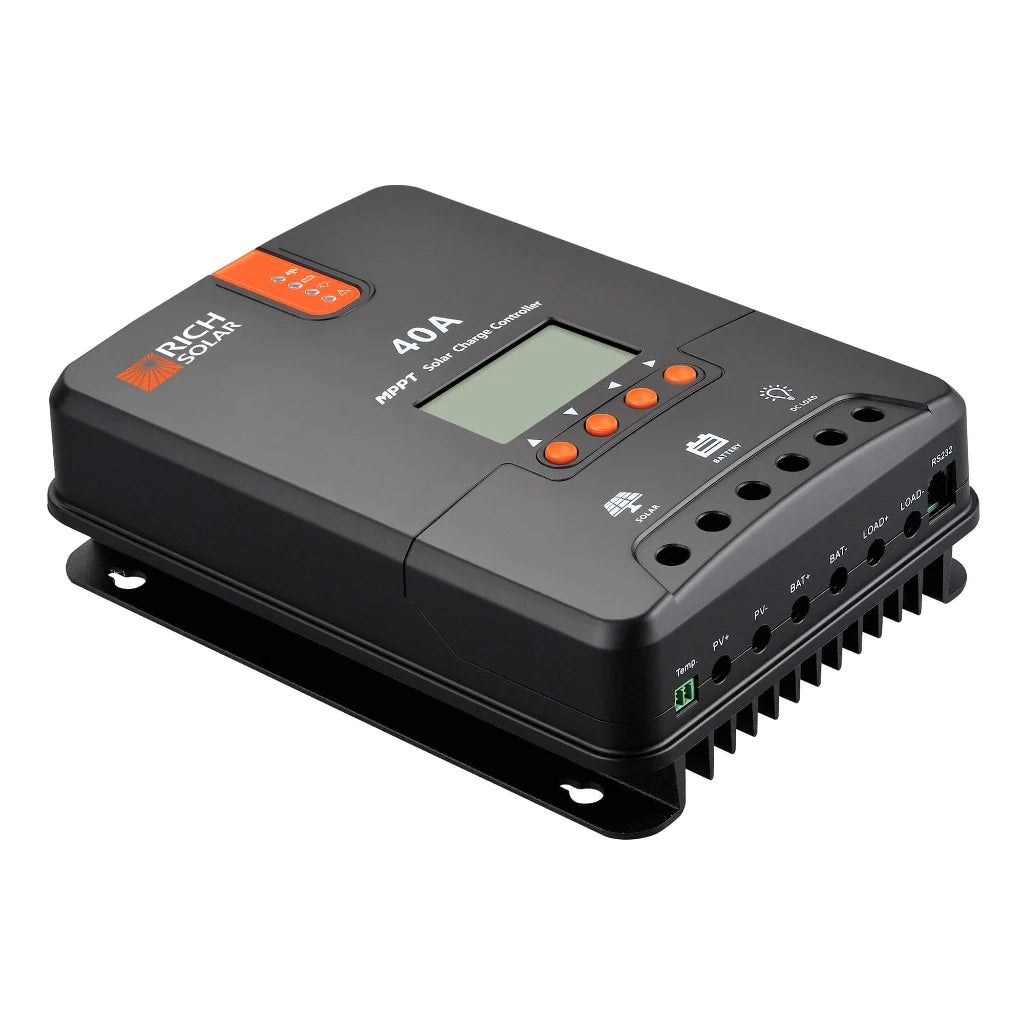

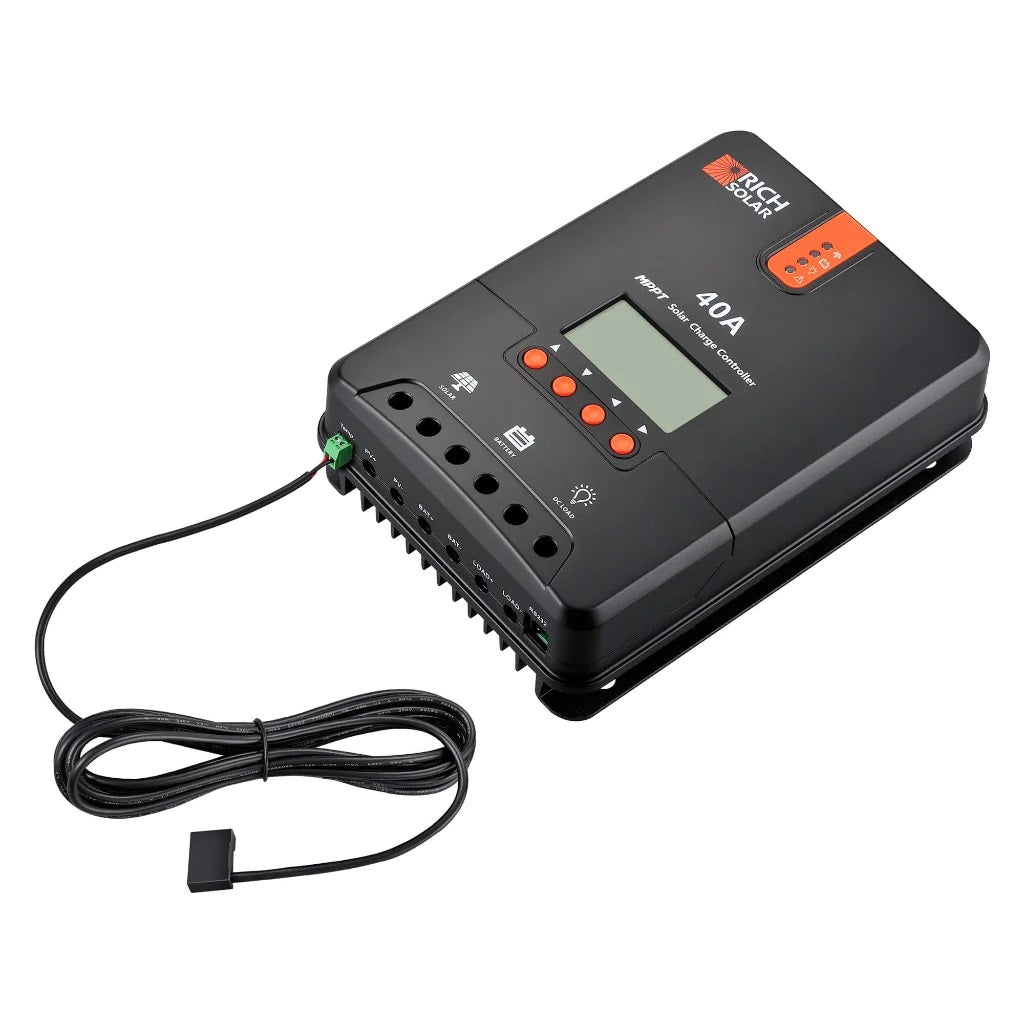

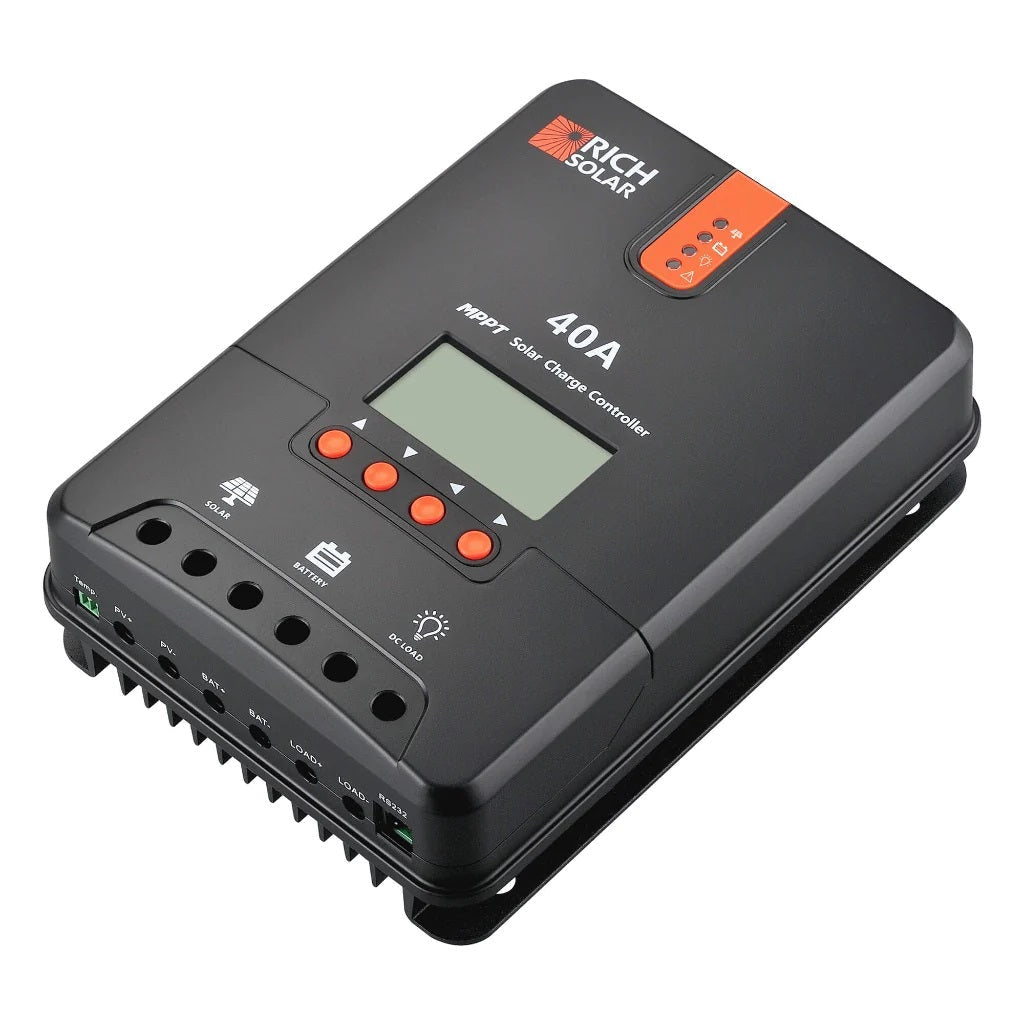

Rich Solar 40 Amp MPPT Solar Charge Controller
Rich Solar
$159.99
Couldn't load pickup availability
Free Shipping
Mfr. Warranty
Authorized Dealer
Easy Returns
Price Match Guarantee
Found it cheaper? Send us the link and we'll match or beat the price at any authorized retailer.
Product Details
Optimize Your Solar Power System For Peak Performance With The Rich Solar 40 Amp MPPT Solar Charge Controller
The Rich Solar 40 Amp MPPT Solar Charge Controller is a powerful addition to any off-grid or grid-tied solar power system. This advanced controller maximizes the output from your solar panels, ensuring your batteries are efficiently charged and your system operates at its full potential.
Rich Solar 40 Amp MPPT Solar Charge Controller Features
- Automatically detects 12V or 24V DC system voltages
- Compatible with various deep cycle battery options: Sealed, Gel, Flooded, and Lithium
- Innovative MPPT technology with high tracking efficiency up to 99% and peak conversion efficiency of 98%
- Electronic protection against reverse polarity, overcharging, over-discharging, overload, short-circuiting, and reverse current

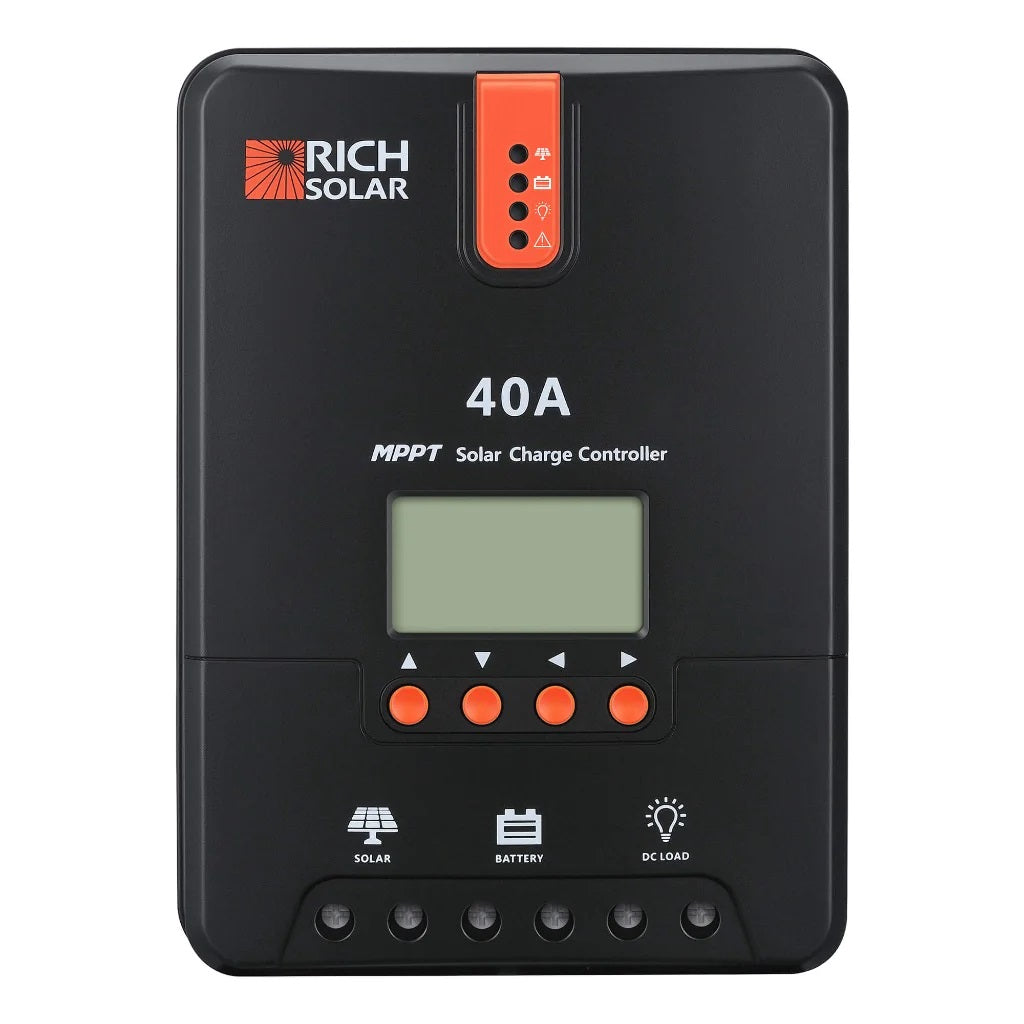

- LCD screen and multiple LED indicators for displaying system operation information, customizable parameters, and error codes
- Features diverse load control; also capable of charging over-discharged lithium batteries

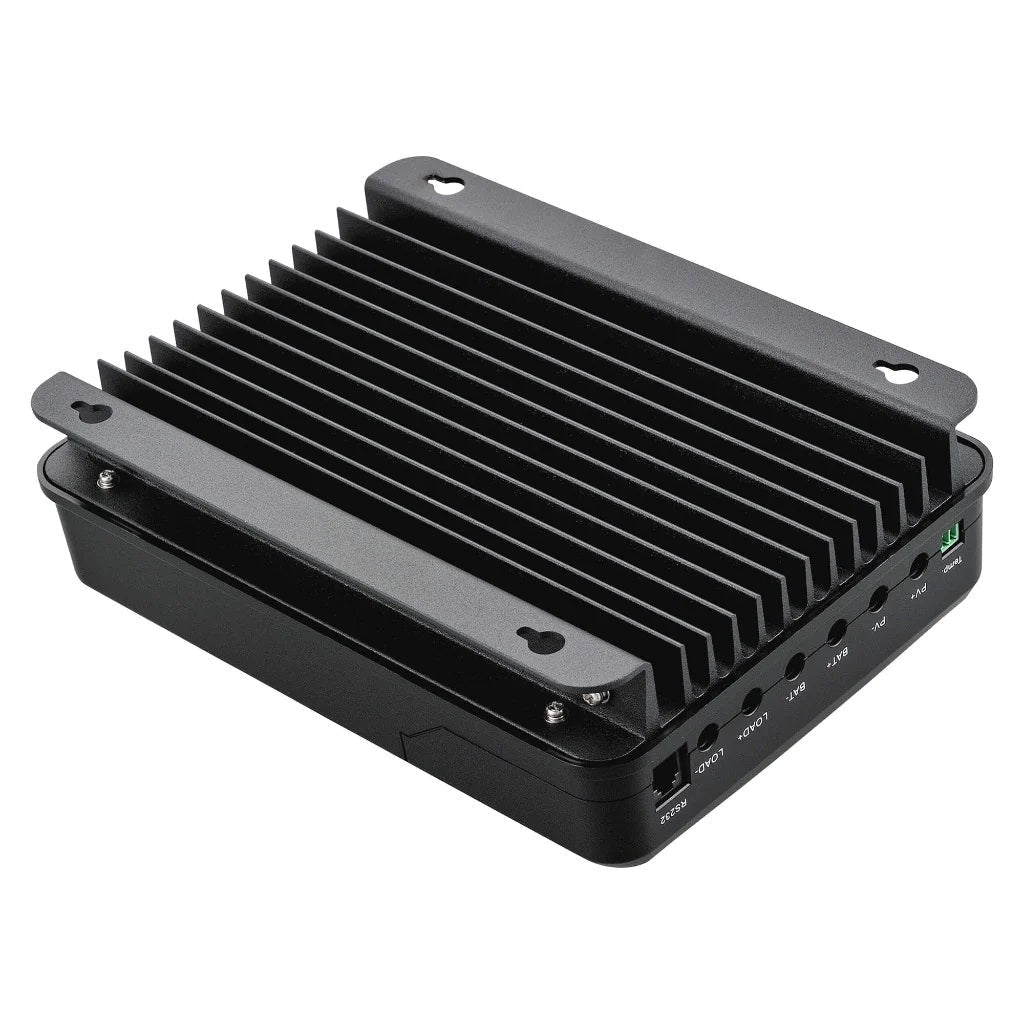

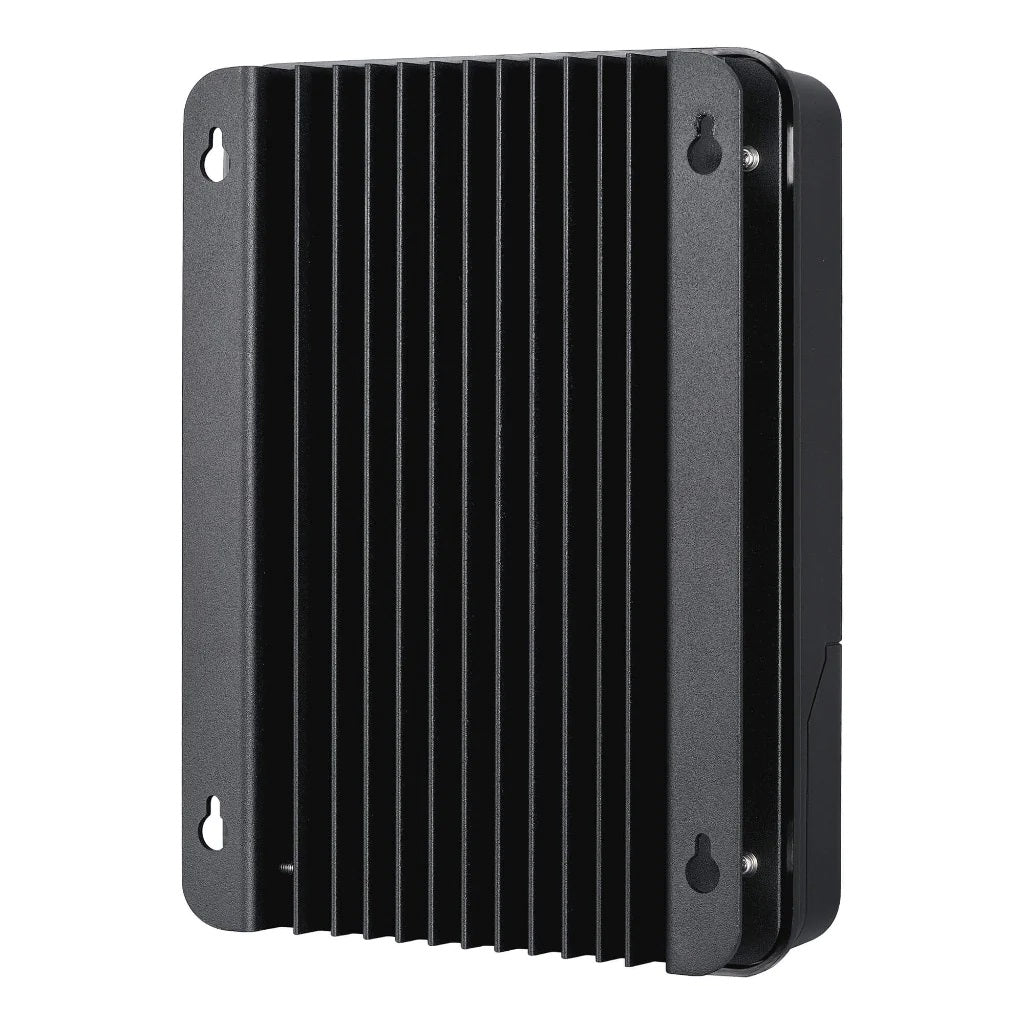

- Die-cast aluminum design allows for efficient heat dissipation

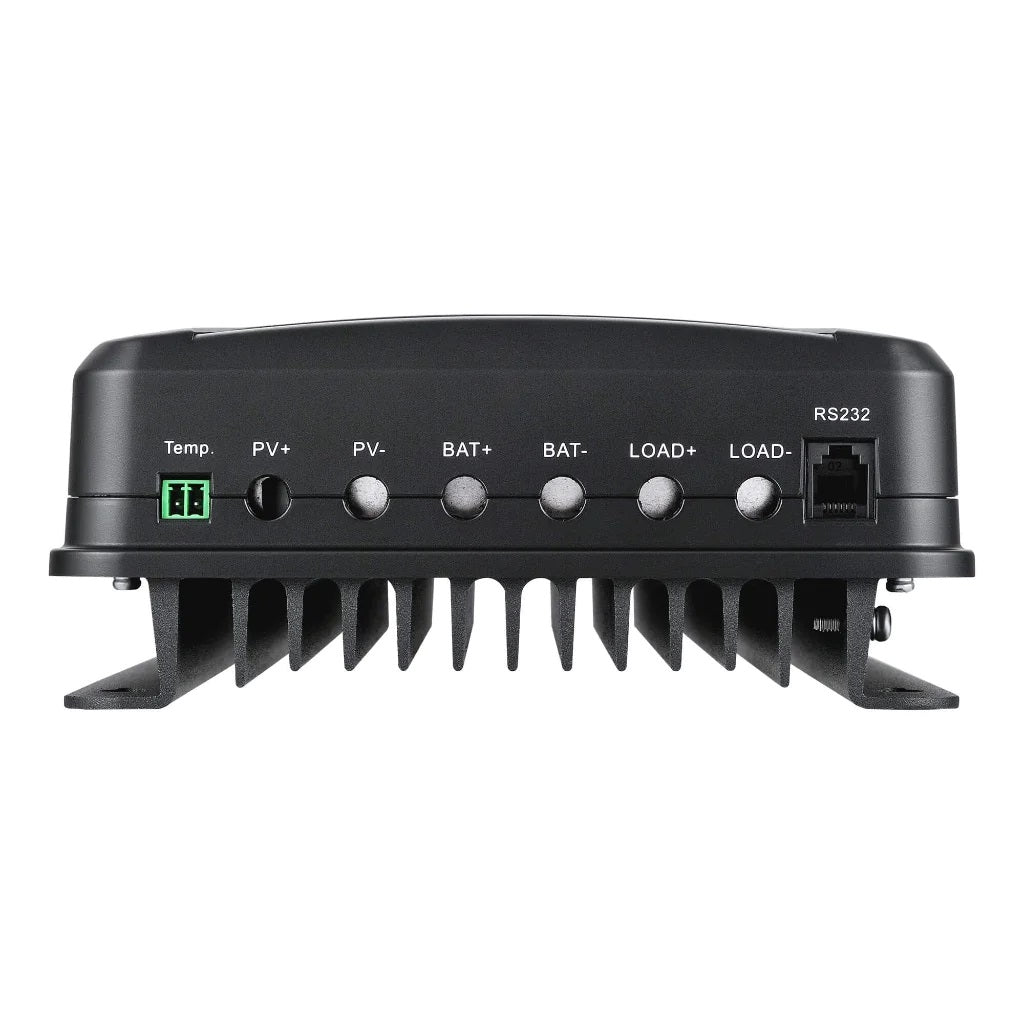

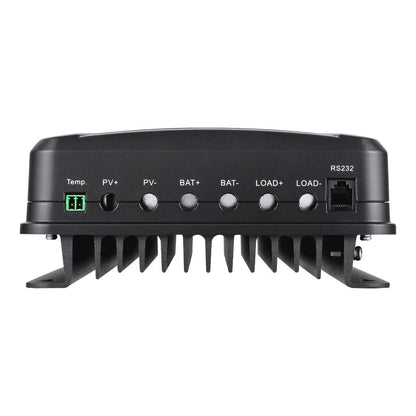

- RS232 port to communicate with BT-1 Bluetooth module.
What's In The Box
- 1 x RICH SOLAR 40 Amp MPPT Solar Charge Controller
Rich Solar 40 Amp MPPT Solar Charge Controller Specifications
| Rated Battery Current: | 40A |
| Rated Load Current: | 20A |
| Max. PV Input Short Current: | 50A |
| Max. Battery Voltage: | 32V |
| Max Solar Input Voltage: | 100VDC |
| Charge circuit voltage drop: | ≤ 0.26V |
| Discharge Circuit Voltage drop: | ≤ 0.15V |
| Working Temperature: | -35°C to +45°C |
| Max Terminal Size: | 8AWG |
| Rated Load Current: | 10% to 90% NC |
| Overall Dimension: | 9.37 x 6.81 x 2.85 in |
| Net Weight: | 4.41 lb |
