Rich Solar 12V 800AH 10.2kWh Lithium Battery Bank
Rich Solar
$3,199.99
Couldn't load pickup availability
Free Shipping
Mfr. Warranty
Authorized Dealer
Easy Returns
Price Match Guarantee
Found it cheaper? Send us the link and we'll match or beat the price at any authorized retailer.
Product Details

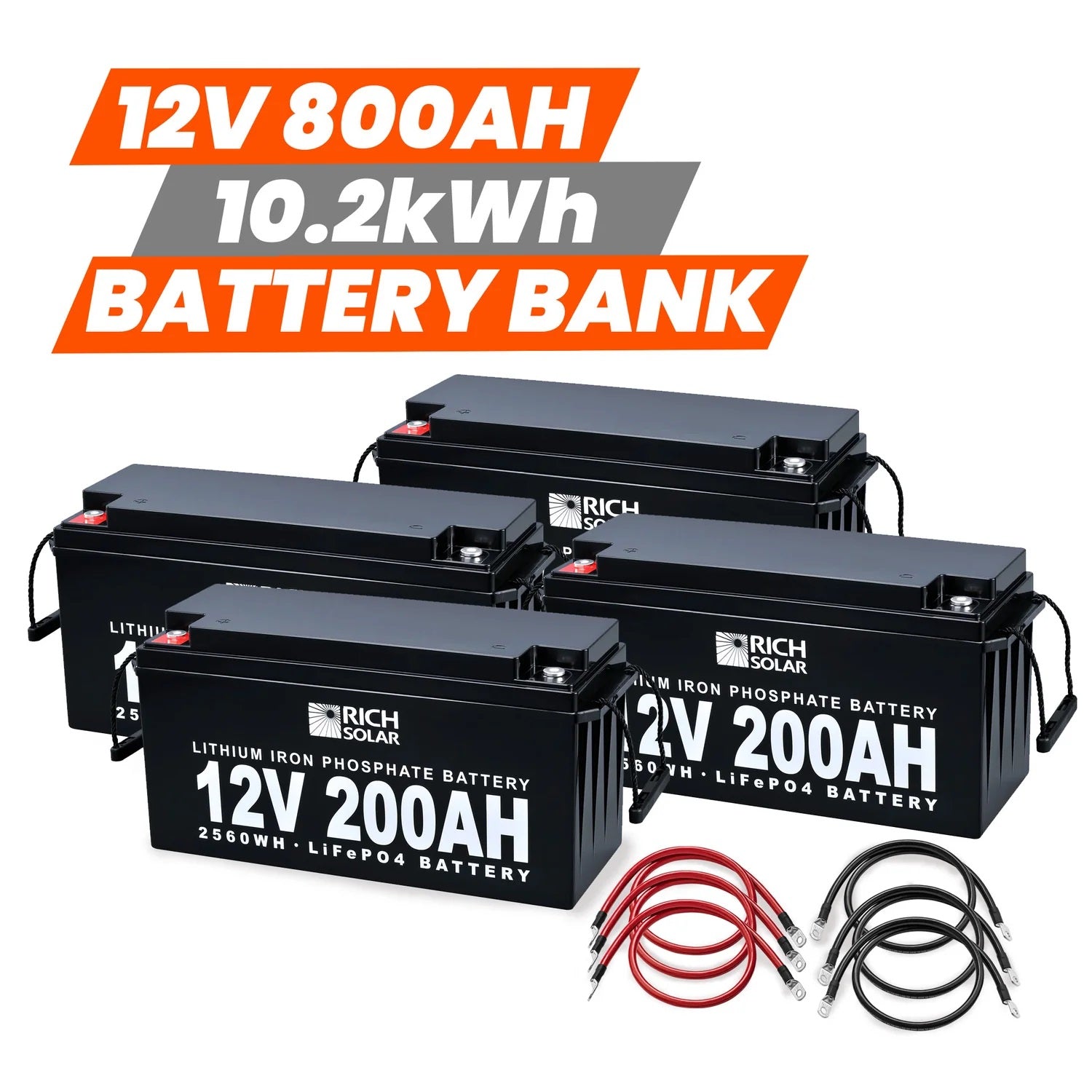

Power Your World With The Rich Solar 12V 800AH 10.2kWh Lithium Battery Bank
Take control of your energy with the ultimate off-grid power solution. The Rich Solar 12V 800AH 10.2kWh Lithium Battery Bank delivers unprecedented power, reliability, and efficiency to your RV, cabin, home, or any other off-grid application.
Rich Solar 12V 200Ah LiFePO4 Lithium Iron Phosphate Battery Features
- Extremely high number of charge/discharge cycles
- 10 Year lifespan with proper maintenance
- Built-in smart battery management system
- Wide operating temperature range
- Unsurpassed high temperature performance
- Green energy without metal contaminant
- Low maintenance
- High amp capacity
- Stable output voltage
- Little self-discharge
- Lifetime customer support
- Over charging or discharging protection.
- Over current hort circuit protection.
- High low temperature disconnects
- Charge Voltage: 14.4V
- Max Charge Current: 100 A
- Max Discharge Current: 200 A
- Battery Dimensions: 19.0″L x 6.7″W x 9.5″H
- Weight: 42.5 lb
BMS Safety Protection
- Each cell is fused and if for some unlikely situation a cell fails, this design will isolate the cell stopping any other damage and allows the battery to function safely
- Convenient removable carry handle
- Lightweight
- Short circuit protected
- Physical damage to battery case will not cause fire
- Excessive thermal exposure will not cause a fire
- Able to withstand over-charge/over-discharge without damage to the battery
- Sophisticated Battery Management System (BMS)
What's In The Box

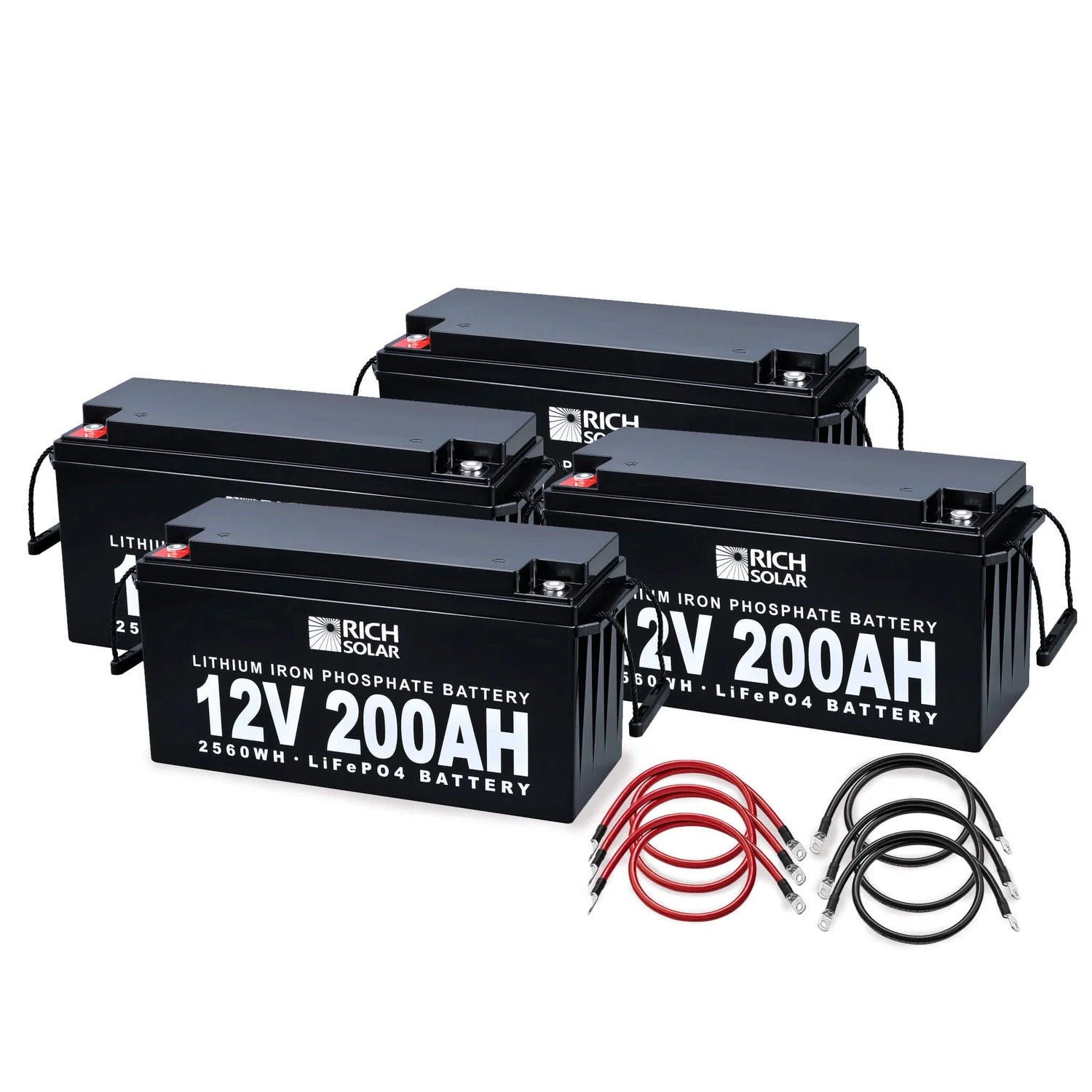

- 4 x 12V 200AH LiFePO4 Batteries
- 6 x 1ft 2 AWG Battery Cables
3-Year Warranty
- Rich Solar provides a 3-yea Manufacturer Defect for these solar batteries.
Rich Solar 12V 800AH 10.2kWh Lithium Battery Bank Specifications
Electrical Specifications
| Nominal Voltage: | 12.8V |
| Nominal Capacity(at .5C, 77°F): | 200Ah |
| Minimum Capacity (at .5C, 77°F): | 190Ah |
| Expected Cycle Life: | >5000 cycles w/1C charge and discharge rate, at 77°F, 80% DOD |
Operating Specifications
| Charge Method: | Smart charger, constant current, constant voltage |
| Operating Voltage: | 12.8 V |
| Capacity: | 200 Ah |
| Energy: | 2560 Watt Hours |
| Charge Voltage Range (Max 14.6V): | 14.4 -14.6V |
| Continuous Charge Current: | 100A |
| Continuous Discharge Current: | 200A |
| Over Voltage Shutdown: | 15.6 +/-0.2V |
| Discharge Cut-off Voltage: | 8V =/- 0.5V |
| Self Discharge (stored at 50% SOC): | <3%/month |
| Waterproof: | IP65 |
Temperature Performance
| Charge Temperature: | 32° F to 140° F |
| Discharge Temperature: | -4° F to 140° F |
| Storage Temperature: | -4° F to 140° F |
| BMS High Temperature Cut-off: | 149°F |
| BMS Low Temperature Cut-off: | 32°F |
Physical Specifications
| Battery Dimensions: | 19.0″L x 6.7″W x 9.5″H |
| Weight: | 42.5 lb |
| Group Size: | 62 |
| Battery post size: | 5/16″ |
BMS Operation
Over Charge Protection
| Over charge detection voltage: | 3.9 +/- 0.05V |
| Over charge detection delay time: | 0.96 – 1.4s |
| Over charge release voltage: | 3.80 +/-0.05V |
| Maximum charge voltage: | 3.65 +/-0.05V |
Over Discharge Protection
| Over discharge detection voltage: | 2.0V +/- 0.05V |
| Over discharge detection delay time: | 115-173ms |
| Over discharge release voltage: | 2.3V +/- 0.10V |
| Over Current Protection Over current detection delay time: | 9 +/- 2ms |
| Over current release condition: | Cut load |
| Polarity Reverse Protection: | Yes |
| Short Circuit Protection: | Yes |
