Rich Solar 12V 400AH 5.1kWh Lithium Battery Bank

Rich Solar 12V 400AH 5.1kWh Lithium Battery Bank: Power Your Life Without Limits

Imagine a world free from the constraints of the traditional power grid. A world where you can generate your own clean, renewable energy and store it for use whenever you need it. With the Rich Solar 12V 400AH 5.1kWh Lithium Battery Bank, this dream becomes reality.

Rich Solar 12V 200Ah LiFePO4 Lithium Iron Phosphate Battery Features

• Extremely high number of charge/discharge cycles
• 10 Year lifespan with proper maintenance
• Built-in smart battery management system
• Wide operating temperature range
• Unsurpassed high temperature performance
• Green energy without metal contaminant
• Low maintenance
• High amp capacity
• Stable output voltage
• Little self-discharge
• Lifetime customer support
• Over charging or discharging protection.
• Over current hort circuit protection.
• High low temperature disconnects
• Charge Voltage: 14.4V
• Max Charge Current: 100 A
• Max Discharge Current: 200 A
• Battery Dimensions: 19.0″L x 6.7″W x 9.5″H
• Weight: 42.5 lb

BMS Safety Protection

• Each cell is fused and if for some unlikely situation a cell fails, this design will isolate the cell stopping any other damage and allows the battery to function safely
• Convenient removable carry handle
• Lightweight
• Short circuit protected
• Physical damage to battery case will not cause fire
• Excessive thermal exposure will not cause a fire
• Able to withstand over-charge/over-discharge without damage to the battery
• Sophisticated Battery Management System (BMS)

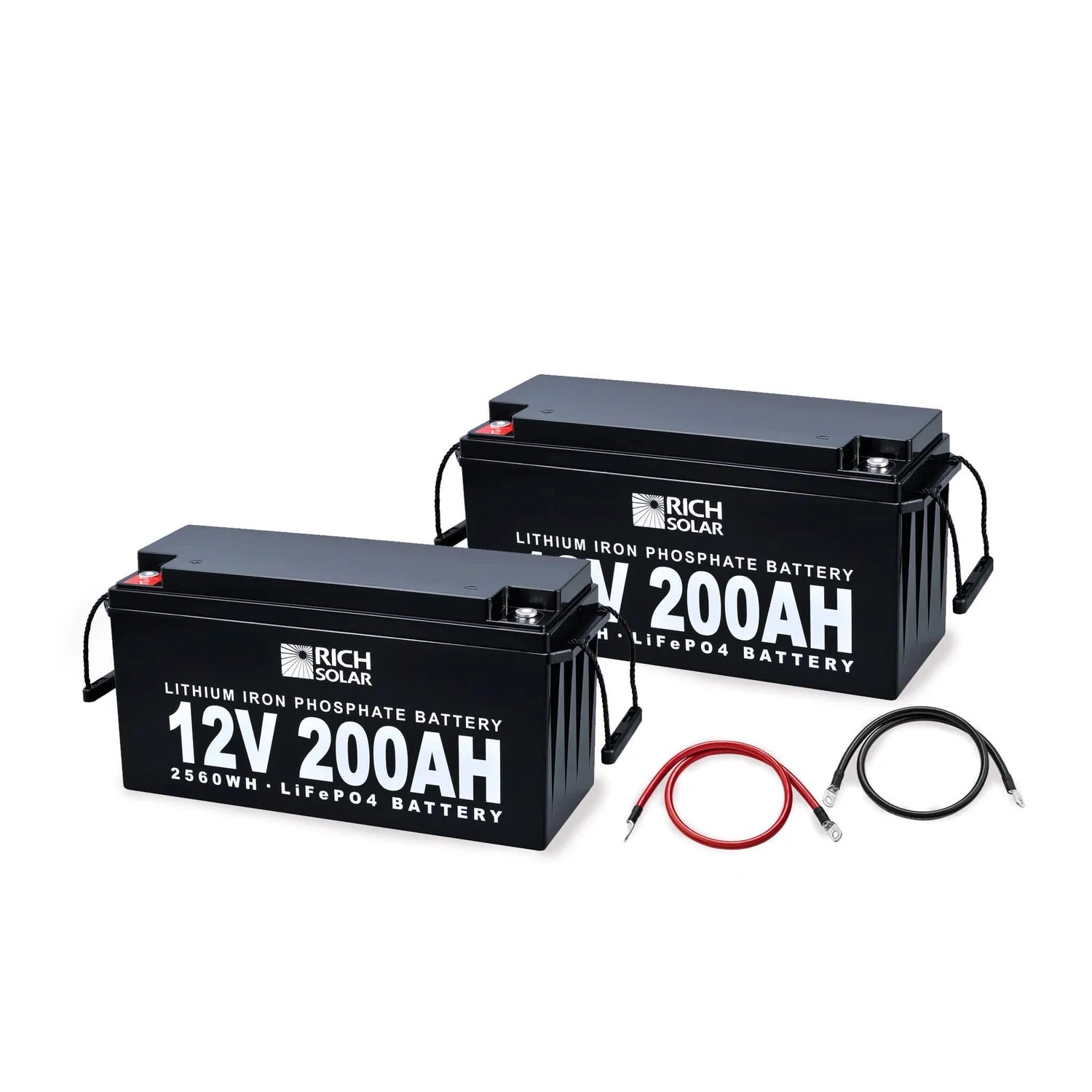

What's In The Box

• 2x 12V 200AH LiFePO4 Battery

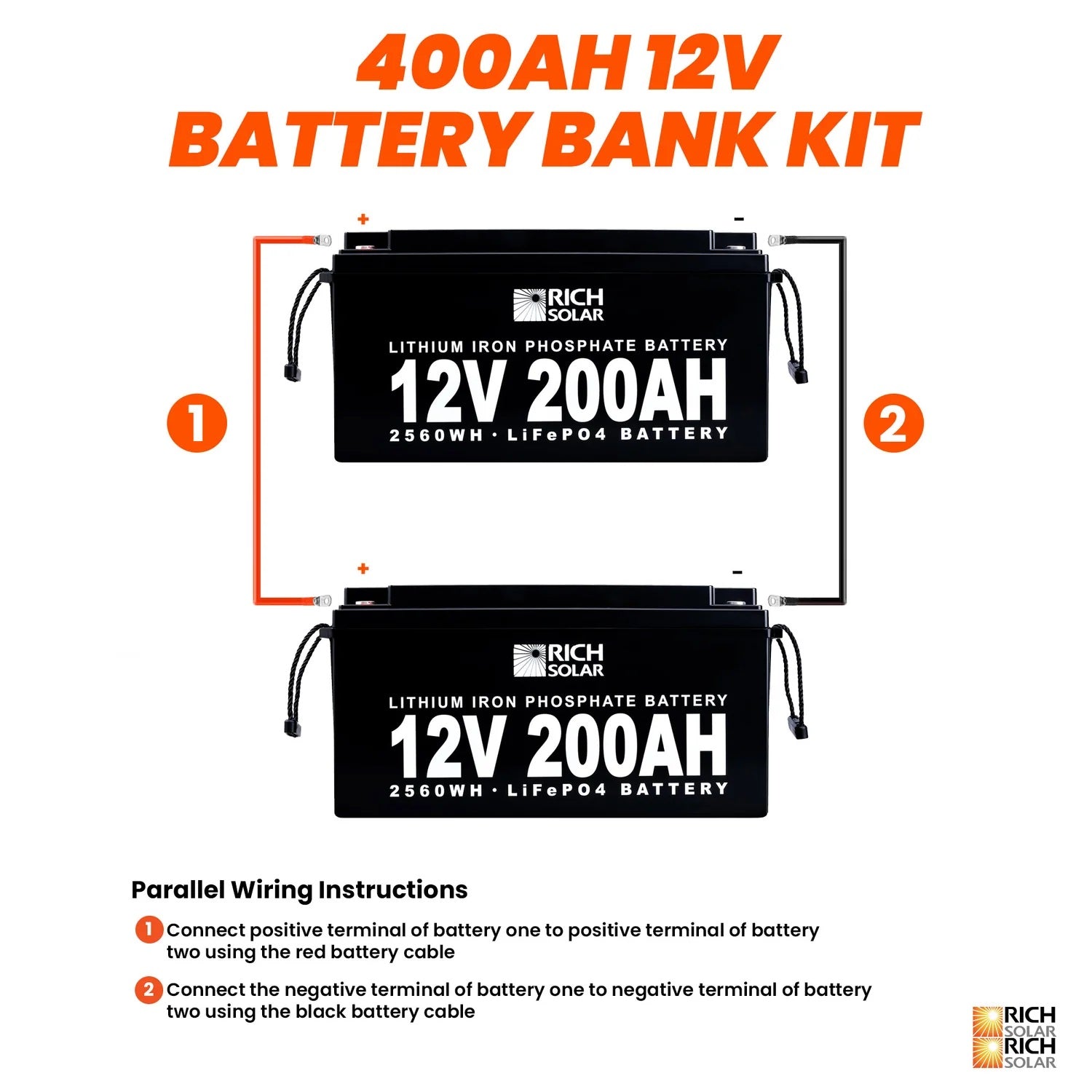

• 2x 1ft 2 AWG Battery Cable

3-Year Warranty

• Rich Solar provides a 3-year Manufacturer Defect for this solar battery.

Rich Solar 12V 200Ah LiFePO4 Lithium Iron Phosphate Battery Specifications

Electrical Specifications

Nominal Voltage:	12.8V
Nominal Capacity(at .5C, 77°F):	200Ah
Minimum Capacity (at .5C, 77°F):	190Ah
Expected Cycle Life:	>5000 cycles w/1C charge and discharge rate, at 77°F, 80% DOD

Operating Specifications

Charge Method:	Smart charger, constant current, constant voltage
Operating Voltage:	12.8 V
Capacity:	200 Ah
Energy:	2560 Watt Hours
Charge Voltage Range (Max 14.6V):	14.4 -14.6V
Continuous Charge Current:	100A
Continuous Discharge Current:	200A
Over Voltage Shutdown:	15.6 +/-0.2V
Discharge Cut-off Voltage:	8V =/- 0.5V
Self Discharge (stored at 50% SOC):	<3%/month
Waterproof:	IP65

Temperature Performance

Charge Temperature:	32° F to 140° F
Discharge Temperature:	-4° F to 140° F
Storage Temperature:	-4° F to 140° F
BMS High Temperature Cut-off:	149°F
BMS Low Temperature Cut-off:	32°F

Physical Specifications

Battery Dimensions:	19.0″L x 6.7″W x 9.5″H
Weight:	42.5 lb
Group Size:	62
Battery post size:	5/16″

BMS Operation

Over Charge Protection

Over charge detection voltage:	3.9 +/- 0.05V
Over charge detection delay time:	0.96 – 1.4s
Over charge release voltage:	3.80 +/-0.05V
Maximum charge voltage:	3.65 +/-0.05V

Over Discharge Protection

Over discharge detection voltage:	2.0V +/- 0.05V
Over discharge detection delay time:	115-173ms
Over discharge release voltage:	2.3V +/- 0.10V
Over Current Protection Over current detection delay time:	9 +/- 2ms
Over current release condition:	Cut load
