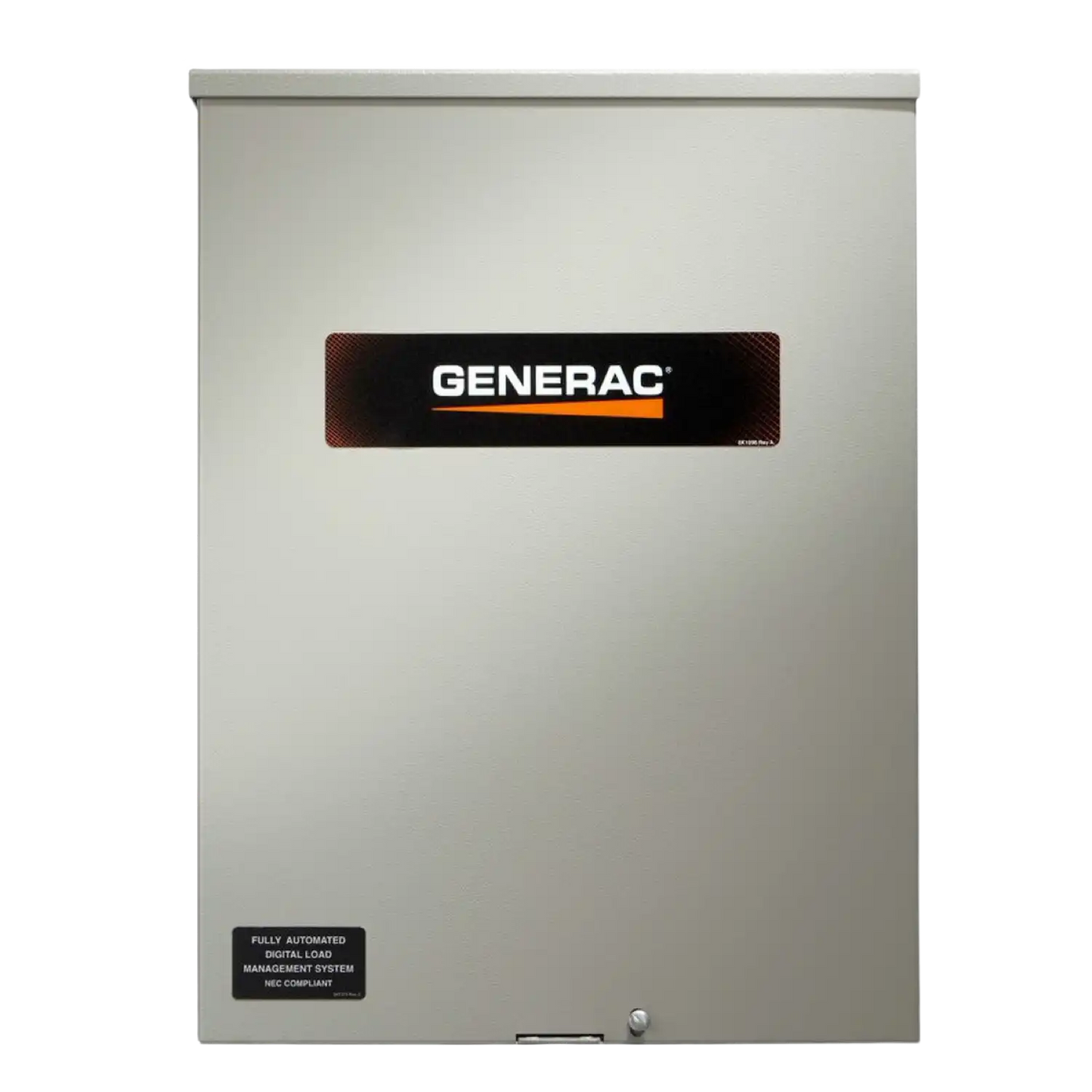

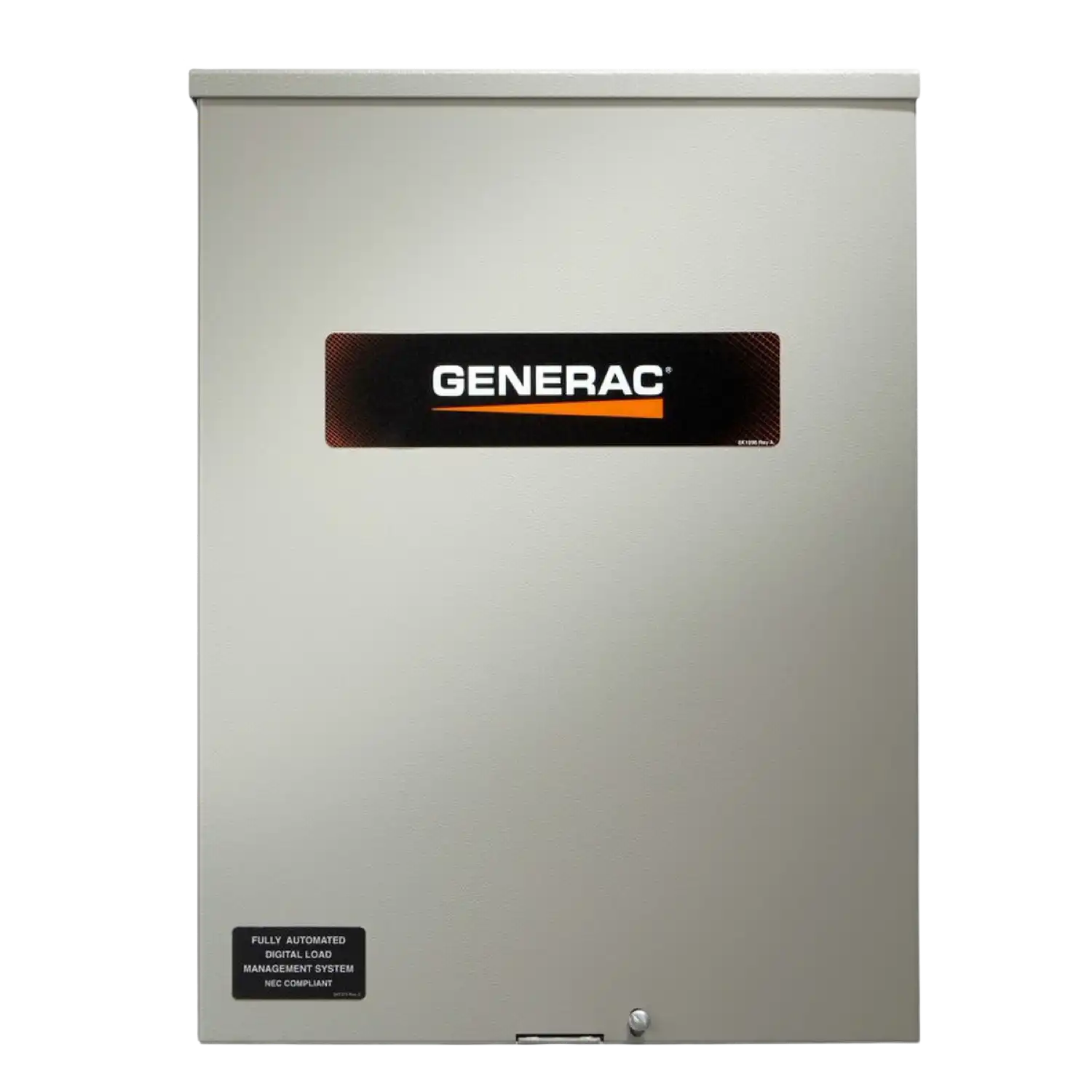

Generac RTSW400A3 400 Amp Service Entrance Rated Single Phase Automatic Transfer Switch Scratch & Dent

Generac

$2,699.00
$2,699.00
In Stock — Ready to Ship
Free Shipping
Mfr. Warranty
Authorized Dealer
Easy Returns

Price Match Guarantee

Found it cheaper? Send us the link and we'll match or beat the price at any authorized retailer.

View full details

Product Details

This Generac Smart Switch Automatic Transfer Switch works with the digital controller on Generac air-cooled and liquid-cooled generators. Features DLM Technology allowing the switch to manage two air conditioning loads with no additional hardware.



Match the Smart Switch to your electrical service voltage and phase and your generator's voltage and phase.



Scratch and dent units may have dents/dings/cracks.  They are unused and come with a full warranty.

Overview (Right Column)
5 year factory warranty
NEMA 400a Transfer Switch
Brand new in box
Ships directly from Generac
Authorized Generac dealer

 Outlets
Features (Left Column)
  • Able to manage 4 individual HVAC loads with no additional hardware
  • Designed for use with single-phase generators that utilize an Evolution or Nexus Controller
  • Aluminum NEMA/UL Type 3R (indoor-outdoor) enclosure with electrostatically applied and baked power paint provides additional corrosion protection
Features (Right Column)
  • Gain even more flexibility when used in tandem with Smart Management Modules
  • Smart A/C Module manages loads by shedding the connected loads in the event of a drop in generator frequency (overload)
Product Specifications (Left Column)
Manufacturer Generac
UL Listed
UL1008
Voltage 120/240 - Single Phase
Enclosure Aluminum NEMA 3R
Type Automatic Transfer Switch
Dimensions 48"L X 22"W X 10"H
Weight 140 lbs.
Product Specifications (Right Column)
Model RTSW400A3
Switch Amps 400
Switch Circuits Whole House Switch
ATS Poles 2
Consumer Warranty 5-Year Limited Warranty ATS
WARRANTY

This item comes with a 5 year factory warranty.
