Product Details
Features
Specifications
General
- Rated Voltage: 240
- Total Harmonic Distortion: Less than 5%

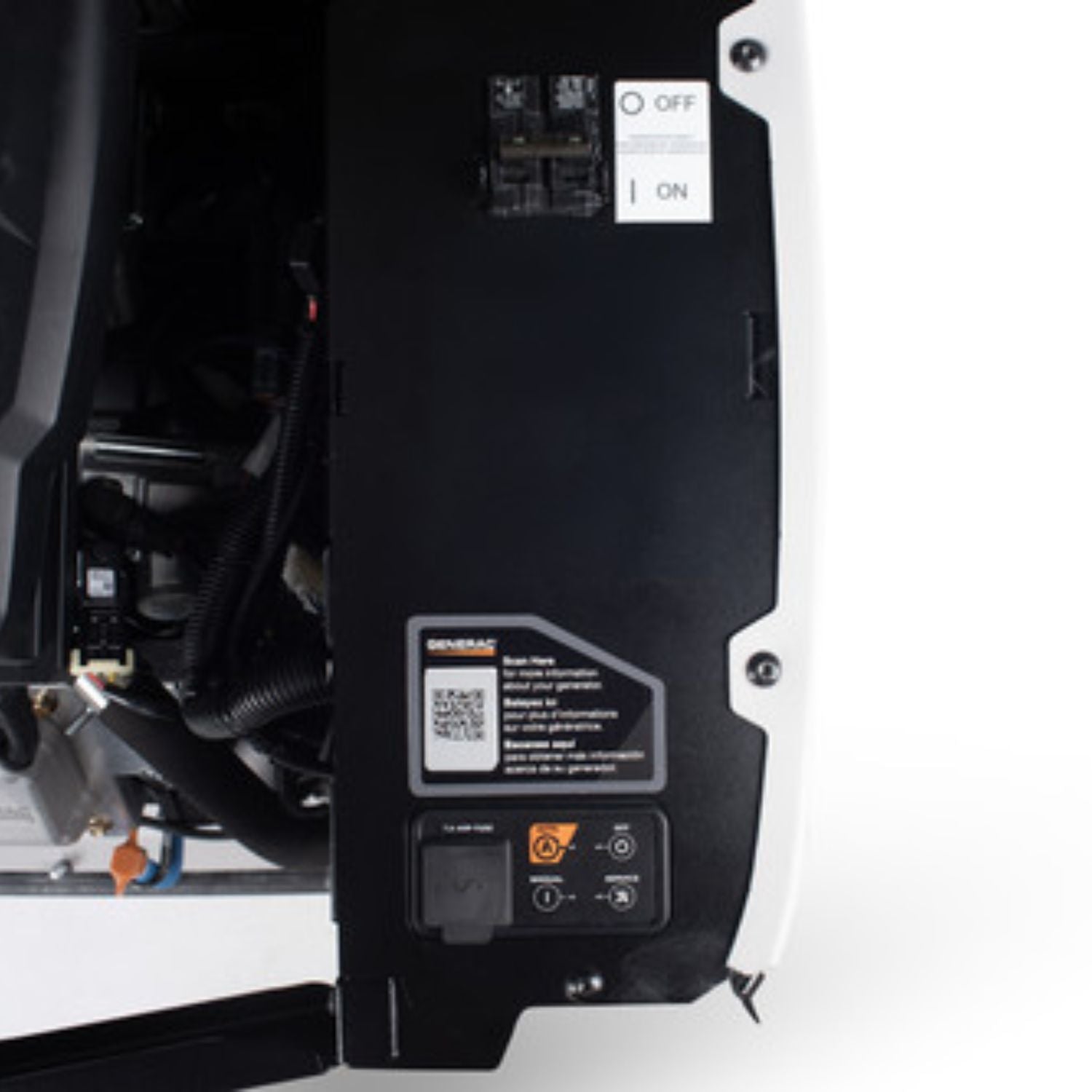

- Main Line Circuit Breaker: 80 Amp
- Phase: 1
- Number of Rotor Poles: 2
- Rated AC Frequency: 60 Hz
- Power Factor: 1.0
- Exercise Duration: Adjustable 5–20 min (5 min factory default)
- Fuel Type: Load
- Natural Gas: 1/2 Load
- Liquid Propane: 1/2 Load
- Alternative LP Data: 1/2 Load
Battery
- Battery Requirement (not included): 12V, AGM Powersport Battery Group BTX20L, 310 CCA minimum
Output
- Rated Maximum Continuous Power Capacity (LP): 18 kW*
- Rated Maximum Continuous Power Capacity (NG): 17 kW*
- Rated Maximum Continuous Load Current – 240V (LP / NG): 75 / 71
- Sound Output at 23 ft (7 m) – Normal Load: 65 dB(A)
- Sound Output at 23 ft (7 m) – Quiet-Test™ Mode: 55 dB(A)
Dimensions & Weight
- Unit Weight (lb / kg): 426 lb / 193 kg
- Dimensions (L × W × H) (in / cm): 46.4 × 26.3 × 30.7 in / 117.9 × 66.8 × 77.9 cm
Warranty
This item comes with a 5-Year Factory Warranty from Generac, covering defects in materials and workmanship from the date of original purchase. The unit must be registered and proof of purchase must be available for warranty service. All warranty repairs must be performed by an authorized Generac Service Dealer. Exclusions include normal maintenance items (tune-ups, oil changes, filters), damage from misuse, and non-Generac replacement parts. For warranty service, locate your nearest authorized Generac dealer at generac.com or call 1-888-436-3722.
