AIMS Power Remote Battery Monitor
AIMS Power
Couldn't load pickup availability
Price Match Guarantee
Found it cheaper? Send us the link and we'll match or beat the price at any authorized retailer.
Product Details

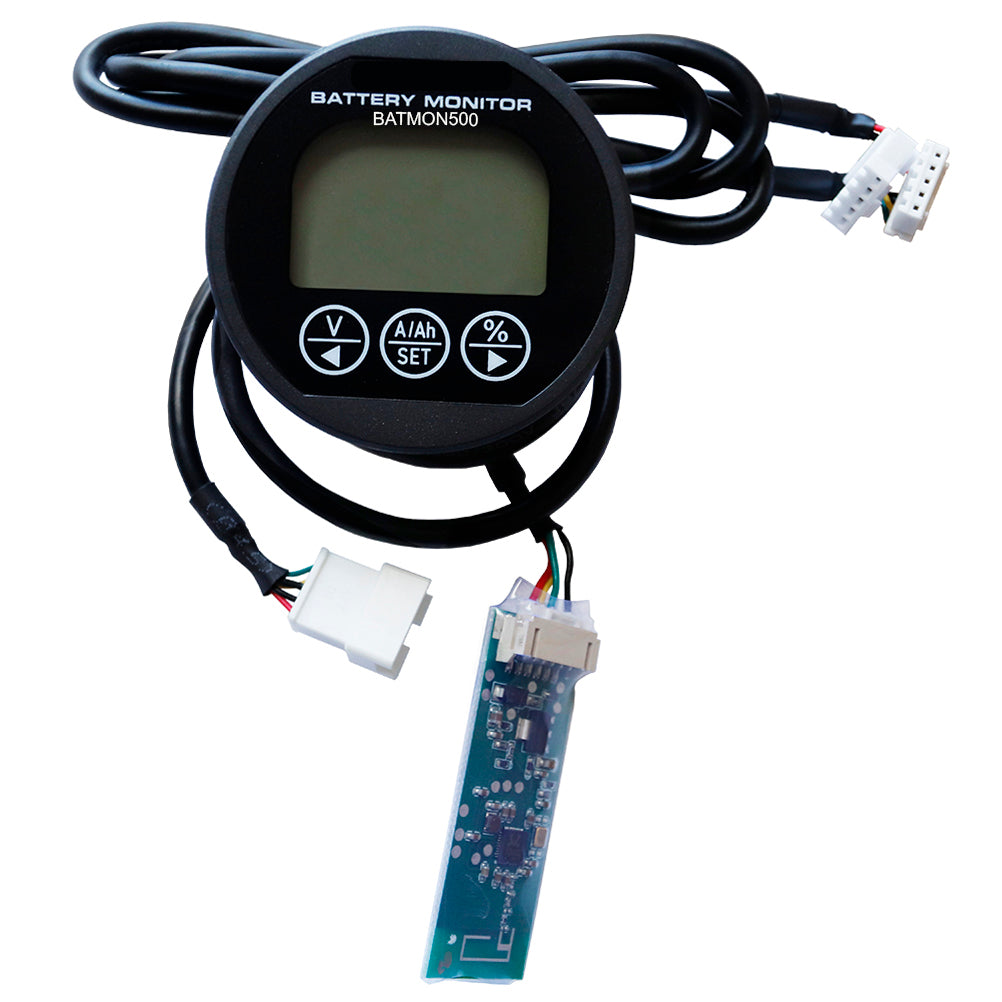

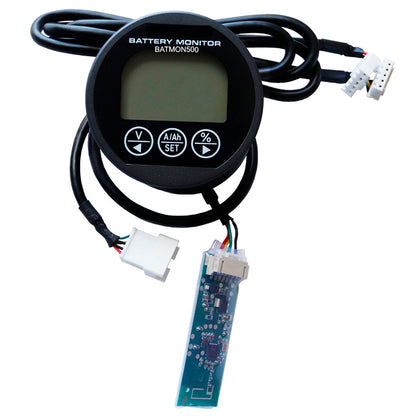

AIMS Power Remote Battery Monitor Overview
The AIMS Power Remote Battery Monitor is a high-precision meter that allows you to check the status of your battery via the monitor display or your smartphone. It monitors voltage, current, State of Charge (SOC) and total ampere hours. Up to 500 Amps, 8V-80V DC.
Through the use of the current shunt, the battery monitor measures the discharge or recharge currents and calculates the Ampere-hours (Ah) going in and out of the battery. High-precision voltage measurements are taken and displayed in real-time through the use of a field-installed sense wire.
The AIMS Power battery monitor is compatible with all types of batteries including Lithium-ion, lead-acid and nickel-metal hydride batteries.
AIMS Power Remote Battery Monitor Features
Data Displayed
- Battery Voltage
- Battery Current
- Battery State ofCharge (SOC)
- Total Ampere-hour capacity
Included Components
- Current shunt
- Shielded wire (1M)
- Display
- Butterfly nut
- Sense wire 22AWG (1 M)
- Bezel square

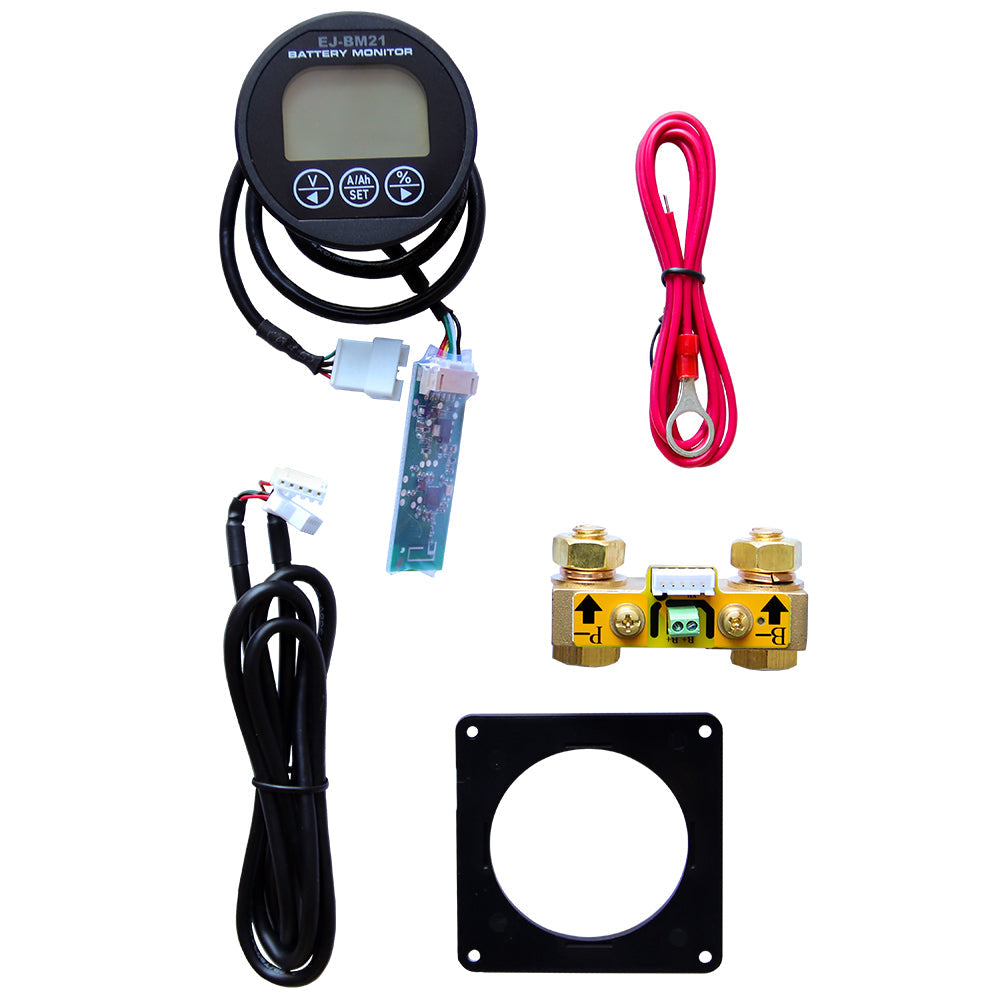

What's In The Box
- Current shunt
- Shielded Wire (1 M)
- Display
- Butterfly Nut
- Sense Wire 22AWG (1 M)
- Bezel square
AIMS Power Remote Battery Monitor Specifications
| Parameter | MIn | Max | U of M |
| Voltage | 8 | 80 | V |
| Current | 0 | 500 | A |
| Capacity | .1 | 999 | Ah |
| Temperature | 0 | 35 | C |
| Active Parasitic Current | 14 | mA | |
| Standby Parasiric Current | .8 | mA | |
| Sleep Parasitic Current | 80 | uA | |
| Voltage Accuracy | +/-1 | % | |
| Current Accuracy | +/-1 | % | |
| Capacity Accuracy | +/-1 | % |
