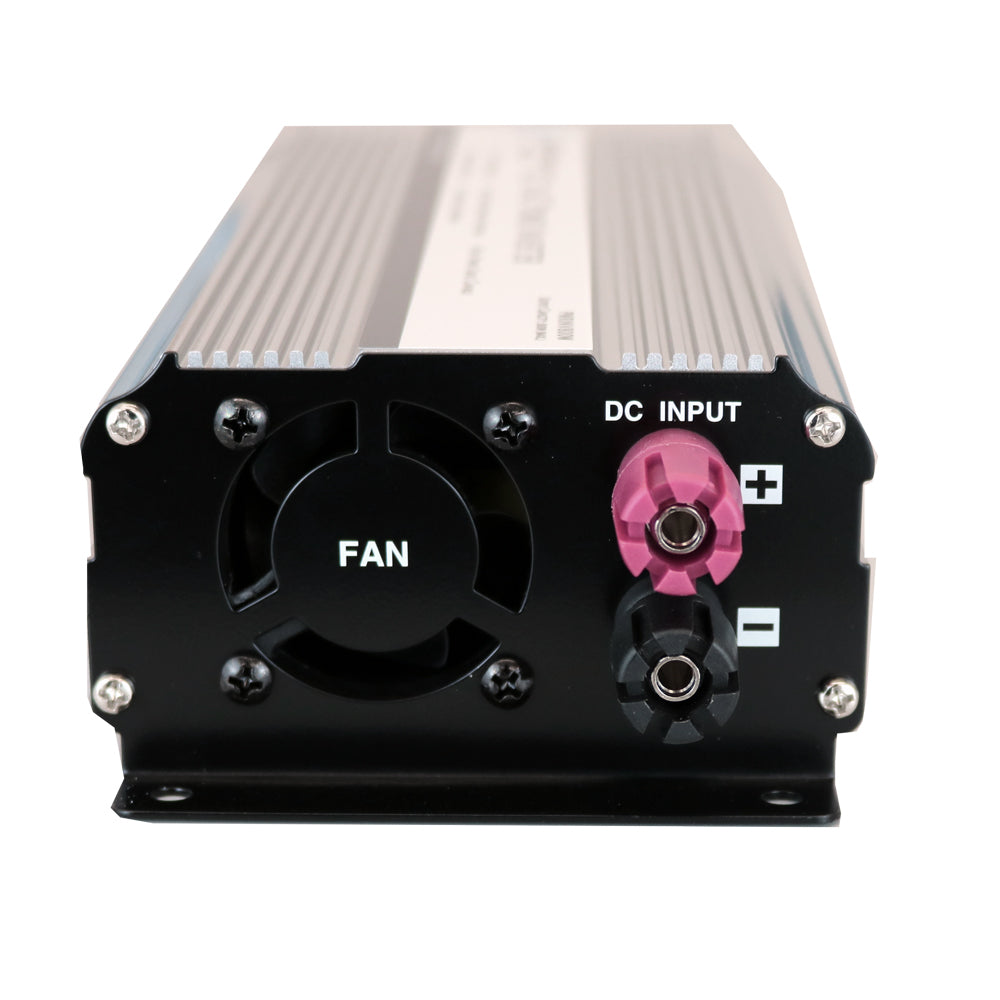

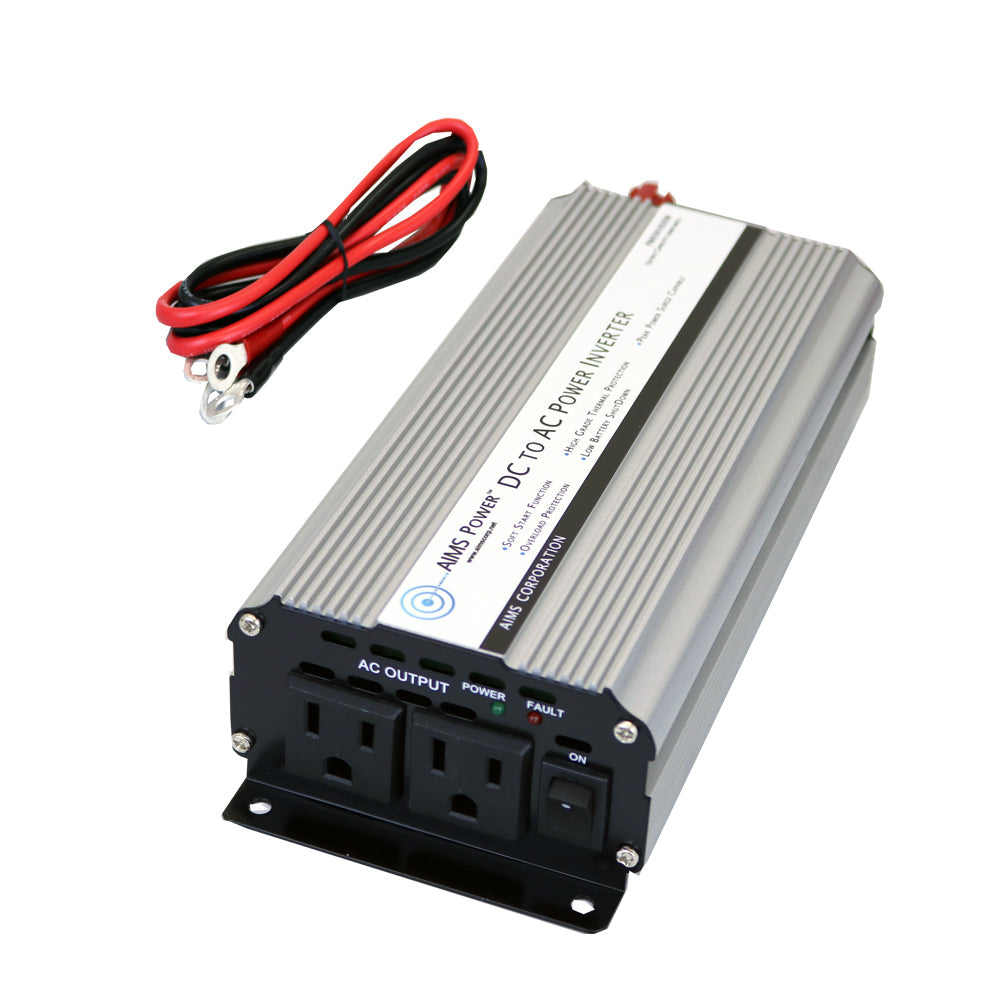

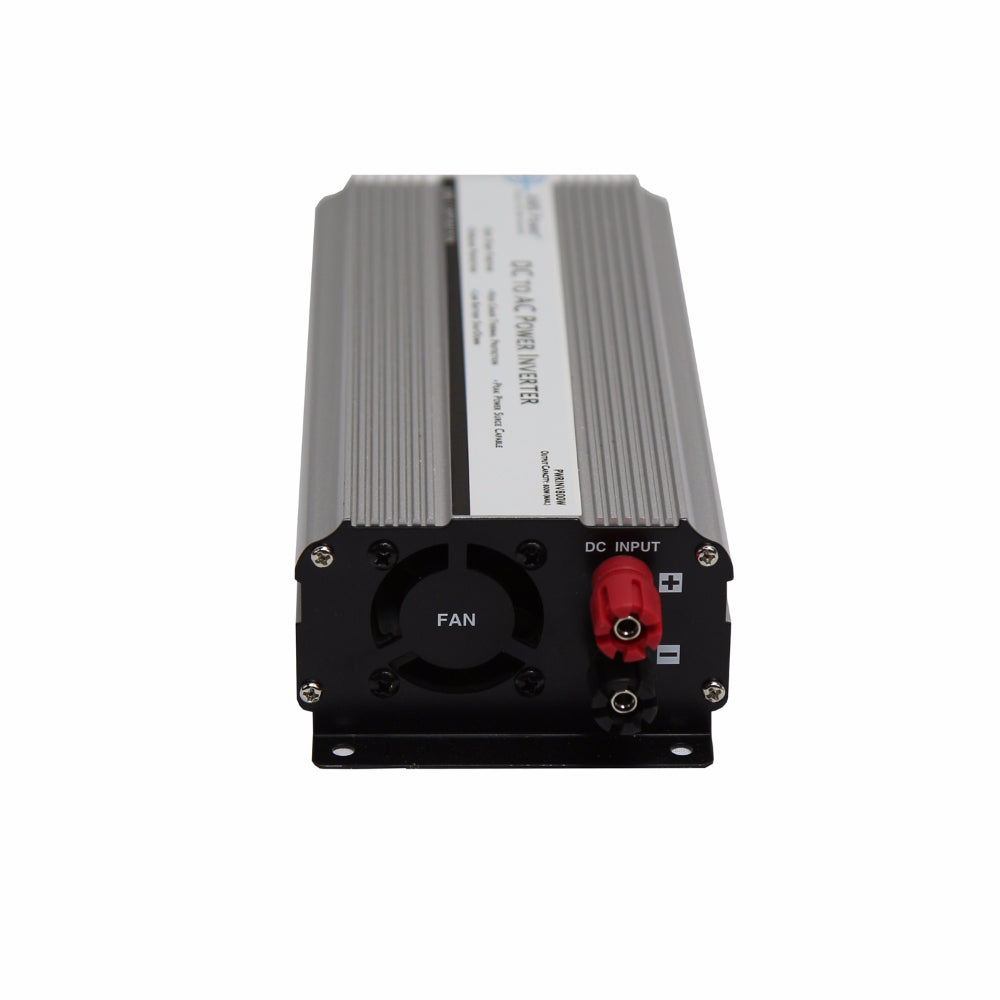

AIMS Power 800 Watt 12 Volt Modified Sine Power Inverter

Introducing The AIMS Power 800 Watt 12 Volt Modified Sine Power Inverter - An Inexpensive On-The-Go Power Solution

Modified Sine Wave Power Inverters represent the most economical solution for powering a large number of appliances. The waveform produced by this inverter is “blocky” resembling a set of steps whereas the waveform produced by utility companies is smooth much like a curvy road. Therefore, because of the type of waveform, the Modified Sine Wave Power Inverter are suitable for most applications.

This inverter is also more efficient in converting battery power to AC. So if you’re looking to make a pot of coffee run a heater or air conditioner or appliances that can withstand occasional electrical noise a Modified Sine Wave Inverter is a cost-effective solution.

To select the right inverter first determine what devices you would need to run in the event of a power outage. Then select the appropriate inverter that can carry the combined wattage requirements of these devices. Some appliances have a start up amperage.



AIMS Power 800 Watt 12 Volt Modified Sine Power Inverter Features

Provides 800 Watts Continuous And 1600 Watts Surge For Varied Appliances

Provides 800 watts of continuous power and 1600 watts surge capability. This ensures the inverter can efficiently power a variety of household appliances, including those with higher startup power demands, making it ideal for diverse usage needs.

Achieves Up To 95% Efficiency At 1/3 Load, Maximizing Battery Life

With up to 95% efficiency at 1/3 load, this inverter maximizes battery life by effectively converting DC to AC power. This ensures minimal energy waste, providing reliable power for your devices without unnecessary battery drain.

Equipped With Short Circuit, Over-Load, And Over-Temperature Protections For Safety

Equipped with short circuit, over-load, and over-temperature protection features, this inverter ensures your devices are safeguarded against unexpected electrical faults. Automatic shutdown functions help prevent potential damage, maintaining both device integrity and user safety.

Includes Dual AC Receptacles And LED Indicators For Easy Monitoring

The inverter includes dual AC receptacles and LED indicators to signal power status and fault conditions, facilitating easy monitoring and operation. The straightforward on/off switch ensures simple control, making it convenient for all users.

Weighs Only 2.6 Lbs With Dimensions For Easy Portability And Installation

Weighing only 2.6 lbs, with dimensions of 9.25”x 3.5”x 2.25”, this inverter is highly portable. Its lightweight and compact design make it easy to transport and install, fitting well in various settings.

Aluminum Case And Cooling Fan Ensure Optimal Temperature Control During Use

The aluminum case and integrated cooling fan provide effective heat dissipation, maintaining optimal operating temperatures. This feature ensures reliable performance and prevents overheating, even during extended use or in warmer environments.

AIMS Power 800 Watt 12 Volt Modified Sine Power Inverter Warranty

AIMS provides a 1-year warranty policy, ensuring the absence of defects in materials, workmanship, and performance during the warranty period.

AIMS Power 800 Watt 12 Volt Modified Sine Power Inverter Specifications

Continuous Output Power	800 Watts
Surge Power Capability (peak power)	1600 Watts not meant for start up applications
Protection	Short circuit protection
DC Input / Operation Voltage	10 to 15 Volts · Output voltage: 120 Volts ac
Output Wave Form	Modified Sine Wave
Output Frequency	60 Hz
Battery Low Voltage Alarm	10.5 +/- 0.5 Volts
Battery Low Voltage Shutdown	10.0 +/- 0.5 Volts
No Load Current @ 12V	< 0.7 dc Amps
Full Load Efficiency	90%
1/3 Load Efficiency	95%
No Load Minimum Operating Temperature	-15 degrees Celsius
Full Load Maximum Operating Temperature	55 +/- 5 degrees Celsius (automatic shutdown)
AC Output Socket Type	dual Type 2 -3 prong
High Input Voltage Protection	15.5V
Low Input Voltage Shutdown	10.5V
Fuse Protection	Internal fuse protection
Dimensions (L x W x H)	9.25”X 3.5”X 2.25”
Unit Weight	2.6 lbs.
Boxed Weight	4.0 lbs.



AIMS Power 800 Watt 12 Volt Modified Sine Power Inverter Manual
