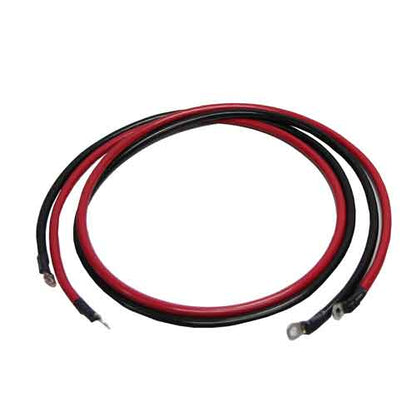

AIMS Power 15 Foot 4 AWG Inverter Cable Set
AIMS Power
Couldn't load pickup availability
Price Match Guarantee
Found it cheaper? Send us the link and we'll match or beat the price at any authorized retailer.
Product Details
AIMS Power 15 Foot 4 AWG Inverter Cable Set Overview
This product was designed to meet or exceed all test requirements called for by the Underwriters Laboratories and the National Electric Code and is recommended for use in accordance with UL and CSA for internal wiring of uninterruptible power supply equipment UL standard 1778. Also suitable for use in transformers switchboard panels controls electronic circuits and meters. It can be used as battery cable battery charger cable motor lead and power hookup cable. This product offers a unique flame retardant polyvinyl chloride compound (VW-1) and is moisture abrasion acid diesel fuel and oil resistant. It is extremely flexible and easy to work with.
AIMS Power 15 Foot 4 AWG Inverter Cable Set Features
- #4 AWG
- UL certified
- Lugged on both ends
- Perfect for inverter models 1500 Watt 12VDC or smaller, 2000 Watt 24VDC with high surge, 3000 24VDC,
- Polyvinyl chloride flame retardant
- Moisture, abrasion, acid, diesel fuel and oil resistant
- Extra flexible RT4 rated
AIMS Power 15 Foot 4 AWG Inverter Cable Set Specifications
- 600V
- Max current – 155 A
- Temperature – 105⁰ C
- Weight – .5 lbs per foot per set (red and black)
- Outer diameter – .43”
- Lug diameter – 3/8”
- 1 black and 1 red wire
