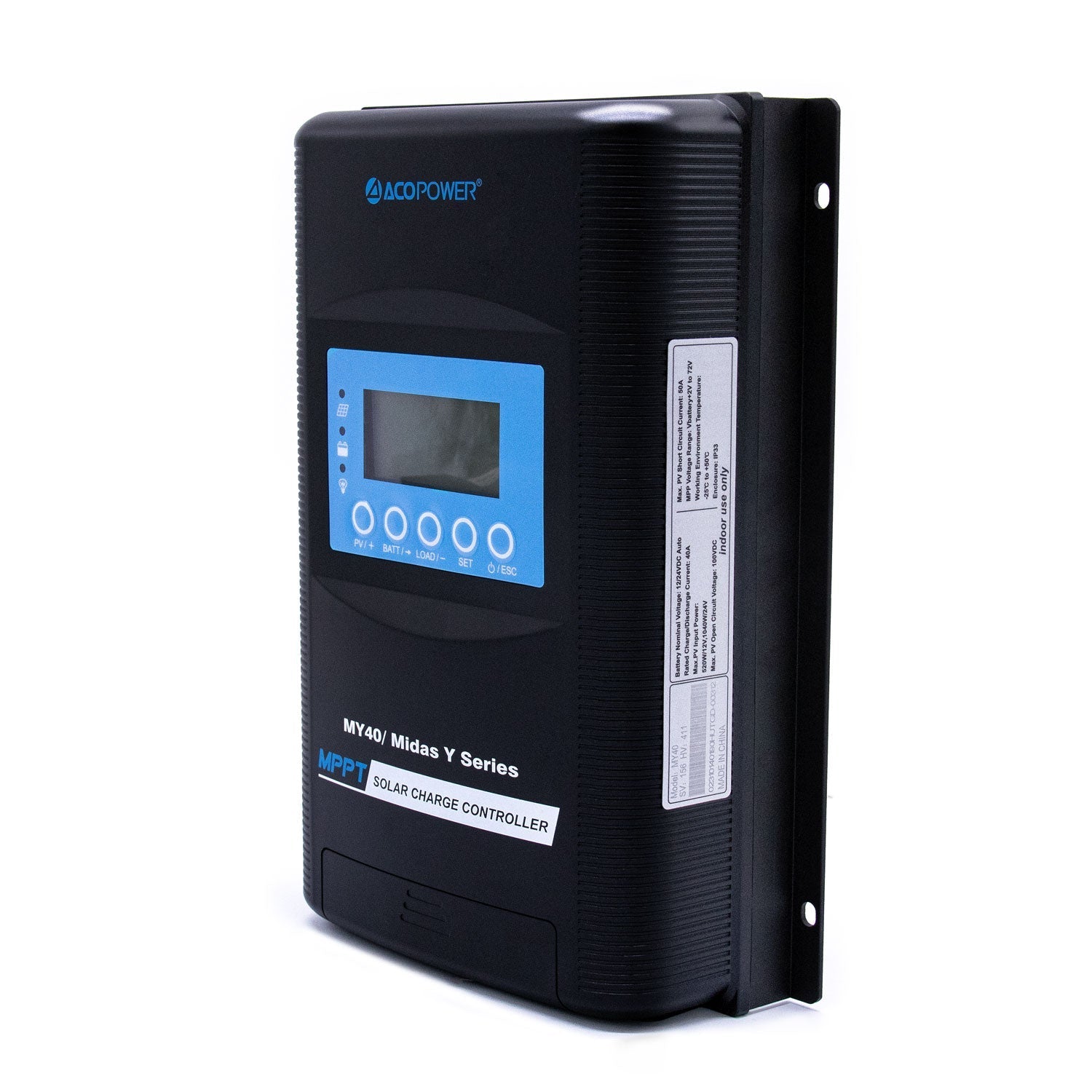

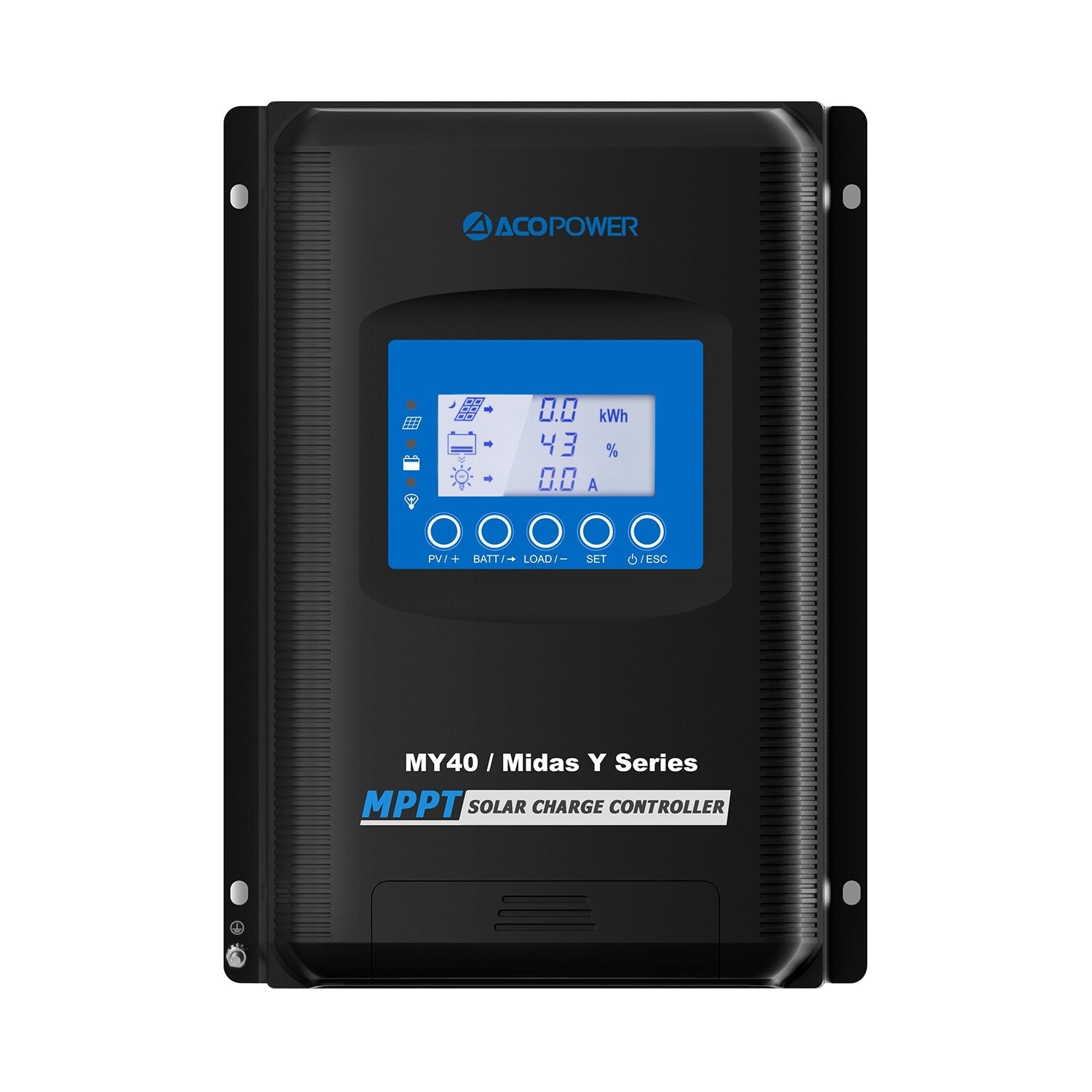

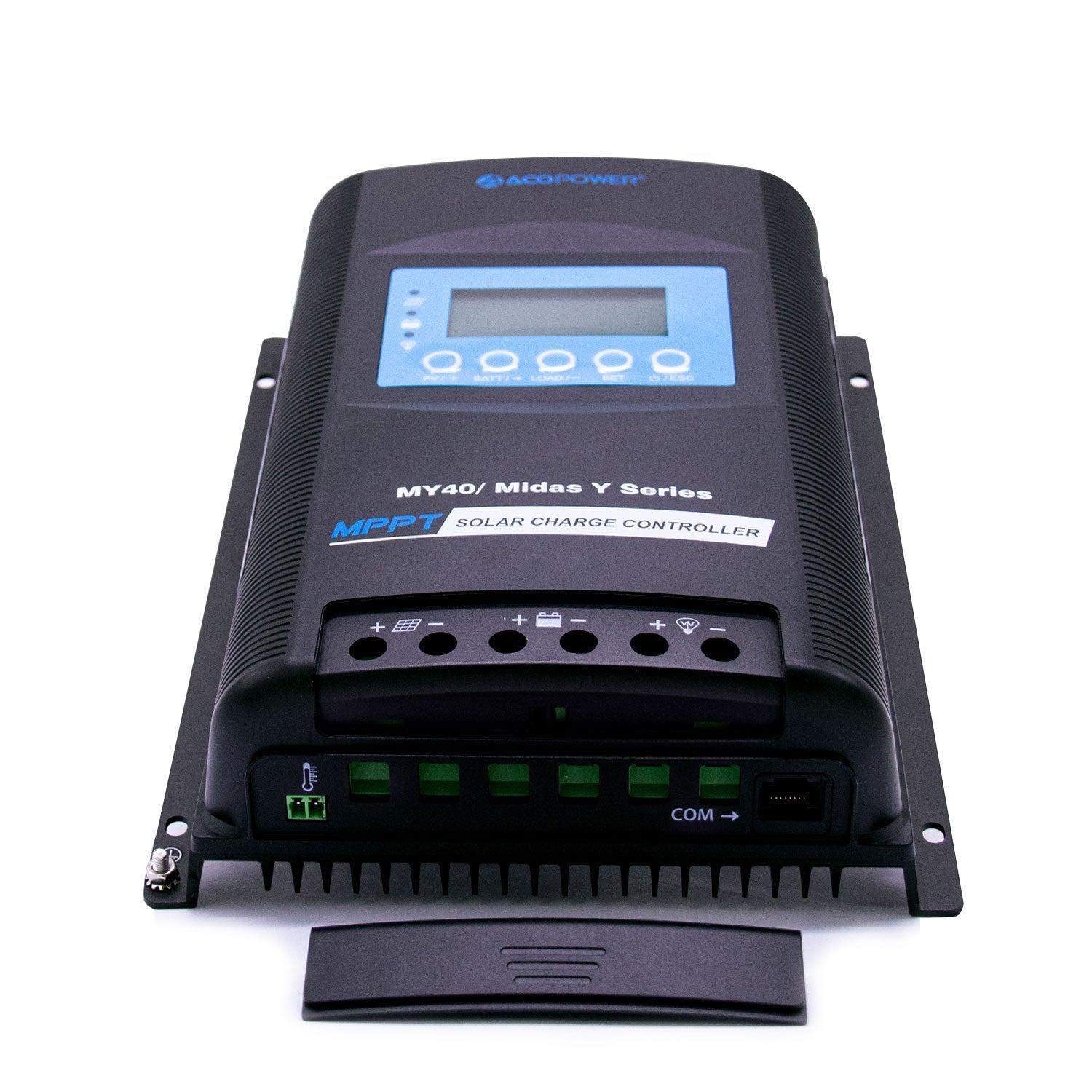

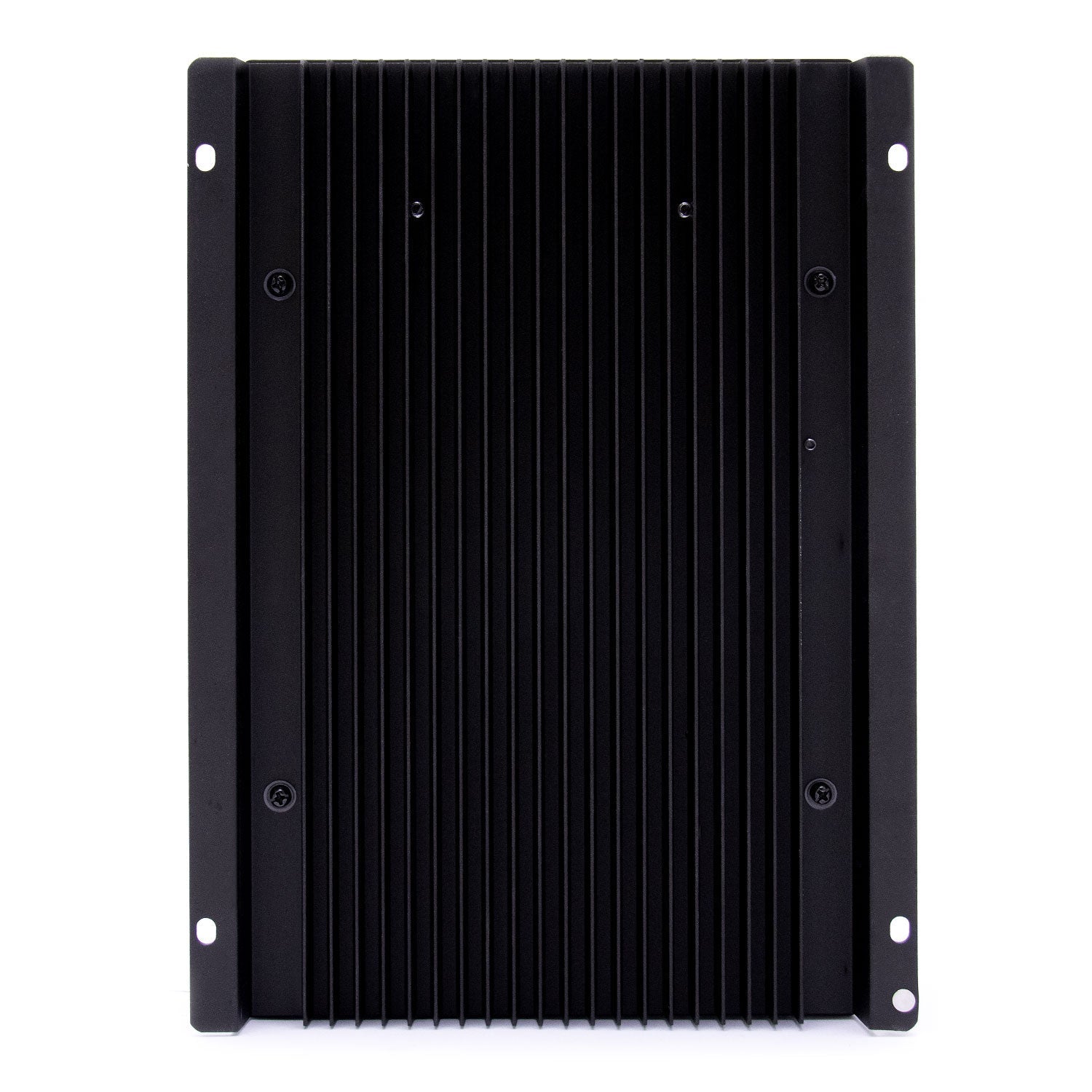

Acopower Midas 40A MPPT Negative Ground Solar Panel Charge Controller LCD Display

Acopower Midas 40A MPPT Negative Ground Solar Panel Charge Controller LCD Display

Planning an off-grid expedition with your reliable solar station? Equip yourself with the Acopower Midas 40A MPPT, a negative ground solar panel charge controller with an extra large and brighter LCD display. Built to last, this durable 40A MPPT is a simple plug and play controller that is compatible with any negative ground system.

Fitted with user-friendly, intuitive controls, Acopower's Midas 40A auto identifies 12V/24V DC system voltages. With a peak conversion efficiency of 98%, enjoy optimal power from your solar panels to your systems.

This MPPT controller is well-protected against reverse polarity, overcharging, over discharging, overload, short circuiting and reverse current. Optimized for an extended battery life and improved system performance, this charge controller includes 4 stage of battery charging - Bulk, Boost, Float and Equilization.

Midas 40A comes with a temperature sensor that automatically compensates temperature keeping your MPPT unit chilled out even at peak performance.

Specifications:

Nominal System Voltage: 12/24VDC Auto

Battery Input Voltage Range: 8V～32V

Battery Type: 1. Lead-acid battery including Sealed (default), Gel, Flooded and User; 2. Lithium Battery including LiFePO4, Li and User

Rated Charge Current: 40A

Rated charge Power: 520W/12V 1040W/24V

Max. PV Open Circuit Voltage: 100V (1) 92V (2)

MPPT Voltage Range: (Battery Voltage+2V) ~72V

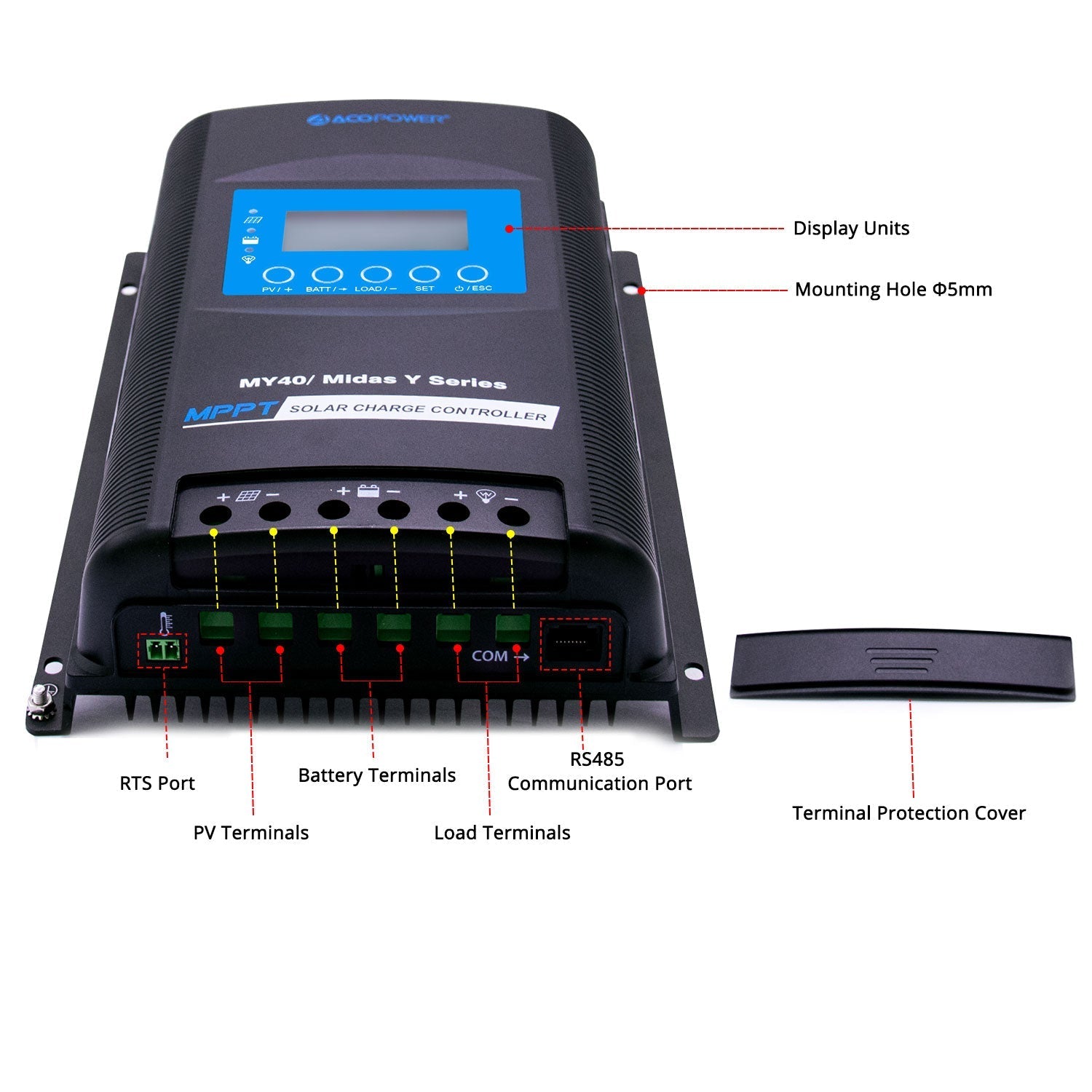

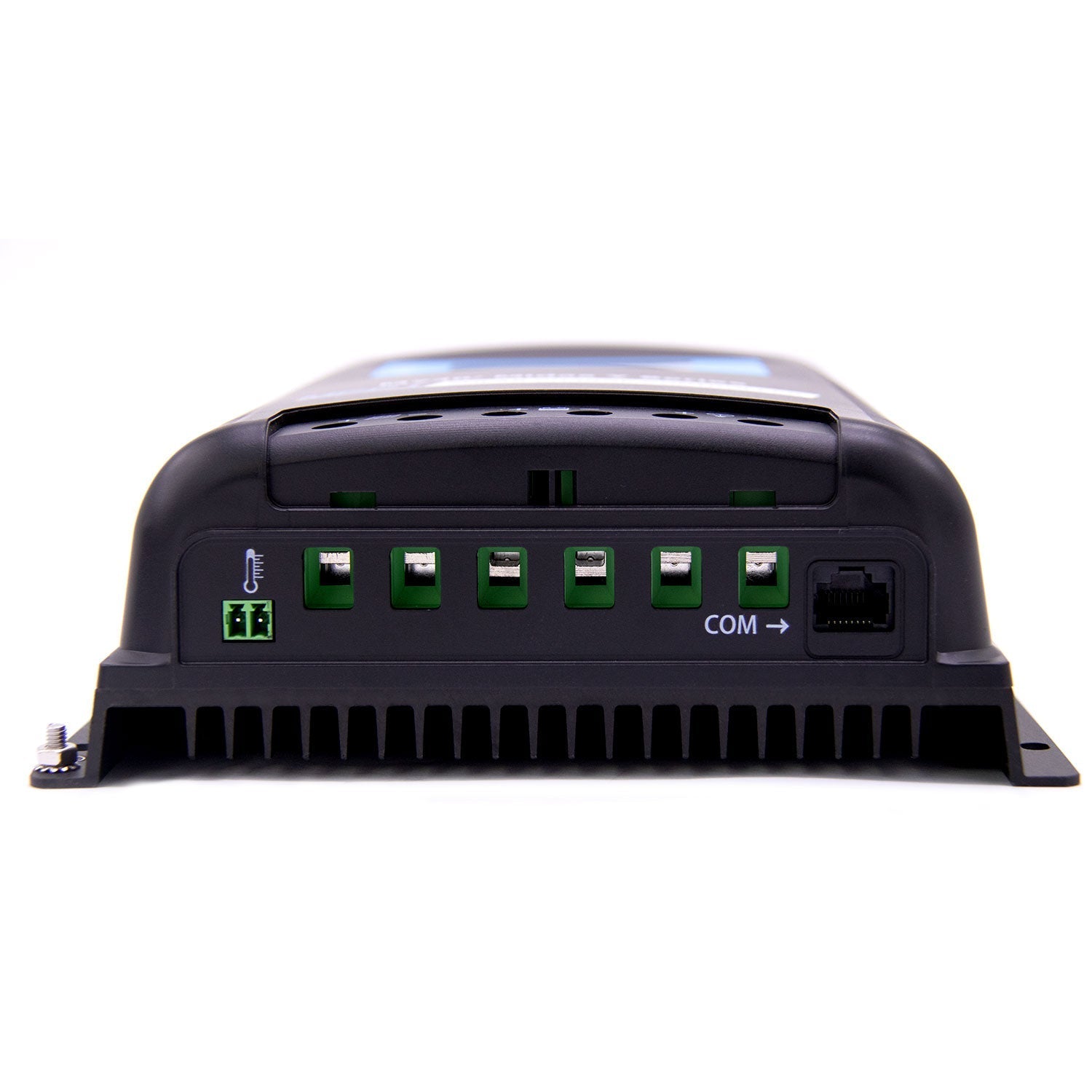

RS485 Interface: 5VDC/200mA(RJ45)

Dimensions: 12.01 x 8.27 x 3.98 in.

Weight: 4.24 pounds

What's in the Box:

1 x Midas 40A MPPT Negative Ground Solar Panel Charge Controller

1 x Temperature Sensor

1 x User Manual
