Product Details

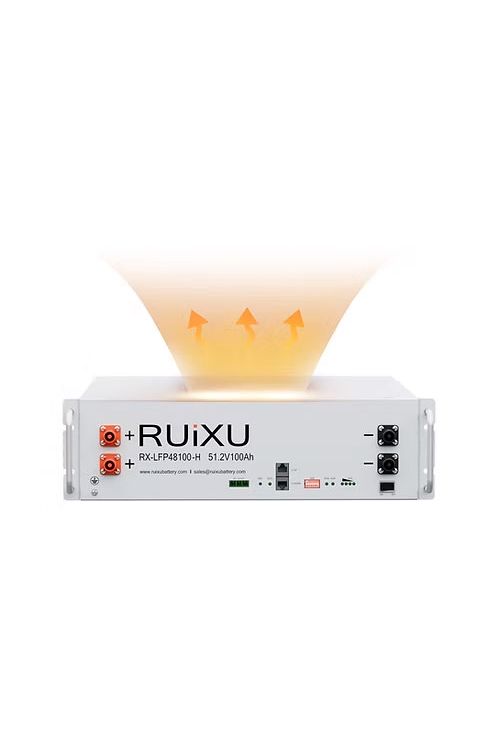

RUiXU RX-LFP48100-H 19" Rack Mounted 3U Module Self-heating
The RUiXU RX-LFP48100-H is a high-performance, 19" rack-mounted 3U module designed for efficient power storage and energy management. Specifically engineered for demanding environments, this unit integrates seamlessly into standard 19-inch racks, offering an ideal solution for power systems, telecoms, and industrial applications. The self-heating feature allows the system to maintain optimal temperature levels even in challenging conditions, ensuring stable performance and reliability.
It uses LFP (Lithium Iron Phosphate) battery technology, providing long cycle life, enhanced safety, and high energy density. The RX-LFP48100-H is capable of delivering 48V DC output with a 100Ah capacity, supporting a range of applications that require consistent, efficient energy storage. With robust design and excellent thermal management, this module is the perfect choice for critical infrastructure that demands power continuity and operational stability.

RUiXU RX-LFP48100-H Specs
- Nominal Voltage: 51.2V
- Nominal Capacity@0.2C: 100 Ah
- Min. Capacity@0.2C: 100 Ah
- Nominal Energy: 5120Wh
- Dimesion (W*D*H): 19" x 18.1" x 5.23"
- Weight: 103.6lb
- Recommended Charge Current: 50A
- Cycle Life: ≥6000 cycles @90%DOD
- Operation Temperature: 14~122℉
- Storage Temperature: 14~113℉
- Includes: (1) RUiXU 48V Server Rack battery (RX-LFP48100), (1) RJ45/CAT5e Patch Cable, (1) Ground Cable, (1) Set of Parallel 4AWG Cables per battery
RUiXU RX-LFP48100-H Features
- Self-heating 48V server rack battery is designed for cold weather using
- Can safely charge at temperatures down to -20°C (-4°F) by a standard charger or solar charger
- The heater pads which draws power from the charger itself
- Support up to 32 units in parallel, scale from 5 kWh to 160 kWh configuration without external controller
- Use DIP address to set the RS485 baud rate and inverter protocol choosing
- Canbus: Victron,SMA,Studer Innotec,Sofar,Solark,Solis,Goodwe,Deye, Growatt,SAJ,LUXPOWER,Megarevo,INVT,Sermatec,TBB, MUST,Sunsynk,Schneider
- RS485: MPP,Voltronic,RCT,Alpha outback
Your Satisfaction with RUiXU is Guaranteed:
- 10-Year Limited Warranty
- Lowest Price Guarantee
