RUiXU RX-LFP48100 19" Server Rack Mounted 3U Module
Ruixu
$1,059.00
Couldn't load pickup availability
Free Shipping
Mfr. Warranty
Authorized Dealer
Easy Returns
Price Match Guarantee
Found it cheaper? Send us the link and we'll match or beat the price at any authorized retailer.
Product Details

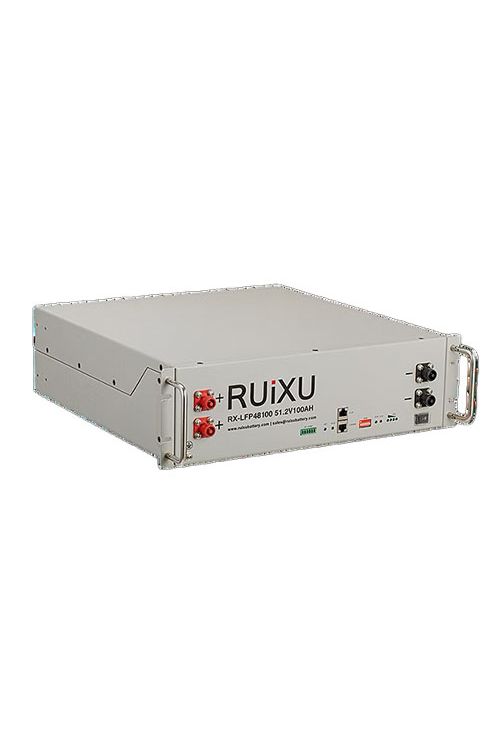

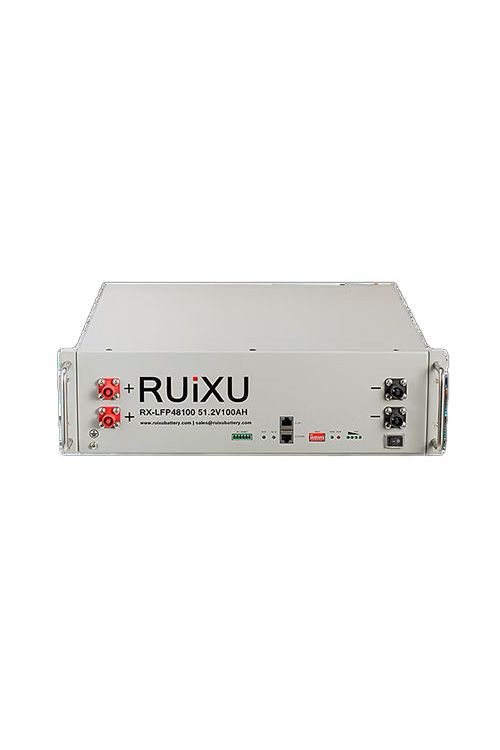

RUiXU RX-LFP48100 19" Rack Mounted 3U Module
The RX-LFP48100 is a high-performance 48V 100Ah LiFePO₄ (Lithium Iron Phosphate) battery module designed for rack-mounted energy storage applications. With a 3U form factor, it fits seamlessly into standard 19-inch racks, making it ideal for telecommunications, data centers, and renewable energy systems.
This modular and scalable energy storage solution is perfect for off-grid systems, UPS backup, and hybrid solar applications, delivering superior performance and longevity.
RUiXU RX-LFP48100 Specs & Features
- Nominal voltage: 51.2V
- Nominal capacity@0.2C: 100 Ah
- Min. capacity@0.2C: 100 Ah
- Nominal energy: 5120Wh
- Dimesion(W*D*H): 19" x 18.1" x 5.23"
- Weight: 103.6lb
- Operation temperature: 14~122℉
- Storage temperature: 14~113℉
- Canbus : Victron,SMA,Studer Innotec,Sofar,Solark,Solis,Goodwe,Deye,Growatt,SAJ,LUXPOWER,Megarevo,INVT,Sermatec,TBB,MUST,Sunsynk,Schneider
- RS485 : MPP,Voltronic,RCT,Alpha outback
- Support up to 32 units in parallel, scale from 5 kWh to 160 kWh configuration without external controller.
- Use DIP address to set the RS485 baud rate and inverter protocol choosing
- Includes: (1) RUiXU 48V Server Rack battery (RX-LFP48100), (1) RJ45/CAT5e Patch Cables, (1) Ground Cable, (1) Set of Parallel 4AWG Cables per battery
Your Satisfaction with RUiXU is Guaranteed:
- Lowest Price Guaranteed
- 10 Year Limited Warranty
