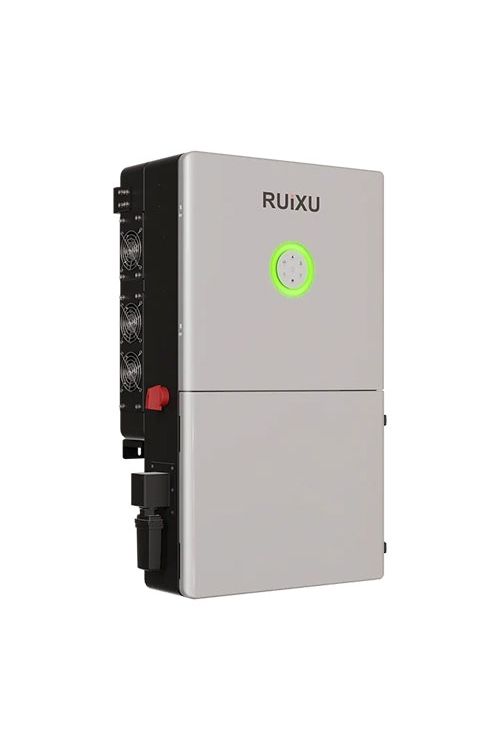

RUiXU RX-12K Split Phase Hybrid Inverter

Ruixu

$3,299.00
$3,299.00
In Stock — Ready to Ship
Free Shipping
Mfr. Warranty
Authorized Dealer
Easy Returns

Price Match Guarantee

Found it cheaper? Send us the link and we'll match or beat the price at any authorized retailer.

Email support@thegeneratorsdepot.com Chat Instant Live Chat
View full details

Product Details

RUiXU Split Phase Hybrid Inverter | RX-12K

The RUiXU RX-12K Split Phase Hybrid Inverter is a high-performance energy solution designed to seamlessly integrate solar power, battery storage, and grid energy. With its split-phase capability, it delivers up to 11.4 kW of continuous AC power at 240V, making it ideal for residential and light commercial applications.

Its advanced four-channel Maximum Power Point Tracking (MPPT) system allows for efficient solar energy harvesting, supporting up to 17.1 kW of photovoltaic input. The inverter also includes a built-in 200A transfer relay, enabling whole-home backup power during outages. Compatible with both lithium (LiFePO4) and lead-acid batteries, it provides a flexible and scalable approach to energy management. Designed for durability and ease of installation, the RX-12K features an IP65-rated enclosure, making it suitable for both indoor and outdoor use.


It supports both grid-tied and off-grid operation, with an AC coupling function for retrofitting existing solar systems. The inverter is equipped with a rapid shutdown function for enhanced safety, as well as generator compatibility for additional backup power.

With its built-in uninterruptible power supply (UPS) functionality, it ensures a seamless transition between power sources, preventing interruptions to critical loads. The RUiXU RX-12K is a reliable and efficient choice for users seeking energy independence, grid resilience, and optimized solar utilization.

RUiXU RX-12K suitable for the US market split phase grid, photovoltaic input supports 1.5DC /AC ratio, battery input 48V flexible battery configuration, Up to 11.4kW output integrated 200A transfer Relay to support whole home backup power.

RUiXU Split Phase Hybrid Inverter

RUiXU RX-12K Hybrid Inverter Specs

  • Nominal Voltage: 380
  • Max DC Voltage: 600
  • Battery Type: Lead-acid or LiFePO4
  • Voltage Range: 40~60
  • Max. AC Current @240Vac: 52.3 A
  • Operating Temperature Range : -40°F~140°F
  • Dimensions: 30.7 in x 18.5 in x 10.2 in
  • Weight: 110 lbs
  • Includes: (1) RX-12K 12kW Inverter, (1) 200CM CAT6 Communcation cable connect with battery, (1) Operation manual, (1) Wifi dongle

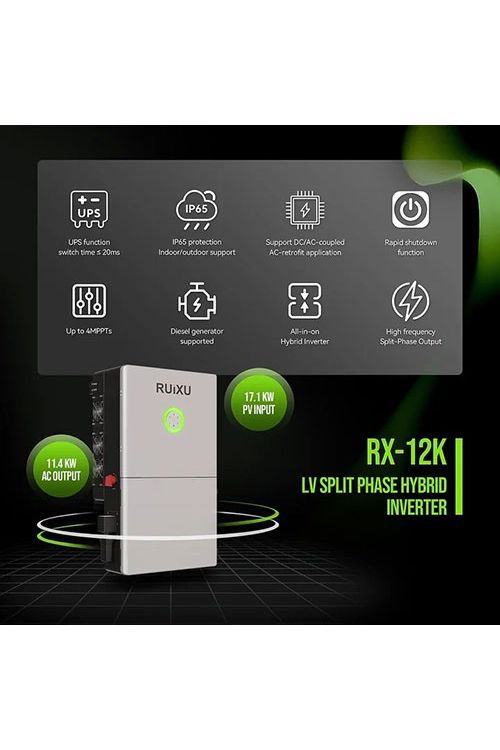

RUiXU RX-12K Hybrid Inverter Features

  • AC COUPLING CAPABILITY: Support to quickly retrofit existing solar systems (on-grid & off-grid)
  • ALL-IN-ONE HYBRID INVERTER: Capable of running entirely off the grid, using grid assist, or selling power back to the grid.
  • HIGH FREQUENCY, SPLIT-PHASE OUTPUT: Allows for 120/240V single unit or 120/208 service operation
  • GENERATOR-COMPATIBLE: Grid & diesel generator separately connected, support storing energy from diesel generator
  • HIGH OUTPUT POWER: Up to 11.4kW output intergrated 200A transfer Relay , support whole home backup power.
  • IP65: IP65 protection,support indoor and outdoor installlation.
  • MULTIPLE BATTERY COMPATIBILITY: Lithium battery and lead acid battery compatibility.
  • MPPT: Up to 4MPPTs.
  • UPS: With UPS function switch time ≤ 20ms.

Your Satisfaction with RUiXU is Guaranteed:

  • 10-Year Limited Warranty
  • Lowest Price Guarantee
