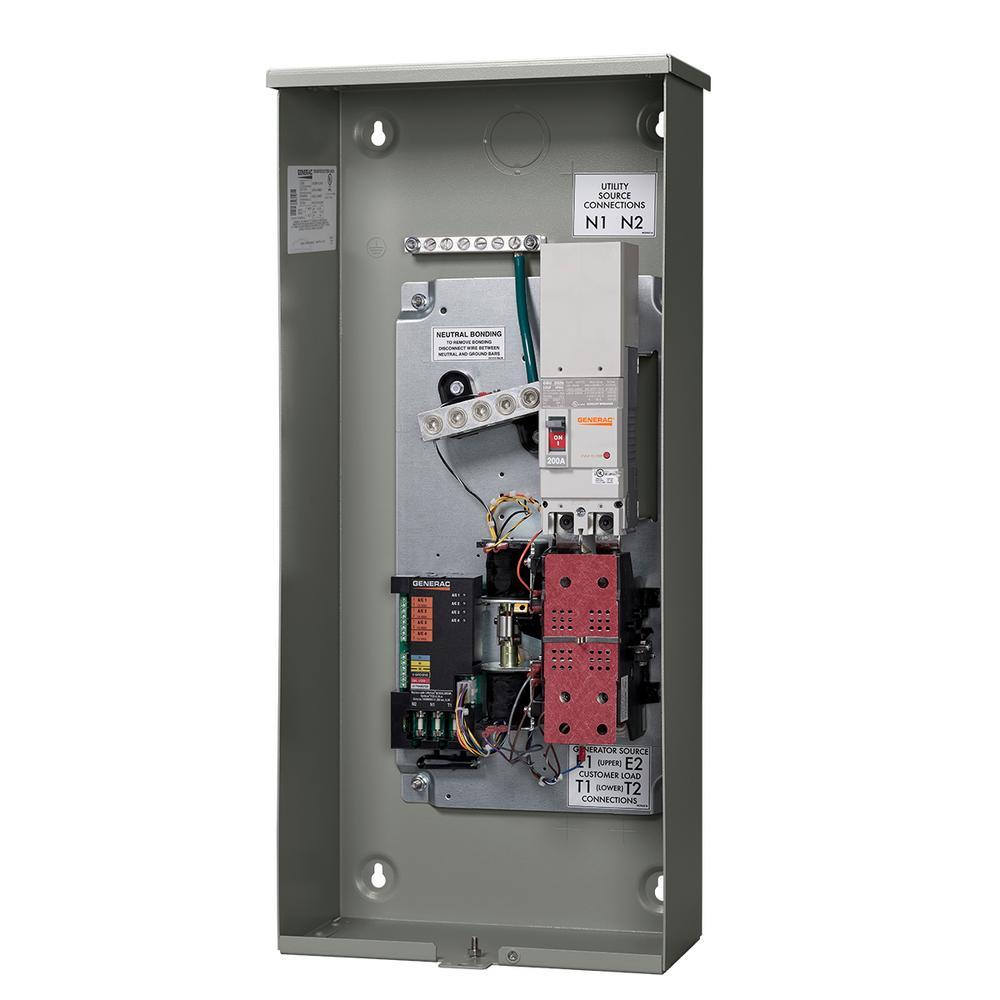

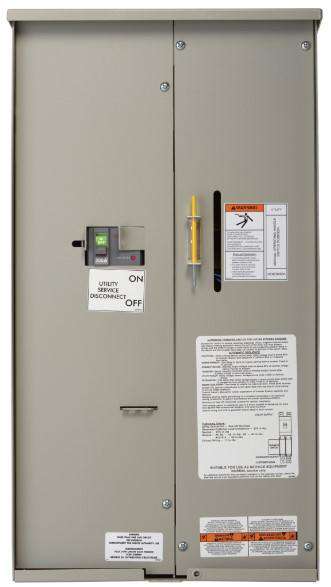

Generac RXSW150A3 150 Amp Service Entrance Rated Automatic Transfer Switch New

Generac

$769.00
$769.00
In Stock — Ready to Ship
Free Shipping
Mfr. Warranty
Authorized Dealer
Easy Returns

Price Match Guarantee

Found it cheaper? Send us the link and we'll match or beat the price at any authorized retailer.

View full details

Product Details

The Generac Smart Switch is the most intelligent transfer switch on the market. Engineered with Generac’s patented Digital Power Management (DPM) technology, it allows for more coverage with a smaller generator through smart load management. This advanced power management technology is standard, unlike competitive models that require additional hardware and investment to add a power management option.

Generac Smart Switches are designed for use with single phase 120/240V generators that utilize an Evolution Controller. This 150 amp, open transition, service rated automatic transfer switch is housed in an aluminum NEMA/UL Type 3R enclosure, with electrostatically applied and baked powder paint.

Through the use of Digital Power Management technology (DPM), each of these switches has the capability to truly manage two air conditioning loads with no additional hardware. When used in tandem with the Power Management Module (PMM) starter kit, individual PMMs can be use to intelligently manage up to four more additional loads.

Overview (Right Column)
5 year factory warranty
NEMA 150a Transfer Switch
Brand new in box
Ships directly from Generac
Authorized Generac dealer

 Outlets
Features (Left Column)
  • Able to manage 4 individual HVAC loads with no additional hardware
  • Designed for use with single-phase generators that utilize an Evolution or Nexus Controller
  • Aluminum NEMA/UL Type 3R (indoor-outdoor) enclosure with electrostatically applied and baked power paint provides additional corrosion protection
Features (Right Column)
  • Gain even more flexibility when used in tandem with Smart Management Modules
  • Smart A/C Module manages loads by shedding the connected loads in the event of a drop in generator frequency (overload)
Product Specifications (Left Column)
Manufacturer Generac
Voltage 120/240-Volts Single Phase
Enclosure Aluminum NEMA 3R
Type Automatic Transfer Switch
Dimensions 13.5W X 6.3"H X 30"L
Weight 39 lbs.
Product Specifications (Right Column)
Model RXSW150A3
Switch Amps 150
Switch Circuits Whole House Switch
ATS Poles 2
Consumer Warranty 5-Year Limited Warranty ATS
WARRANTY

This item comes with a 5 year factory warranty.
