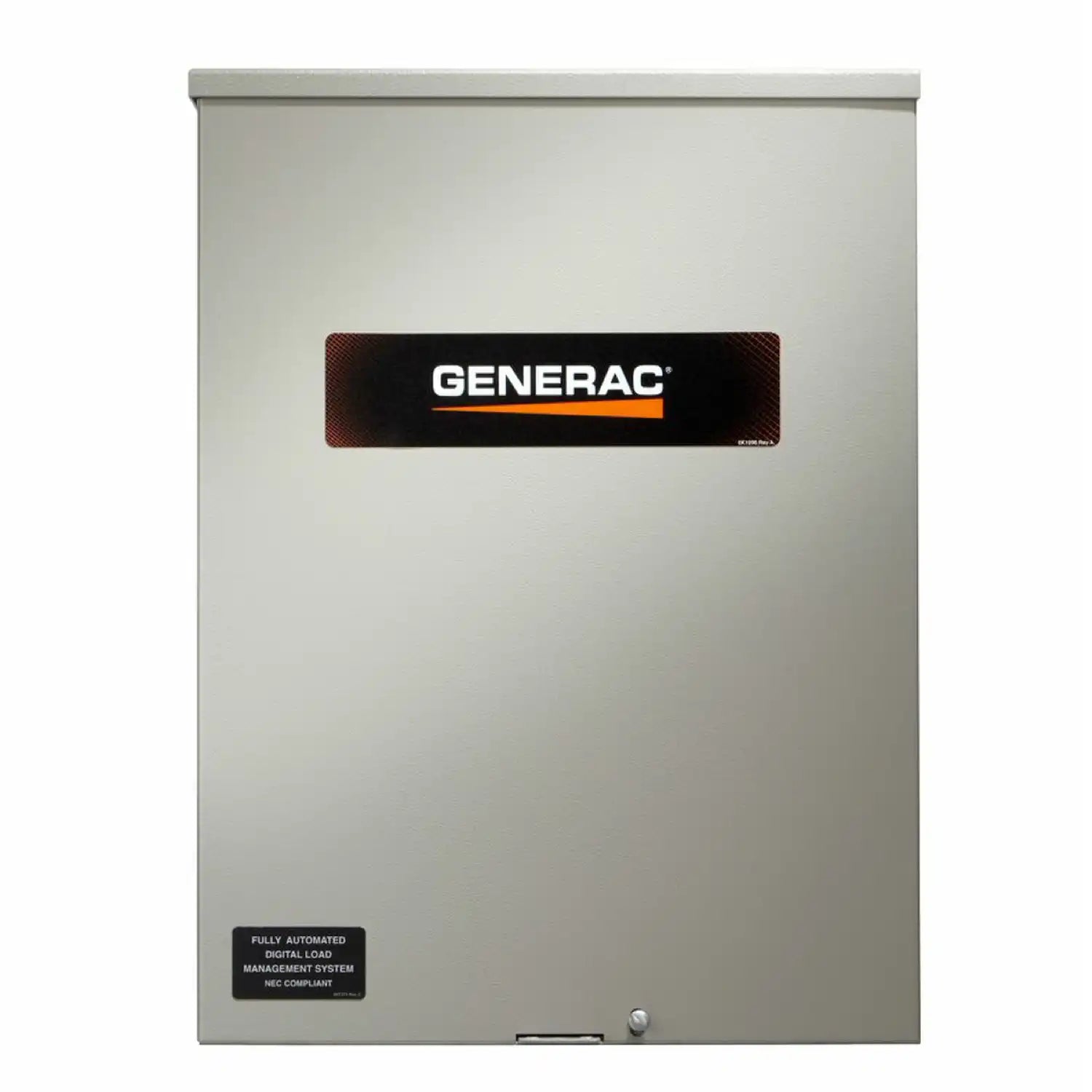

Generac RXSW100A3 100 Amp Service Entrance Rated Automatic Transfer Switch New

Generac

$559.00
$559.00
In Stock — Ready to Ship
Free Shipping
Mfr. Warranty
Authorized Dealer
Easy Returns

Price Match Guarantee

Found it cheaper? Send us the link and we'll match or beat the price at any authorized retailer.

Email support@thegeneratorsdepot.com Chat Instant Live Chat
View full details

Product Details

Generac Automatic Transfer Switches are designed for use with single phase generators that utilize an Evolution or Nexus Controller. The 100-Amp open transition switch is available in single phase with a service equipment rated configurations. Through the use of digital power technology (DPM), these switches have the capability to manage up to 4 individual HVAC (24 VAC controlled) loads with no additional hardware.
Overview (Right Column)
5 year factory warranty
NEMA 100a Transfer Switch
Brand new in box
Ships directly from Generac
Authorized Generac dealer

 Outlets
Features (Left Column)
  • Designed for use with single-phase generators that utilize an Evolution or Nexus Controller
  • Aluminum NEMA/UL Type 3R (indoor-outdoor) enclosure with electrostatically applied and baked power paint provides additional corrosion protection
Features (Right Column)
  • Gain even more flexibility when used in tandem with Smart Management Modules
  • Smart A/C Module manages loads by shedding the connected loads in the event of a drop in generator frequency (overload)
Product Specifications (Left Column)
Manufacturer Generac
UL Listed
 Yes
Voltage 120/240 - Single Phase
Enclosure Aluminum NEMA 3R
Type Automatic Transfer Switch
Dimensions 20"L X 14.6"W X 7"H
Weight 22.5 lbs.
Product Specifications (Right Column)
Model RXSW100A3
Switch Amps 100
Switch Circuits Whole House Switch
ATS Poles 2
Consumer Warranty 5-Year Limited Warranty ATS
WARRANTY

This item comes with a 5 year factory warranty.
