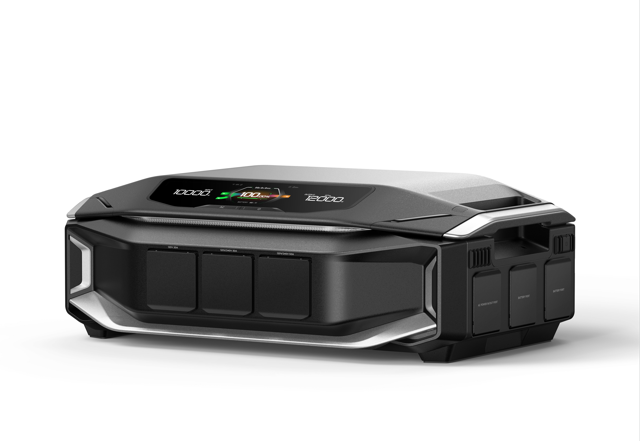

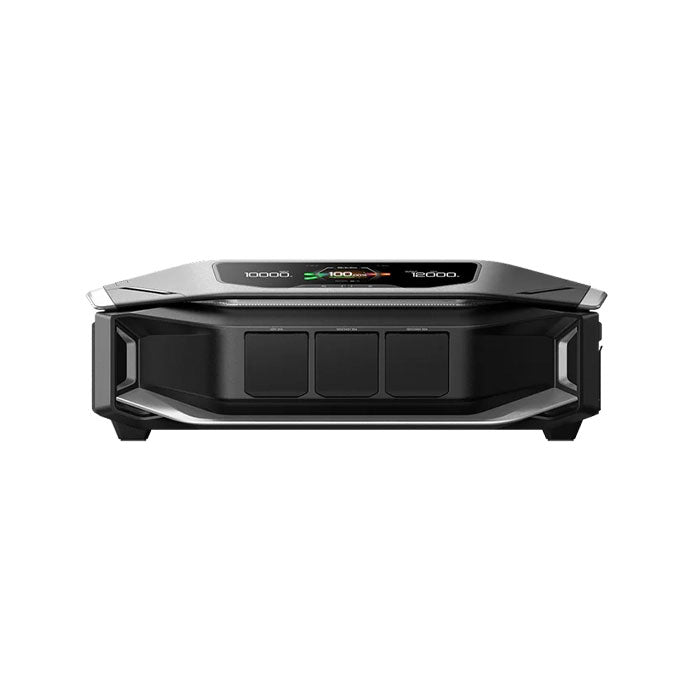

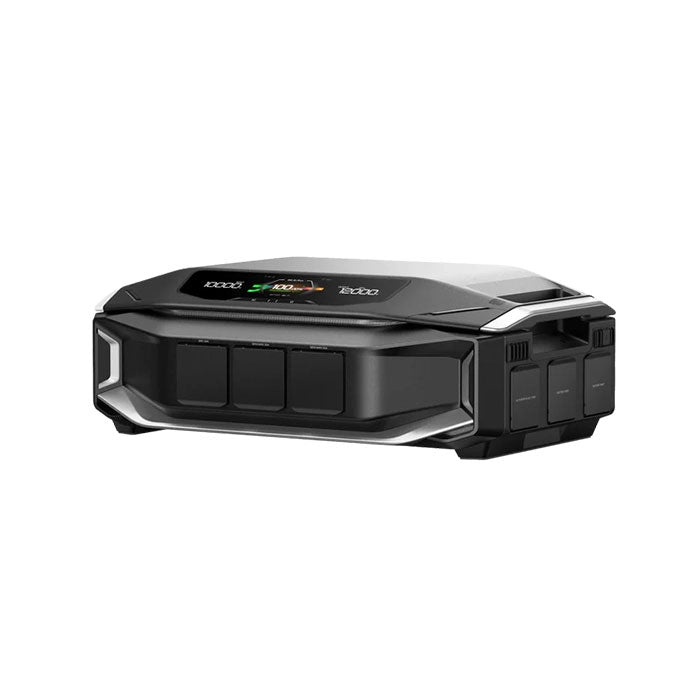

Ecoflow DELTA Pro Ultra X Inverter

EcoFlow DELTA Pro Ultra X

Whole-Home Power. Unbound.

12–36kW Output

High Power. High IQ.

DELTA Pro Ultra X scales from 12 to 36kW. With a new Adaptive Start algorithm, it intelligently identifies connected appliances and tailors startup for each, seamlessly handling surges up to 45kW and high-demand appliances like a 5-ton AC.

Get Through Any Outage

12–180kWh Capacity, Power That Lasts

Start with 12kWh. Scale instantly to 180kWh
with up to 30 plug-in expansion batteries, no tools, no hassle. Power grows with your needs.

The wide-body inverter and battery are a stand-alone, off-grid unit, no wall mounting required. Its flexible design allows for faster, simpler approval than grid-tied systems. The exclusive quick-connect makes plug-and-play with the Smart Home Panel 3 or Smart Gateway effortless.

Energy That Can Move With You

DIY Solar + Plug-and-Play Batteries

Smart & Reliable When It Matters Most

Auto-Recharging · 20ms Auto Switchover · 32 Circuits · Intelligent Control

Your 24/7 Money Saver

Here's a Typical Day of Savings

Day and night, the system intelligently shifts between solar, storage, and off-peak rates, maximizing every watt to get you the best deal. Here's what that might look like on a typical day of use.

Compatible with Existing Rooftop Solar

No Wasted Watts

With the EcoFlow Current Sense Transformer, every extra watt is redirected to your DELTA Pro Ultra X Smart Extra battery, never wasted or sold back to the grid for pennies.

The Highest Safety
Standards

The first EV-grade full-tab cells deliver higher capacity with lower resistance, less heat, and longer-lasting performance. 25% More Efficient power flow (thanks to lower resistance: 1.5 mΩ vs. 2 mΩ) 25% Less Self-Heating

What's in the box?

Specs

Standard Capacity

12.288kWh, 6144Wh x 2

Maximum Capacity with 1 inverter

61.440kWh, 6144Wh x 10

AC Output

12kW, 120/240V, 60Hz

Up to 36kW in 3 parallel units

Maximum Capacity with 3 inverters

184.32kWh, 6144Wh x 30

Net Weight (lb)

Inverter: 34.5±0.2kg（70.06±0.44 lb）

Battery: 50.5±0.2kg（111.3±0.44 lb）

Dimension (mm)

Inverter: 675 × 475 × 230 mm (26.6 × 18.7 × 9.06 in.)

Battery：660 × 455 × 204 mm (26 × 18 × 8 in.)

Battery Chemistry

LFP

Warranty

5 years

Screen

✓

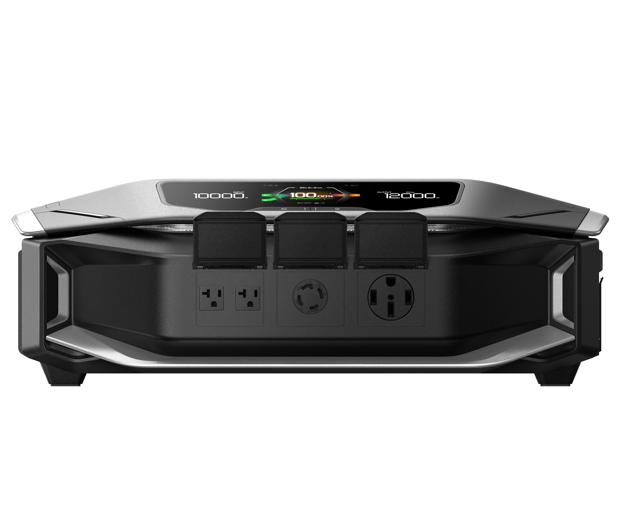

AC Outlets

NEMA 5-20 (x2) 120V 20A

NEMA L14-30 (x1) 120/240V 30A

NEMA 14-50 (x1) 120/240V 50A

UPS

<10ms standalone, <20ms with Smart Home Panel 3

Rated AC Input Power

12kW,100/200-120/240V, 50A

DC Input

Total 10kW, 2 ports

80-500V/15A, 5000W Max Each

Noise Level

Noise level <30 dB at 0.5 m (ambient temperature 25 °C, 4 kW output)

IP Rating

IP54

Battery Temperature

Operating & Storage temp: −4°F to 113°F (−20°C to 45°C)

Inverter Temperature

Operating & Storage temp: −4°F to 122°F (−20°C to 50°C)

FAQ

Is Delta Pro Ultra X inverter compatible with Smart Home Panel 2?

No, you should use Smart Home Panel 3.

Can I plug in my Delta pro Ultra inverter with the Smart Home Panel 3?

Currently, it only supports connecting the DELTA Pro Ultra X via the EcoFlow Smart Inlet Box Connection Cable (5P8 Port to 5P8 Port) or connecting the DELTA Pro Ultra to the Smart Inlet Box (Smart Home Panel 2 Upgrade) via the EcoFlow Power Input/Output Cable. You can also connect the DELTA Pro Ultra X and the DELTA Pro Ultra simultaneously using the cables that meet the corresponding requirements. Currently, it does not support connecting the DELTA Pro 3. For future updates, please refer to the official information.

Are Delta Pro Ultra batteries working with the new Delta Pro Ultra X inverter?

Yes they are, make sure to follow Ecoflow’s instructions while installing them.
